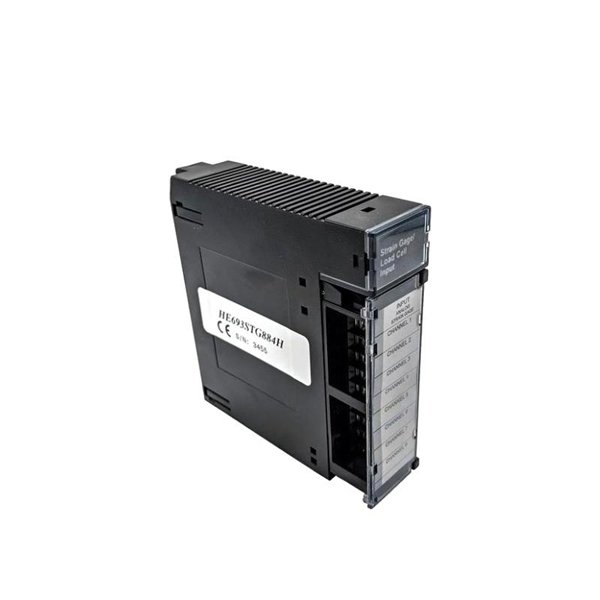

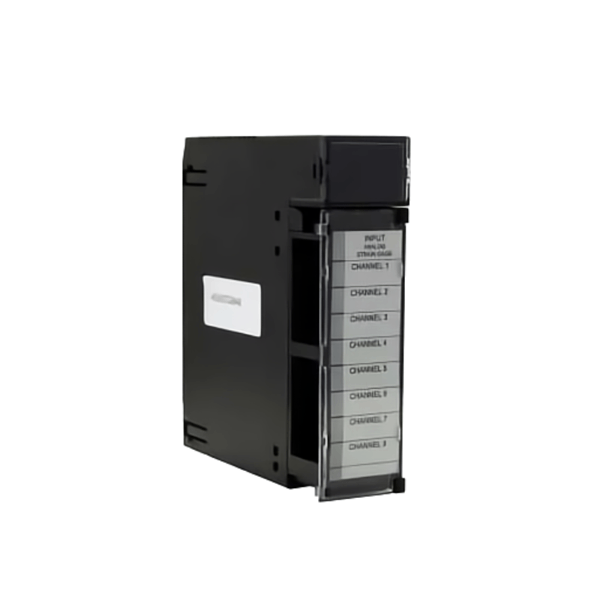

General Electric HE693STG884 High Resolution Strain Gauge Input Module

The GE HE693STG884 High Resolution Strain Gauge Input Module is a specialized input module designed for precise measurement and monitoring of strain gauge signals in industrial automation systems. It is part of GE’s Genius I/O system and is optimized for high-accuracy measurements in environments requiring precise force, weight, or pressure measurements. The HE693STG884 module is widely used in applications where accurate and reliable strain measurements are critical, including structural monitoring, load cells, and pressure transducers.

The HE693STG884 module provides high-resolution digital inputs, allowing it to interface with strain gauges, load cells, and pressure sensors to convert the analog signals into digital data for further processing by a central control system. This makes it essential in systems that require precise measurements to ensure safety, performance, and reliability in industrial processes.

The module supports various input configurations, such as full bridge, half bridge, and quarter bridge, and offers programmable excitation voltage options to suit a wide range of strain gauge types. Its high resolution ensures that even the smallest changes in strain are detected, making it ideal for highly sensitive applications.

Product Specifications

Product Applications

The GE HE693STG884 High Resolution Strain Gauge Input Module is used in various industrial applications where precise measurement of strain is crucial. Some common applications include:

1. Load Cells: The module is used to interface with load cells in weight measurement systems, including scales for industrial weighing and process control.

2. Pressure Transducers: It connects to pressure transducers to provide accurate pressure readings, used in industries like oil and gas, water treatment, and HVAC.

3. Structural Monitoring: The module helps in monitoring the strain in structures such as bridges, dams, and buildings, ensuring safety and integrity.

4. Force Measurement: Used in manufacturing to measure force exerted during production processes, such as testing material strength and product quality.

5. Industrial Automation: Integrated into factory automation systems to measure forces, pressure, and strain on various machines and equipment, ensuring smooth operation.

6. Test and Measurement Systems: The HE693STG884 is suitable for testing applications that require high-precision measurements, including research and development.

7. Aerospace and Automotive Industries: It is used for testing and monitoring components that undergo stress and strain, ensuring product reliability and safety.

8. Energy and Power Generation: In power plants and substations, it is used for monitoring pressure and force on valves, pipes, and turbines.

Product Advantages

1. High Precision: The HE693STG884 offers 16-bit digital resolution, ensuring precise measurements of even the smallest strain signals, ideal for critical applications where accuracy is paramount.

2. Flexible Input Configurations: It supports various bridge configurations, such as full, half, and quarter bridge, making it compatible with a wide range of strain gauges and transducers.

3. Programmable Excitation Voltage: The excitation voltage is programmable from 2.5 V to 10 V, providing flexibility to suit different sensor types.

4. Wide Operating Temperature Range: With an operating temperature range of -40°C to +70°C, the module is suitable for use in harsh industrial environments, including outdoor and extreme temperature conditions.

5. Compact and Durable Design: The module’s compact size (90 mm x 130 mm x 40 mm) and robust construction allow for easy integration and long-term reliability in various applications.

6. Easy Integration: Fully compatible with GE’s Genius I/O systems, the HE693STG884 can be easily integrated into existing automation systems without the need for extensive modifications.

7. Signal Conditioning Features: It includes programmable gain, filtering, and offset correction, allowing for customization to suit specific measurement needs.

8. High Input Impedance: The module features a high input impedance of 1 MΩ, which ensures minimal signal distortion and allows for accurate data collection.

9. Energy Efficiency: Powered by a 24 VDC supply, the HE693STG884 offers low energy consumption, making it cost-effective for long-term operations.

10. Versatility: The module can be used with a variety of strain gauges, making it highly versatile for different types of measurements across industries.

Frequently Asked Questions (FAQ)

1. What is the primary function of the GE HE693STG884 module?

   The HE693STG884 is designed to interface with strain gauges, load cells, and pressure sensors, converting analog signals to digital data for precise monitoring of strain, force, or pressure in industrial systems.

2. What type of strain gauges does the HE693STG884 support?

   The module supports full, half, and quarter bridge configurations, providing flexibility to work with a variety of strain gauges and sensors.

3. What is the resolution of the HE693STG884?

   The module offers 16-bit digital resolution, allowing for high-precision measurements even for small variations in strain.

4. What is the excitation voltage range of the HE693STG884?

   The excitation voltage is programmable and can be set from 2.5 V to 10 V, making it adaptable for different types of strain gauges.

5. What industries use the GE HE693STG884?

   This module is widely used in industries such as oil and gas, manufacturing, aerospace, automotive, and energy for precise measurement and monitoring of forces, pressure, and strain.

6. What is the operating temperature range of the HE693STG884?

   The module operates within a temperature range of -40°C to +70°C, suitable for use in harsh environments.

7. How is the GE HE693STG884 powered?

   It operates on a 24 VDC power supply, which is commonly used in industrial automation systems.

8. How many inputs does the HE693STG884 have?

   The module has 8 differential inputs, allowing it to connect multiple strain gauges or sensors simultaneously.

9. Can the GE HE693STG884 be mounted on a DIN rail?

   Yes, the HE693STG884 is designed for easy mounting on a DIN rail, making installation straightforward and convenient.

10. What are the signal conditioning features of the HE693STG884?

    The module offers programmable gain, filtering, and offset correction, allowing for customization based on specific measurement needs.
