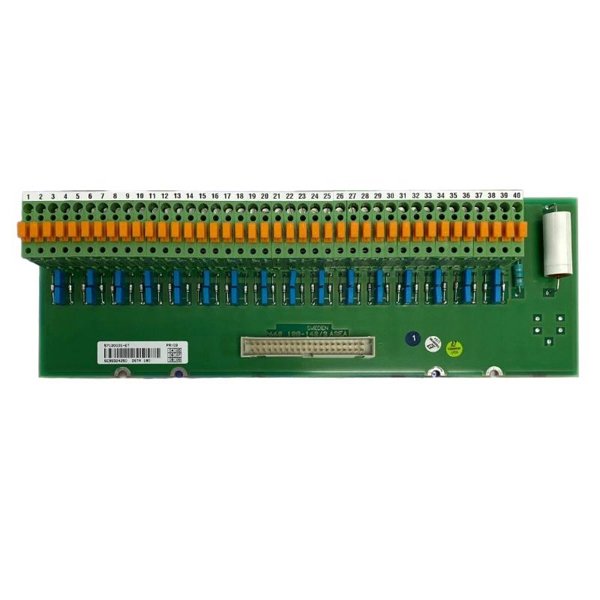

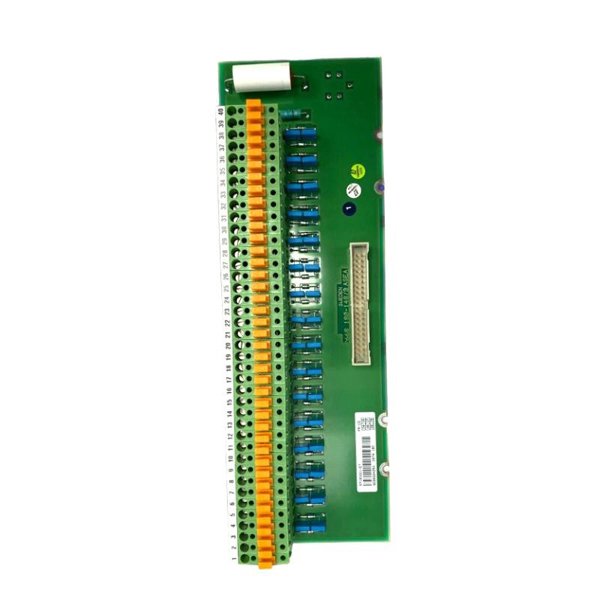

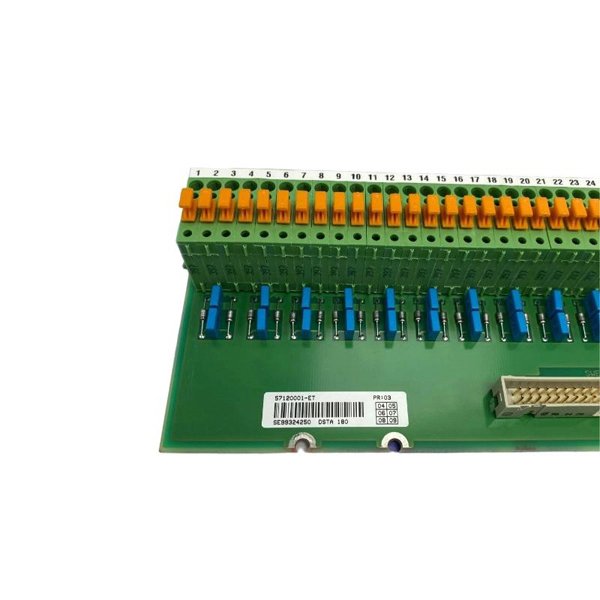

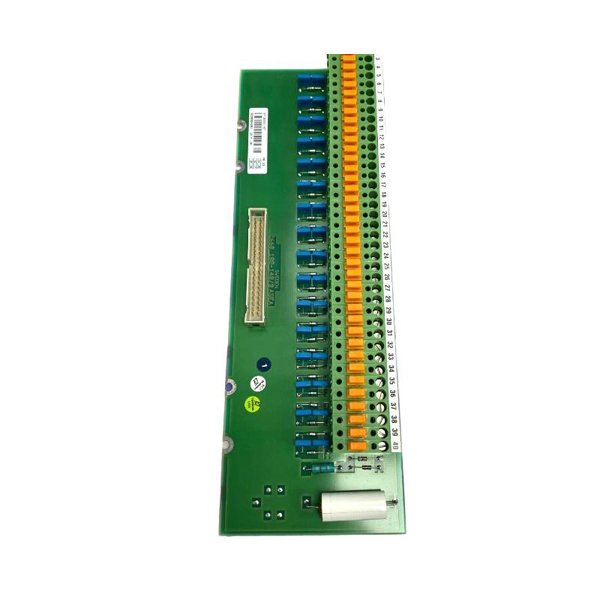

ABB DSTA 180 57120001-ET Connection Unit

The ABB DSTA 180 57120001-ET is a robust and high-performance connection unit developed for use within ABB’s Advant Master distributed control systems (DCS). Known for its exceptional reliability and secure signal interfacing, this unit acts as a key component in integrating field devices with control logic layers.

It is designed to support demanding industrial environments where precision, stability, and system integrity are critical. The DSTA 180 simplifies the wiring process while ensuring safe signal handling for both analog and digital channels. Equipped with terminal blocks and advanced diagnostics, the unit streamlines field wiring and improves operational efficiency.

Suitable for both retrofit and new installations, the DSTA 180 offers a high degree of compatibility with ABB’s legacy and current automation platforms, making it an indispensable part of automation infrastructure across multiple industries.

Technical Specifications

Product Applications

The ABB DSTA 180 is widely adopted in industrial sectors that require dependable automation and signal management. Its primary applications include:

• Power Generation Facilities: Interfaces with turbines, transformers, and control rooms.

• Oil & Gas Operations: Connects sensors, actuators, and PLCs in hazardous zones.

• Water & Wastewater Plants: Supports real-time monitoring and distributed control.

• Chemical Processing Plants: Enables safe and stable transmission of analog and digital signals under harsh chemical conditions.

• Pharmaceutical Production: Ensures clean integration with validated DCS environments.

• Pulp & Paper Industry: Handles multiple I/O configurations for process control and monitoring.

Product Advantages

• Strong System Integration: Fully compatible with ABB Advant Master DCS systems.

• Durable and Rugged Design: Built with high-grade materials for long-term industrial operation.

• Efficient Signal Routing: Organizes field wiring effectively to reduce errors and downtime.

• Easy Installation and Commissioning: Pre-marked terminals simplify configuration in complex cabinets.

• Onboard Diagnostics: LED indicators offer visual feedback for signal status and fault detection.

• Wide Environmental Tolerance: Operates reliably in both hot and cold environments with high humidity.

• Field-Proven Reliability: Trusted in mission-critical applications globally.

• Minimal Maintenance: Passive design with no moving parts results in low failure rate.

• Modular Configuration: Works seamlessly with various I/O modules and system layouts.

Frequently Asked Questions (FAQ)

1. What systems is the DSTA 180 compatible with?

The DSTA 180 is designed for use with ABB’s Advant Master DCS. It integrates smoothly with associated I/O modules and controllers in that platform.

2. Does the DSTA 180 support both analog and digital signals?

Yes, it supports the transmission of both analog and digital signals, allowing flexibility in wiring and device integration.

3. Is the DSTA 180 suitable for harsh industrial environments?

Yes, the unit is built with industrial-grade materials and can operate in challenging conditions, including high humidity and wide temperature ranges.

4. What type of terminal connection does the unit use?

It features screw-type terminal blocks, which provide secure and vibration-resistant wiring connections.

5. Does the DSTA 180 include diagnostic indicators?

Yes, it is equipped with LED indicators that provide real-time feedback on signal activity and system status.

6. Is any software required to configure the DSTA 180?

No additional software is required for the unit itself. Configuration is managed through the DCS it connects to.

7. How is the unit typically mounted?

The DSTA 180 can be mounted on a DIN rail or directly onto a panel, depending on cabinet design and user preference.

8. Can the DSTA 180 be replaced while the system is running?

In many cases, yes. With proper safety protocols, the unit can be replaced with minimal disruption to system operation.

9. What industries commonly use this unit?

The DSTA 180 is widely used in power plants, oil and gas facilities, water treatment stations, and chemical manufacturing.

10. What are the long-term maintenance requirements?

The unit is largely maintenance-free due to its passive design. Regular inspections for terminal integrity are generally sufficient.
