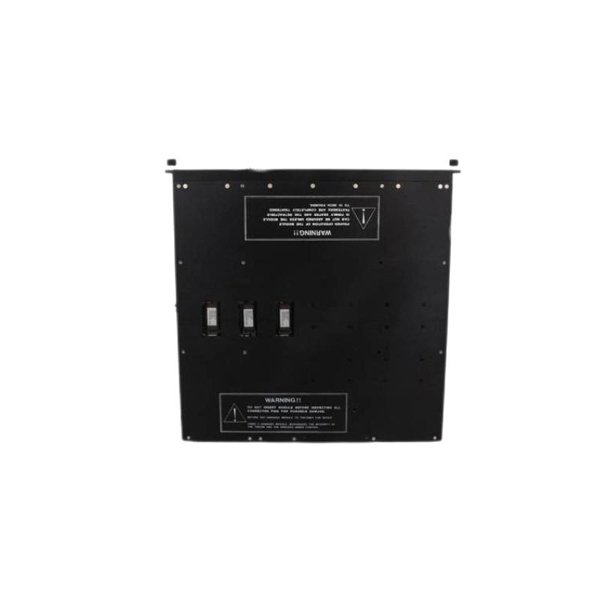

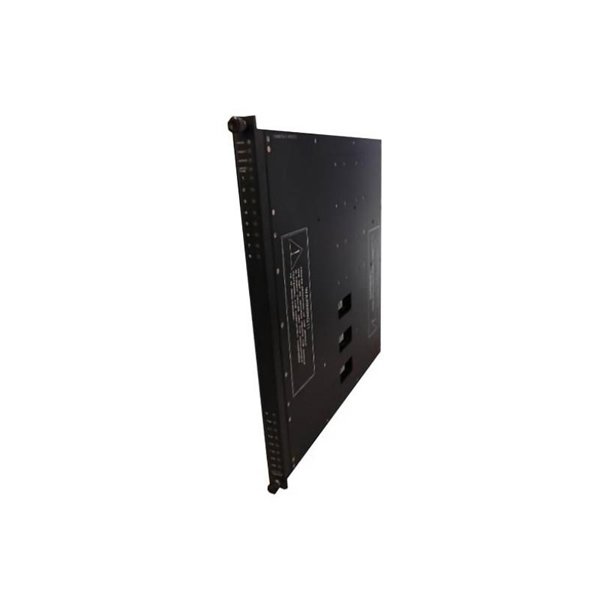

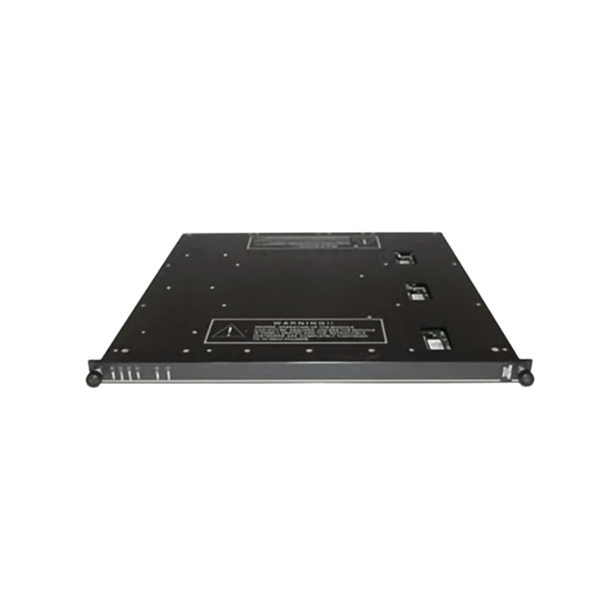

Triconex 3604E Digital Output Module

The Triconex 3604E Digital Output Module is a high-performance output module specifically designed for use within the Triconex Tricon™ safety and control system. It delivers critical on/off control signals from the safety controller to field devices such as solenoids, relays, motor starters, and indicators. Engineered for applications requiring the highest levels of safety, reliability, and deterministic control, the 3604E module meets stringent SIL3 requirements under IEC 61508 and is certified for use in safety instrumented systems (SIS).

Designed for redundancy and fault tolerance, the 3604E incorporates Triple Modular Redundancy (TMR) architecture and is ideal for industries such as oil & gas, chemical processing, nuclear power, and other mission-critical environments where failure is not an option.

Product Specifications

Product Applications

The Triconex 3604E is purpose-built for industrial applications requiring high availability and deterministic performance:

• Emergency Shutdown Systems (ESD)

• Fire & Gas Systems

• Turbomachinery Control (TMC)

• Burner Management Systems (BMS)

• High Integrity Pressure Protection Systems (HIPPS)

• Nuclear Safety Control Systems

• Pipeline Control Systems

• Refinery and Chemical Plant Automation

Its high-reliability design makes it especially suitable for critical infrastructure in hazardous environments where failure can result in significant financial loss or environmental damage.

Product Advantages

• SIL3 Certified: Meets international standards for functional safety.

• Triple Modular Redundancy: Ensures continuous operation even during component failure.

• Hot Swappable: Modules can be replaced without stopping the system, reducing downtime.

• Advanced Diagnostics: Integrated self-test and per-channel diagnostics simplify troubleshooting.

• High Channel Density: 32 channels per module maximize I/O capacity within a compact footprint.

• Isolated Outputs: Prevent cross-channel interference and improve system robustness.

• Extended Environmental Range: Withstands harsh industrial environments.

• Flexible Integration: Seamless compatibility with Tricon mainframes and communication modules.

FAQ

1. Q: What is the primary function of the Triconex 3604E module?

   A: It provides 32 solid-state digital output channels to control field devices in critical safety systems.

2. Q: Is the 3604E certified for safety applications?

   A: Yes, it is certified for SIL3 safety applications under IEC 61508 standards.

3. Q: Can the 3604E be hot-swapped during operation?

   A: Yes, the module supports hot-swapping without interrupting system operation.

4. Q: What kind of output does the module provide?

   A: It offers sourcing (positive logic) DC outputs using solid-state switches.

5. Q: How many channels does the module support?

   A: It provides 32 discrete digital output channels.

6. Q: What diagnostic capabilities does it have?

   A: It features built-in self-diagnostics, including individual channel fault detection.

7. Q: What are the isolation characteristics of the module?

   A: Each channel is electrically isolated from the others and from the system backplane.

8. Q: In which environments can this module operate?

   A: It operates in a temperature range of -20°C to +60°C and is designed for harsh environments.

9. Q: Is it compatible with other Triconex systems?

   A: Yes, it integrates seamlessly with Triconex controllers and chassis.

10. Q: What types of field devices can it control?

    A: It can control solenoids, lights, relays, contactors, and other discrete devices.
