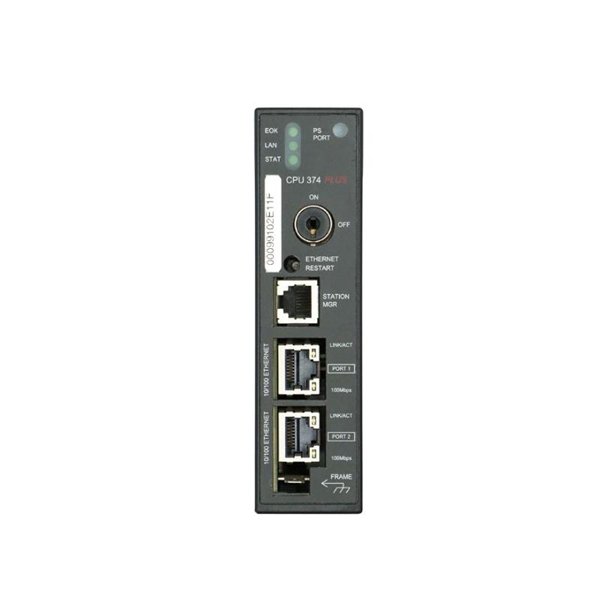

General Electric IC693CPU374-KZ Single Slot CPU Module

The GE IC693CPU374-KZ is a high-performance CPU module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This single-slot module integrates a powerful 133 MHz processor and an embedded Ethernet interface, facilitating efficient and reliable control for a wide range of industrial automation applications. With 240 KB of configurable user memory, the IC693CPU374-KZ is capable of handling complex control tasks and large programs, making it a versatile choice for various industries.

The embedded Ethernet interface supports communication speeds of up to 100 Mbps and includes a built-in switch, allowing seamless integration into existing network infrastructures. This enables real-time data exchange between the PLC and other networked devices, enhancing system responsiveness and coordination.

Technical Specifications

Applications

The GE IC693CPU374-KZ is suitable for a wide range of industrial automation applications, including but not limited to:

• Manufacturing Process Control: Manages complex manufacturing processes, ensuring precision and efficiency.

• Material Handling Systems: Controls conveyors, robotic arms, and sorting systems for streamlined operations.

• Energy Management: Monitors and controls energy distribution systems to optimize usage and reduce waste.

• Water and Wastewater Treatment: Automates treatment processes, ensuring compliance with environmental standards.

• Building Automation: Integrates various building systems such as HVAC, lighting, and security for centralized control.

• Transportation Systems: Oversees operations of automated guided vehicles (AGVs) and other transport mechanisms within facilities.

Product Advantages

• High Processing Power: The 133 MHz processor enables fast execution of control algorithms, reducing cycle times and enhancing system performance.

• Embedded Ethernet Interface: Facilitates high-speed communication and easy integration into existing network infrastructures without the need for additional hardware.

• Scalable Memory: 240 KB of configurable user memory allows for flexibility in program design and the ability to handle complex control tasks.

• Compact Design: Occupies a single slot in the PLC rack, conserving space and allowing for more efficient system layouts.

• Reliable Battery Backup: Offers internal and optional external battery options to maintain system operation during power interruptions, ensuring data integrity and system reliability.

• Support for Multiple Protocols: Compatibility with SRTP, Ethernet Global Data, and Modbus TCP protocols enables communication with a wide range of devices and systems.

• Floating Point Math Support: Enhances the module’s capability to perform complex mathematical calculations required in advanced control applications.

Frequently Asked Questions (FAQ)

1. Q: What is the processor speed of the IC693CPU374-KZ module?

   A: The module features a 133 MHz processor, providing high-speed processing capabilities.

2. Q: How much user memory is available in the IC693CPU374-KZ?

   A: It offers 240 KB of configurable user memory for program storage and execution.

3. Q: Does the IC693CPU374-KZ have an embedded Ethernet interface?

   A: Yes, it includes an embedded Ethernet interface with a built-in switch, supporting 10/100 Mbps communication speeds.

4. Q: What communication protocols are supported by the IC693CPU374-KZ?

   A: The module supports SRTP, Ethernet Global Data, and Modbus TCP (client/server) protocols.

5. Q: Are there any serial ports available on the IC693CPU374-KZ?

   A: No, this module does not include any serial ports.

6. Q: What is the power consumption of the IC693CPU374-KZ module?

   A: The module consumes approximately 7.4 Watts of power.

7. Q: How long does the internal battery backup last?

   A: The internal battery can provide backup power for up to 1.2 months. An optional external battery can extend this up to 12 months.

8. Q: What are the operating temperature ranges for the IC693CPU374-KZ?

   A: The module operates within a temperature range of 0°C to 60°C.

9. Q: What are the dimensions and weight of the IC693CPU374-KZ module?

   A: The module measures 100 x 38 x 80 mm, with a weight of 0.5 kg.

10. Q: Does the IC693CPU374-KZ support floating-point math operations?

    A: Yes, the CPU is equipped with hardware support for floating-point arithmetic, essential for advanced control logic and calculations.
