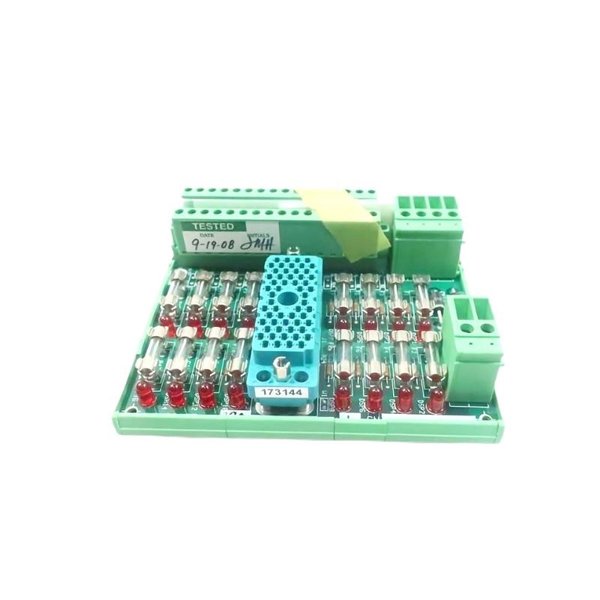

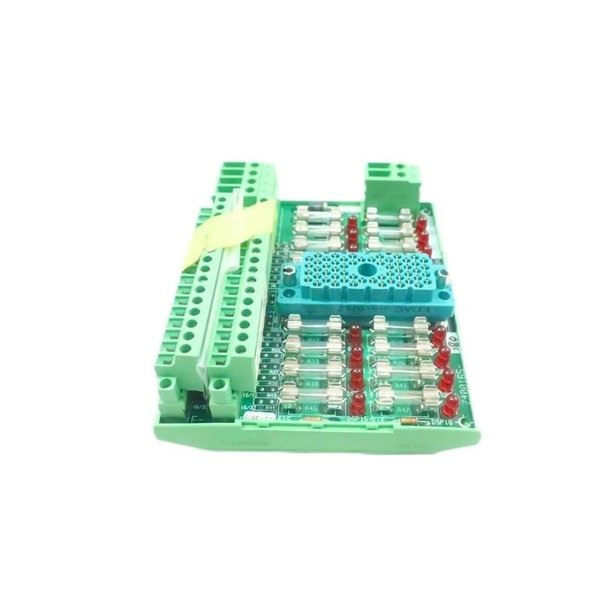

Triconex 9543-810 7400165-380 Digital Input Termination Panel

The Triconex 9543-810 (7400165-380) Digital Input Termination Panel is a specialized industrial component used within Triconex safety systems for the purpose of digital signal interfacing. Specifically designed to provide a secure and organized connection interface between digital field inputs and the Tricon main chassis, this termination panel ensures reliability, maintainability, and ease of installation in high-integrity control systems.

It is typically mounted in control cabinets and supports a structured wiring scheme, which is critical in safety instrumented systems (SIS) across industries like oil & gas, power generation, petrochemical, and more. The panel works seamlessly with Triconex digital input modules to translate field-level signals into logic-level instructions used for critical system operations.

Product Specifications

Product Applications

The Triconex 9543-810 Digital Input Termination Panel is widely used in mission-critical environments where safety and control reliability are paramount:

• Oil & Gas Facilities – For input signal routing from pressure, temperature, and limit switches in offshore and onshore safety systems.

• Power Plants – Used in turbine and boiler safety shutdown systems to monitor discrete inputs.

• Chemical & Petrochemical Plants – Integration with hazardous environment instrumentation where logic safety is essential.

• Water Treatment Plants – For safety and environmental compliance monitoring.

• Manufacturing Automation – Provides structured input signal management in safety-critical manufacturing lines.

• Nuclear Power Facilities – High-integrity I/O management under strict safety protocols.

Product Advantages

• Robust Safety Integration: Designed to work with Triconex SIL 3-certified systems, providing unmatched reliability in safety-critical applications.

• Ease of Maintenance: Screw terminals and structured wiring allow easy field maintenance and troubleshooting without system shutdown.

• Compact and Modular Design: Occupies minimal space in control cabinets while handling high channel counts.

• EMI/RFI Shielding: Enhanced electromagnetic compatibility ensures clean signal transmission in noisy industrial environments.

• Universal Compatibility: Works with a wide range of digital input types and field devices.

• Cost-Effective Wiring Scheme: Reduces wiring errors and maintenance costs through simplified connections.

• High Durability: Rugged construction enables operation under harsh industrial conditions.

Frequently Asked Questions (FAQ)

1. What is the main function of the Triconex 9543-810 termination panel?

   It provides a secure interface for connecting multiple digital input signals from field devices to the Tricon system.

2. How many channels can this panel support?

   The panel can support up to 32 digital input channels.

3. Is it compatible with all Triconex systems?

   It is specifically designed for use with the Tricon V10 and other compatible Triconex digital input modules.

4. What types of digital input signals are supported?

   It supports standard discrete signals such as dry contacts, open collectors, or 24V logic signals.

5. Can this panel be used in hazardous areas?

   Yes, it is suitable for use in ATEX Zone 2 and IECEx certified environments.

6. Is there any built-in diagnostics on the termination panel?

   No diagnostics are built into the panel itself; diagnostics are managed by the Tricon system.

7. Does it support redundancy?

   While the panel itself does not provide redundancy, it supports redundant system architectures when used with redundant input modules.

8. What is the warranty period?

   We provide one year warranty.

9. Can the panel be mounted in both vertical and horizontal orientations?

   Yes, the design supports flexible DIN rail or panel mounting orientations.

10. What maintenance is required?

    Routine visual inspections, torque checks on terminals, and occasional cleaning depending on environmental conditions.
