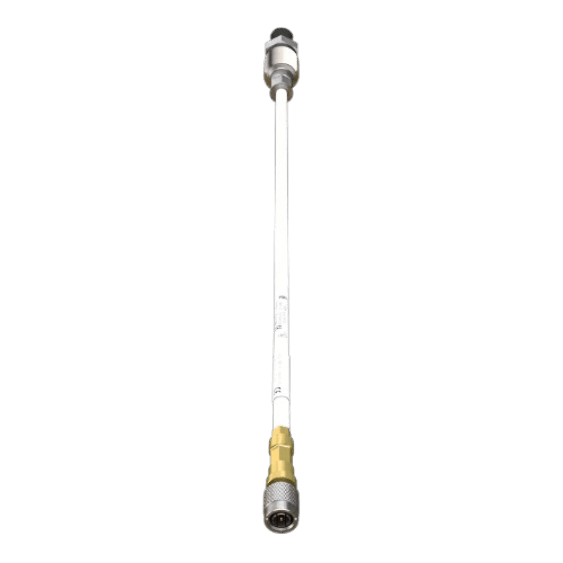

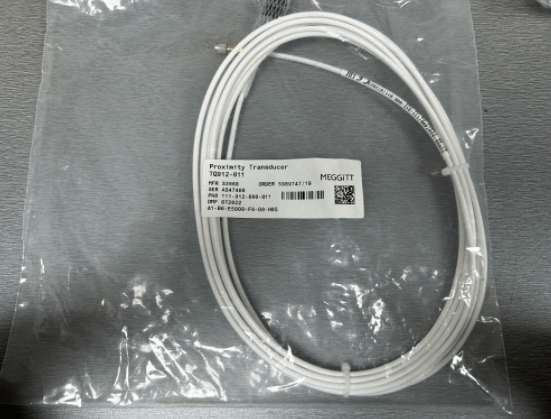

Meggitt TQ912-011 111-912-000-011 A1-B6-E5000-F0-G0-H05 Proximity Sensor
Item Number: TQ912-011 111-912-000-011 A1-B6-E5000-F0-G0-H05
Brand:Meggitt
Lead Time: In stock
Description: Proximity Sensor
Payment: T/T
Product Description
The TQ912-011 111-912-000-011 A1-B6-E5000-F0-G0-H05 proximity sensor is an industrial sensor used for non-contact measurement. Its active part is a coil molded into the tip of the device and made of engineering thermoplastic polyphenylene sulfide (PPS). The sensor body is made of stainless steel and the target material must be metal.
Function & Features
- Measuring Range: TQ912-011 111-912-000-011 A1-B6-E5000-F0-G0-H05. For an 8.2 mm diameter sensor, the measuring range is 2 or 4 mm.
- Cable Configuration: The integral coaxial cable is available in lengths of 0.5 m, 1.0 m, 1.5 m, 2.0 m, or 5.0 m and can be combined with the EA90x extension cable.

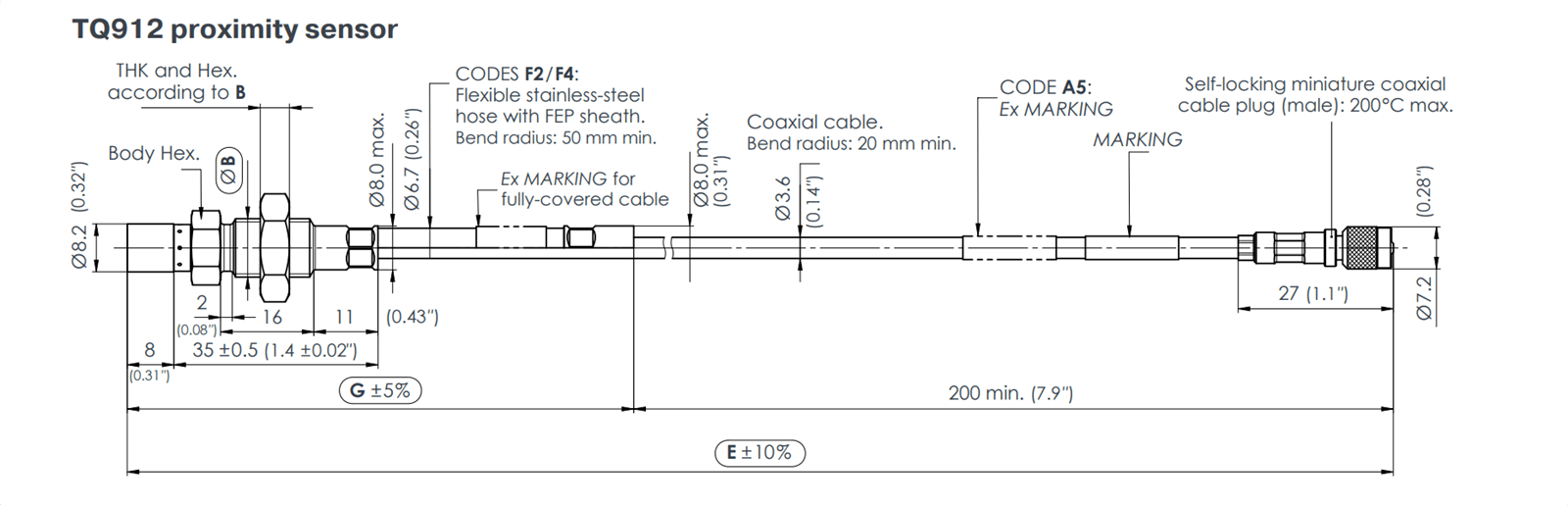

- Mounting: The TQ912 is essentially the same as the TQ902 proximity sensor.The difference is that the TQ902 is used for standard installation, while the TQ912 is used for reverse installation.
- Mechanical protection options: The TQ912 is available with interconnect protectors (IP172), junction boxes (JB118), and other enclosures.
Specifications
|
Specification |
Details |
|
Part Number |
TQ912-011 111-912-000-011 A1-B6-E5000-F0-G0-H05 |
|
Sensor and cabling with a total system (chain) length |
1, 5 or 10 m |
|
Pressure between sensor tip and body |
6 bar (100 psid) max. |
|
Vibration (according to IEC 60068 - 2 - 26) |
5 g peak between 10 and 500 Hz |
|
Shock acceleration (according to IEC 60068 - 2 - 27) |
15 g peak (half sine impulse, 11 ms duration) |
|
Probe diameter |
8.2 mm |
|
Mounting method |
Reverse - Mount |
FAQ
Q: What is the brand?
A: Spares
Q: What is the type?
A:Proximity Sensor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
