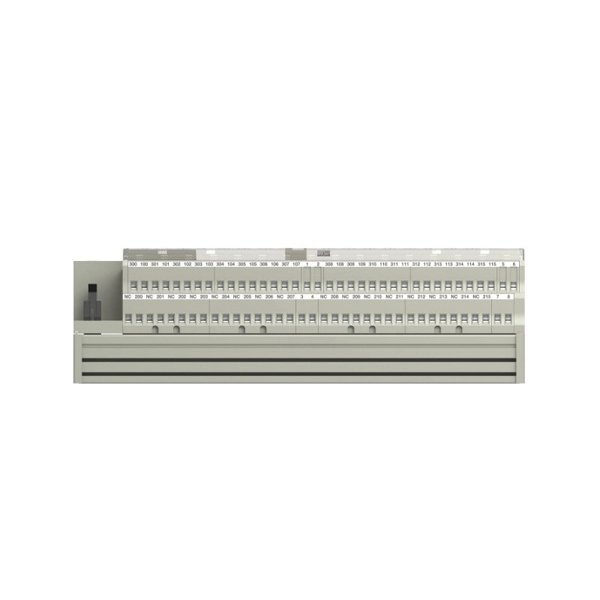

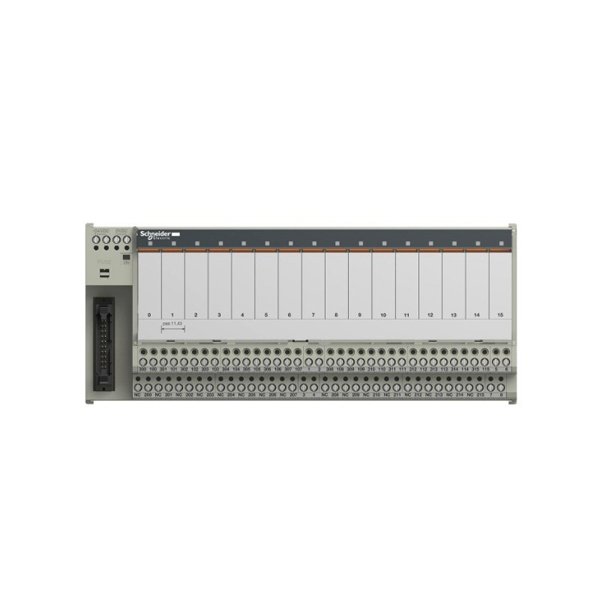

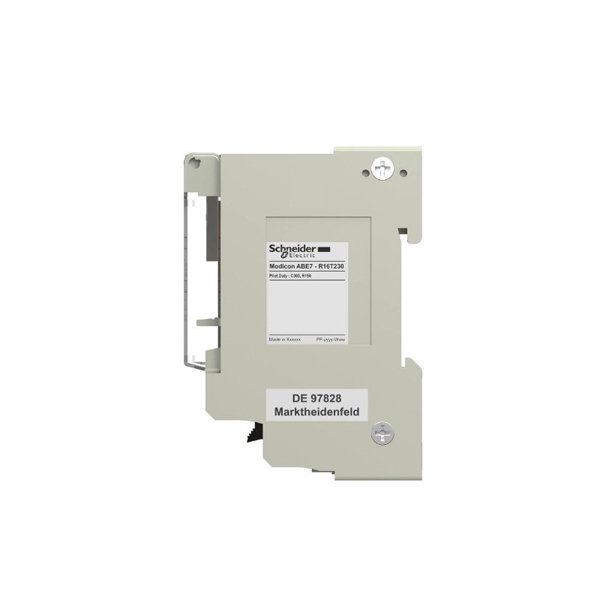

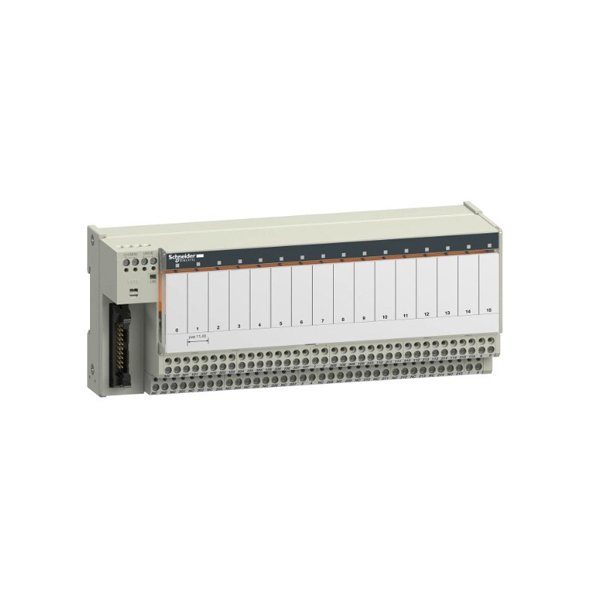

Schneider ABE7R16T230 Sub-Base With Plug-In Electromechanical Relay

The Schneider Electric ABE7R16T230 is a modular, DIN rail-mountable sub-base system designed for industrial automation applications. This model comes equipped with 16 relay outputs, operating at 230 V AC supply voltage. The ABE7 range is part of Schneider Electric’s Advantys series, known for simplifying wiring and maintenance in control systems. The ABE7R16T230 is especially valued in large-scale automation systems where high density and fast signal transmission are critical.

Its compact design allows for optimized use of panel space, while the plug-in electromechanical relays ensure ease of maintenance and replacement. It interfaces seamlessly with various PLC modules and provides a clear, organized wiring layout. The unit is also compliant with international industrial standards, making it suitable for global installations.

Product Specifications

Applications

The ABE7R16T230 is utilized across a wide range of industrial environments due to its modular flexibility and robustness:

• Factory Automation: Ideal for interfacing with PLCs for controlling actuators, motors, and solenoids.

• Material Handling Systems: Used in conveyor systems for switching and sequencing operations.

• Building Management Systems (BMS): Facilitates control over lighting, HVAC, and access systems.

• Water Treatment Plants: Used for managing pumps, valves, and monitoring devices.

• Machine Control Panels: Suitable for applications requiring reliable relay output switching.

• Process Industries: Enables safe switching in chemical, pharmaceutical, and food processing sectors.

Advantages

• High-Density Output: Provides 16 relay channels in a compact footprint, maximizing space efficiency.

• Ease of Maintenance: Plug-in relays enable quick replacement without rewiring.

• Simplified Wiring: Standardized terminal layout and clear labeling reduce installation errors.

• Reliable Switching: Electromechanical relays support high inrush currents and inductive loads.

• Compatibility: Fully compatible with Schneider PLCs and other field automation systems.

• International Certifications: Compliance with CE, UL, and RoHS ensures global usability.

• Cost-Effective: Reduces installation time and labor costs through modularity and easy assembly.

• Temperature Resilience: Operates in a broad range of environmental conditions.

• Long Lifespan: Built for durability with robust housing and quality relay components.

• Clear Diagnostics: Some variants include LED indicators for real-time relay status monitoring.

Frequently Asked Questions (FAQ)

1. What is the input voltage for the ABE7R16T230?

   The unit operates with a 230 V AC power supply.

2. Is this sub-base compatible with Schneider’s Modicon PLCs?

   Yes, it is specifically designed to integrate with Schneider Electric Modicon PLCs.

3. Can I replace the relays individually?

   Yes, the relays are plug-in types, allowing for quick and easy replacement.

4. Is it suitable for inductive load switching?

   Absolutely. The electromechanical relays are designed to handle inductive loads efficiently.

5. Does it have any built-in protection against overloads?

   No, overload protection should be provided externally, such as with circuit breakers or fuses.

6. What’s the maximum current each relay channel can handle?

   Each channel can handle up to 6 A.

7. What is the ambient operating temperature range?

   The ABE7R16T230 can operate between -5°C and +60°C.

8. Can it be used in safety-related systems?

   While robust, for safety-related systems, always refer to specific safety-certified modules.

9. What kind of maintenance is required?

   Periodic inspection and replacement of worn relays are recommended. Cleaning terminals to prevent corrosion also helps.

10. Does this unit have LED status indicators?

    Some variants do include LED indicators. Check the datasheet for specific sub-models.
