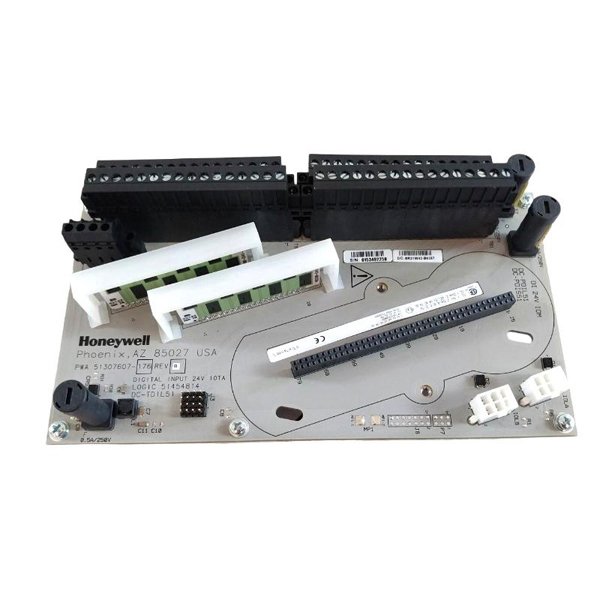

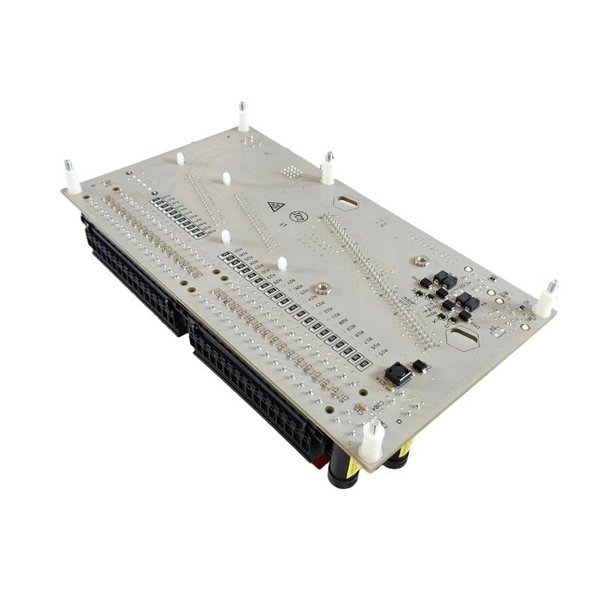

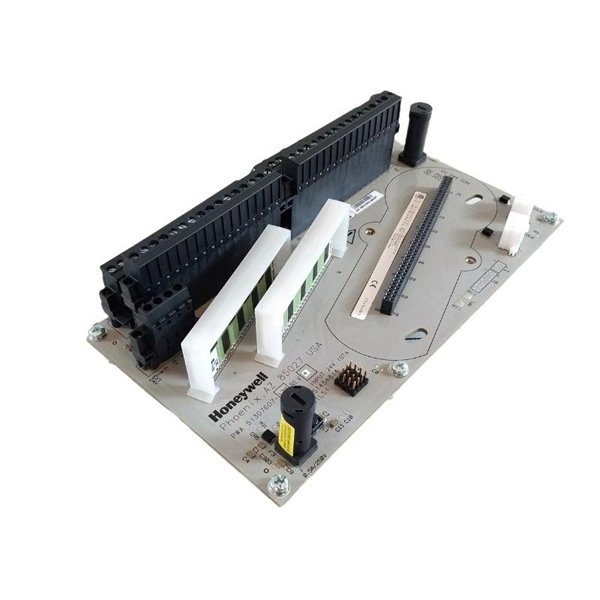

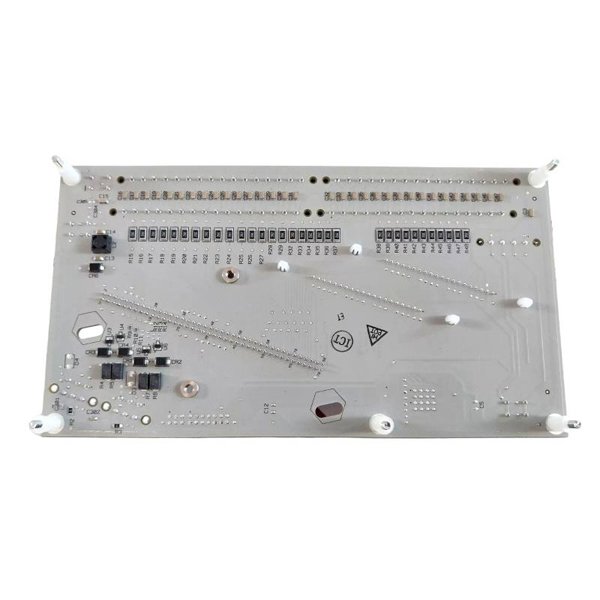

Honeywell DC-TDIL51 51307607-176 Digital Input Module

The Honeywell DC-TDIL51 (Part No. 51307607-176) is a high-density Digital Input Module designed for real-time monitoring of discrete signals in industrial control systems. As a part of Honeywell’s TPS (TotalPlant Solution) and Experion Process Knowledge System (PKS) family, it plays a vital role in acquiring ON/OFF signals from various field devices.

This module supports 32 digital input channels, offering cost-effective and space-efficient input handling. It is optimized for demanding process environments and delivers dependable performance in monitoring alarm contacts, switch states, relay closures, and other binary devices. With robust isolation, fast response times, and diagnostic capabilities, the DC-TDIL51 is a trusted component in critical applications across energy, oil & gas, chemical, and utilities sectors.

Product Specifications

Applications

The Honeywell DC-TDIL51 is ideal for industrial settings that require reliable digital input signal monitoring. It is widely used in:

• Oil & Gas Facilities

  Captures discrete input states from pressure switches, limit sensors, and ESD systems.

• Power Generation Plants

  Monitors breaker statuses, protective relays, turbine switches, and interlocks.

• Chemical Processing Units

  Interfaces with safety switches, interlocks, level alarms, and control panels.

• Pharmaceutical Manufacturing

  Used to detect input from machine guards, status switches, and cleanroom alarms.

• Water & Wastewater Treatment

  Tracks signal inputs from pump starters, valve positions, and tank level alarms.

• Heavy Industry & Automation

  Collects ON/OFF signals from conveyors, motors, emergency stops, and limit sensors.

Product Advantages

• High-Density Input Design

  Supports 32 input channels in a compact form factor, saving space and cost.

• Reliable Optical Isolation

  Prevents electrical noise interference and ensures safe signal separation.

• Status LEDs per Channel

  Facilitates real-time troubleshooting and monitoring of input conditions.

• Industrial-Grade Durability

  Withstands wide temperature and humidity ranges, ensuring stable field operation.

• Hot-Swappable Capability

  Enables module replacement without system shutdown, reducing downtime.

• Integrated Diagnostics

  Quickly identifies input failures or wiring issues, reducing maintenance time.

• Broad System Compatibility

  Seamlessly integrates with Honeywell’s DCS platforms such as TPS and Experion PKS.

Frequently Asked Questions (FAQ)

1. What is the main function of the DC-TDIL51?

   It captures and transmits 32 discrete digital input signals from field devices to the control system.

2. How many input channels does the module support?

   The module supports 32 digital inputs, offering high input density.

3. What type of devices can be connected to this module?

   Devices like pushbuttons, limit switches, emergency stop buttons, and relay outputs.

4. What is the nominal operating voltage for inputs?

   24 VDC is the standard input voltage for field signals.

5. Is the module suitable for hazardous environments?

   Yes, it holds certifications like ATEX, CE, and UL, making it safe for industrial use.

6. Can this module be used in redundant control systems?

   Yes, it is compatible with Honeywell’s redundant configurations in TPS and Experion.

7. Does it support hot-swapping?

   Yes, it can be replaced without shutting down the entire system if configured correctly.

8. Are there built-in status indicators?

   Yes, each input channel has an LED for instant visual monitoring.

9. Is it compatible with both TPS and Experion PKS?

   Yes, it integrates with both control platforms and also PlantScape systems.

10. What protections are included for electrical interference?

    Optical isolation per channel and internal filtering ensure excellent signal integrity.
