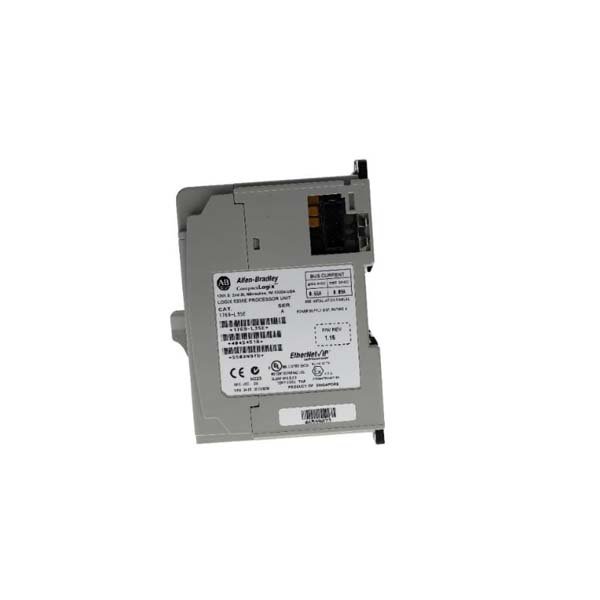

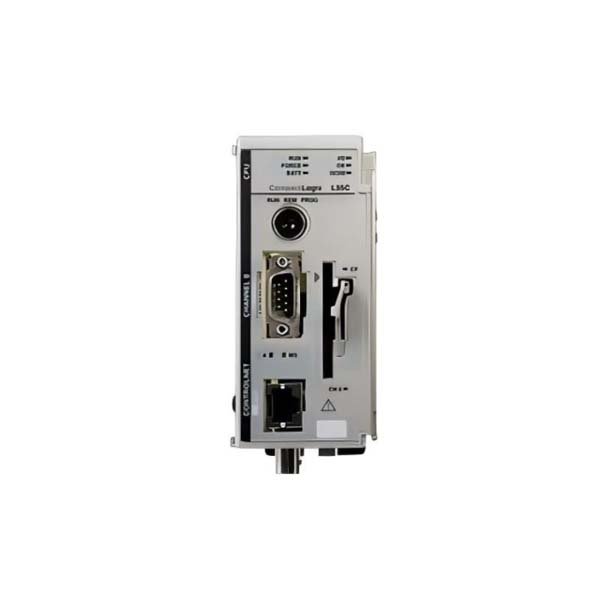

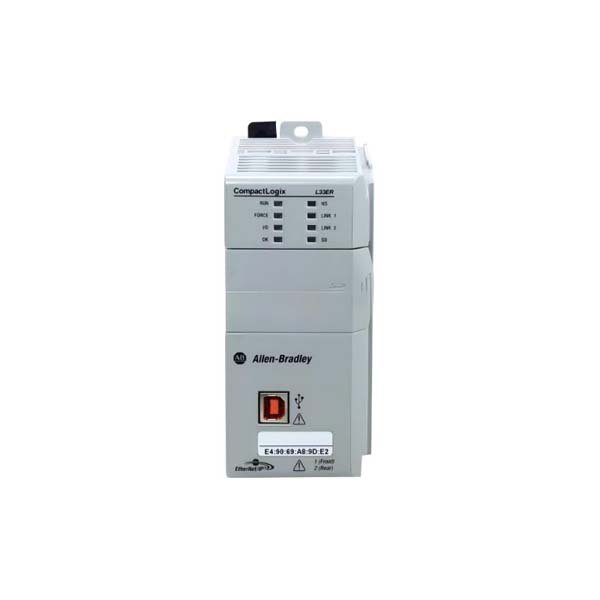

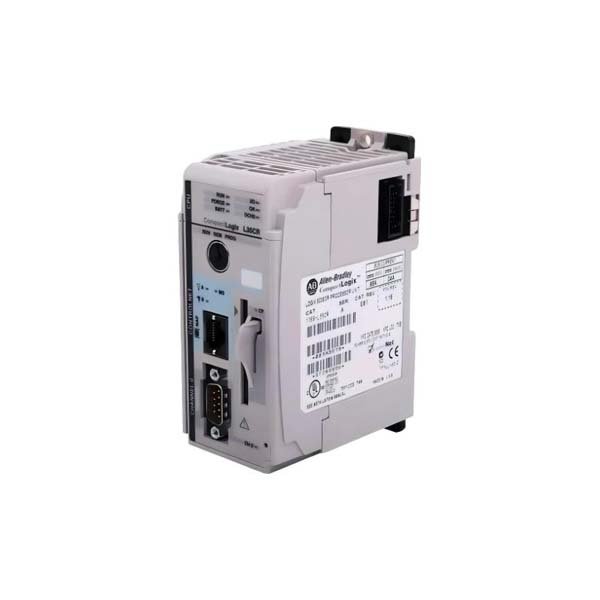

Allen-Bradley 1769-L35CR CompactLogix Controller Module
Manufacturer:Allen Bradley
Product Number:1769-L35CR
Product Type:CompactLogix Controller Module
Origin:USA
Dimensions:140 mm × 90 mm × 110 mm
Weight:0.60 kg
Views:165
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Allen-Bradley 1769-L35CR is a CompactLogix controller module designed for mid-sized industrial automation systems. It integrates high-speed logic execution, multiple communication protocols, and modular I/O support into a compact footprint. This controller is ideal for machine automation, process control, and distributed systems where space, flexibility, and performance are critical. The 1769-L35CR combines deterministic control, Ethernet/IP connectivity, and support for local and remote I/O in one scalable platform.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Controller Type | CompactLogix L35CR | Mid-range PAC for machine and process automation |
| User Memory | 512 KB | Sufficient for moderate program size and data logging |
| Communication Ports | 1 × Ethernet, 1 × USB, 1 × Serial (RS-232/485) | Flexible network and programming options |
| Task Execution Rate | 1 ms typical | Fast logic scan for responsive control |
| I/O Module Support | 1769 Compact I/O modules | Up to 16 modules in local chassis |
| Motion Control Support | Up to 2 axes via 1769 motion modules | Synchronized motion control for machines |
| Programming Software | Studio 5000 Logix Designer | Tag-based programming and online diagnostics |
| Protocols Supported | EtherNet/IP, DF1, Modbus TCP | Supports industrial communication standards |
| Power Supply | 24 V DC via 1769-PA4 supply | Provides stable operation for controller and local I/O |
| Current Draw | 1.1 A typical | Power consumed from backplane |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) | Industrial-rated range |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) | Non-operational storage limit |
| Humidity | 5%–95% non-condensing | Suitable for factory environments |
| Shock Resistance | 30 g operational | Complies with IEC 60068-2-27 |
| Vibration Resistance | 5–2000 Hz @ 1 g | Industrial-grade tolerance |
| Dimensions (H × W × D) | 140 mm × 90 mm × 110 mm (5.5″ × 3.5″ × 4.3″) | Compact design for space-limited panels |
| Weight | 0.60 kg (1.32 lbs) | Lightweight for easy installation |
Applications
The 1769-L35CR controller is suitable for a wide range of industrial automation scenarios:
-
Machine Automation – Controls assembly lines, packaging machines, and robotic systems.
-
Process Control – Manages analog and discrete signals for batch and continuous processes.
-
Material Handling – Coordinates conveyors, sorters, and feeders across the network.
-
Distributed Control Systems – Supports local and remote I/O for modular systems.
-
OEM Equipment – Embedded controller for custom machinery with flexible I/O expansion.
-
HMI Integration – Communicates with operator interfaces for monitoring and control.
Advantages
-
Compact, Modular Design: Small footprint allows installation in limited panel space.
-
Flexible I/O Support: Compatible with local and remote Compact I/O modules.
-
High-Speed Processing: 1 ms task scan ensures responsive logic and control.
-
Multiple Communication Options: Ethernet, USB, and serial ports enable network flexibility.
-
Motion Control Capability: Supports up to 2 axes of coordinated motion.
-
Industrial Reliability: Shock, vibration, and environmental tolerance ensure robust operation.
-
Scalable Architecture: Easily expandable with additional I/O modules and networked controllers.
-
Studio 5000 Integration: Simplifies programming, diagnostics, and monitoring.
FAQs
-
Q: How many I/O modules can the L35CR support locally?
A: Up to 16 Compact I/O modules in the local chassis.
-
Q: Can it support motion control?
A: Yes, up to 2 axes via compatible 1769 motion modules.
-
Q: What software is required for programming?
A: Studio 5000 Logix Designer.
-
Q: Can it communicate over Ethernet/IP?
A: Yes, it has built-in Ethernet/IP support.
-
Q: Does it support Modbus TCP communication?
A: Yes, Modbus TCP is supported for device integration.
-
Q: Can the controller be hot-swapped?
A: No, the module must be installed or removed with power off.
-
Q: Is the L35CR compatible with 1769-L3xER CompactLogix series?
A: Yes, it is part of the same CompactLogix family and shares network compatibility.
-
Q: What is the operating temperature range?
A: 0°C to +60°C (32°F to 140°F).
-
Q: Can it support remote I/O modules over EtherNet/IP?
A: Yes, remote I/O modules can be integrated via EtherNet/IP.
-
Q: How much memory does the L35CR provide for user programs?
A: 512 KB of user memory.
