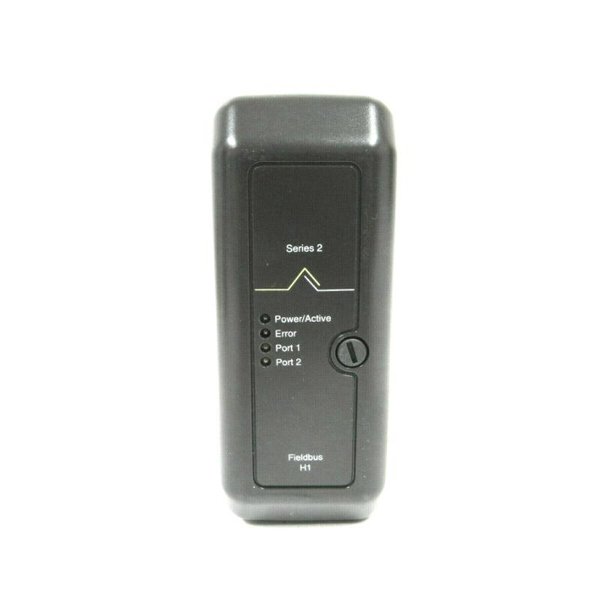

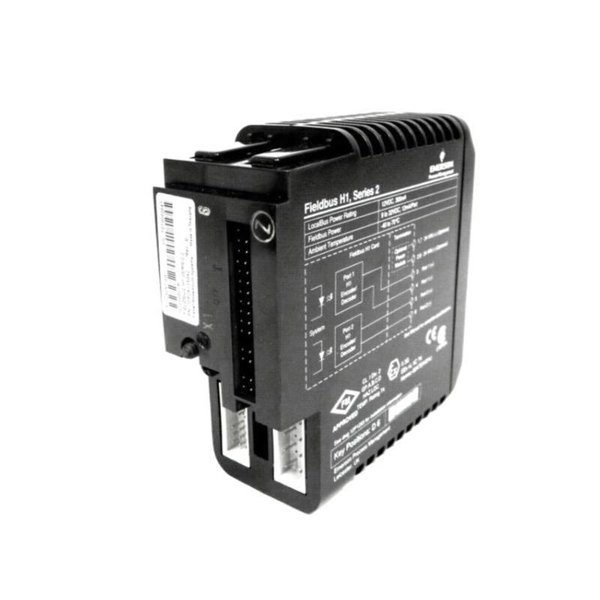

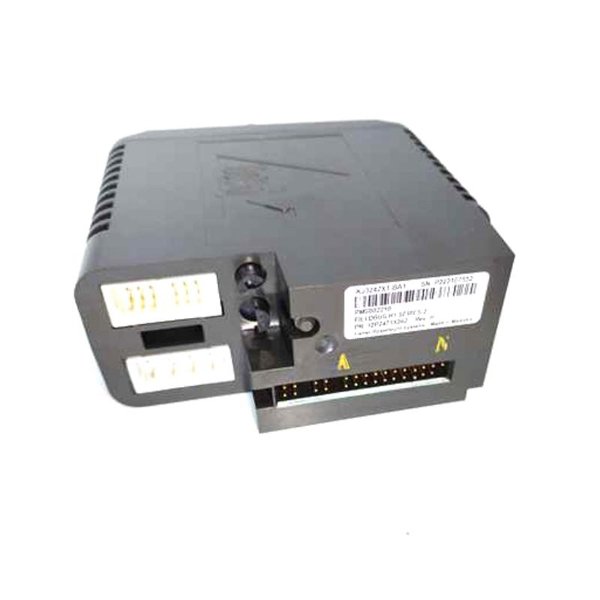

Emerson VE4017P0 KJ3242X1-BA2 Series 2 Fieldbus H1 Card

Name: Emerson VE4017P0 KJ3242X1-BA2 Series 2 Fieldbus H1 Card
Brand: Emerson
Availability: InStock

Manufacturer:Emerson

Product Number:VE4017P0 KJ3242X1-BA2

Product Type:Series 2 Fieldbus H1 Card

Origin:USA

Dimensions:107 x 41 x 105 mm

Weight:0.3 kg

Views:44

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Contact Sales

Product Description

The Emerson VE4017P0 KJ3242X1-BA2 is a Series 2 Fieldbus H1 Card designed for integration within the DeltaV™ system. It supports high-speed digital communication with field instruments using the FOUNDATION Fieldbus H1 protocol. The module is engineered for installation in hazardous areas and meets international safety standards, including ATEX and IECEx certifications.

Technical Specifications

Parameter	Specification
Model Number	VE4017P0 KJ3242X1-BA2
Series	Series 2
Fieldbus Protocol	FOUNDATION Fieldbus H1
Local Bus Power	12 VDC at 300 mA
Fieldbus Power	9–32 VDC at 12 mA per port
Operating Temperature	-40°C to +70°C
Relative Humidity	5% to 95% non-condensing
Shock Resistance	10g, 11 msec (half sine wave)
Vibration	1mm P-P (2–13.2 Hz), 0.7g (13.2–150 Hz)
Contaminant Resistance	ISA-S71.04 Class G3
Dimensions (H x W x D)	107 x 41 x 105 mm
Weight	0.3 kg

Applications

Integration of FOUNDATION Fieldbus H1 field devices
Hazardous industrial environments (Zone 2/Class I Div 2)
Process automation systems using DeltaV™ architecture
Oil & gas, chemical, and power generation facilities
Distributed control system expansions

Product Advantages

Certified for hazardous zones (ATEX, IECEx, FM)
Compact size, ideal for space-constrained systems
Supports robust digital fieldbus communications
Vibration and shock-resistant design
Maintenance-free, no calibration required
High environmental resistance (Class G3 contaminants)

FAQ

Q1: What is the main function of the KJ3242X1-BA2 Fieldbus H1 Card?

A1: It enables communication between the DeltaV system and field devices using the FOUNDATION Fieldbus H1 protocol.

Q2: Can this module be used in hazardous environments?

A2: Yes, it is certified for use in Zone 2/Class I Division 2 hazardous areas.

Q3: What is the required fieldbus power input?

A3: It operates with 9–32 VDC at 12 mA per port.

Q4: Is hot-swapping allowed for this module?

A4: No, power must be removed before inserting or removing the module.

Q5: What temperature range can it withstand?

A5: It supports a wide range from -40°C to +70°C.

Q6: Does it require periodic calibration?

A6: No, the unit is maintenance-free and does not require calibration.

Q7: How does it ensure correct installation?

A7: It uses a rotary keying system to match terminal blocks with the I/O card.

Q8: Can it resist harsh industrial contaminants?

A8: Yes, it is rated for ISA-S71.04 Class G3 airborne contaminants.

Q9: What are its vibration specifications?

A9: It can handle 1mm peak-to-peak from 2–13.2 Hz and 0.7g from 13.2–150 Hz.

Q10: Is it compatible with all DeltaV systems?

A10: It is designed for DeltaV M-Series systems with compatible terminal blocks.
