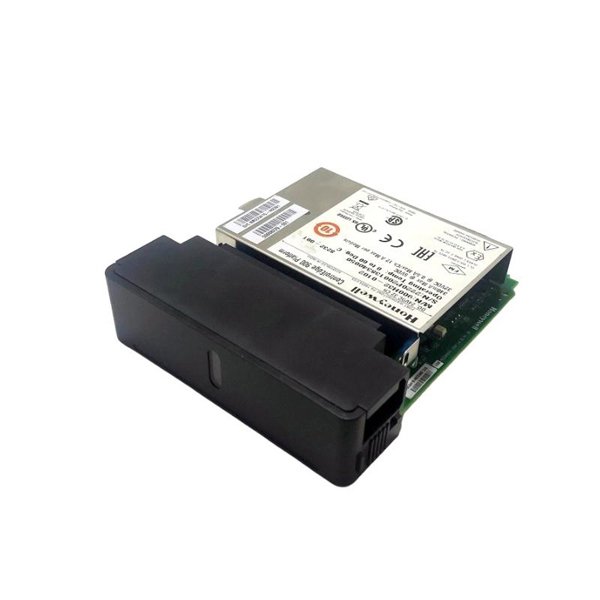

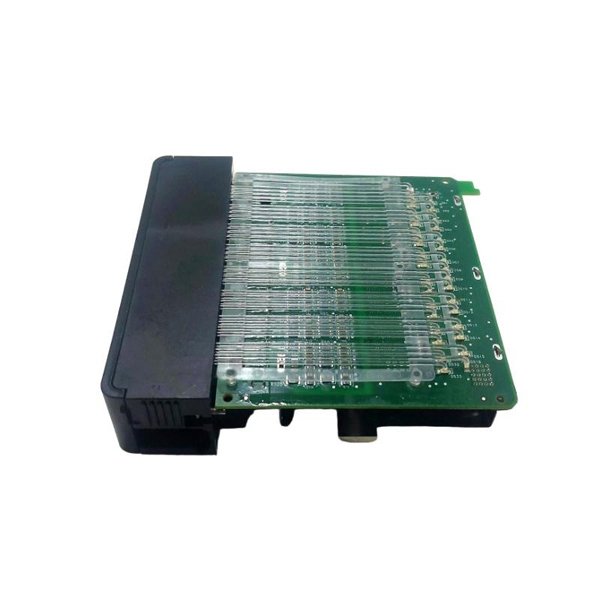

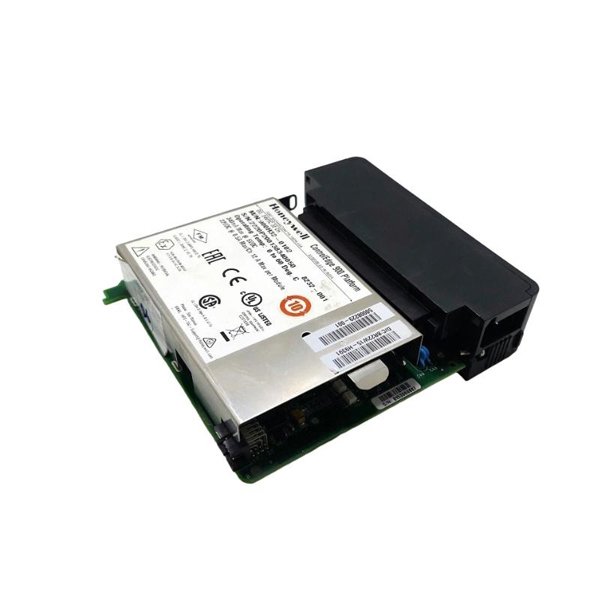

Honeywell 900H32-0102 32 Point Digital Output Module

The Honeywell 900H32-0102 32-Point Digital Output Module is a high-density module designed to control and monitor a large number of digital output devices in industrial automation systems. It is part of Honeywell’s extensive range of field devices and is ideal for applications requiring numerous outputs for digital devices such as actuators, relays, and motors. This module provides 32 digital outputs, enabling efficient control across a wide variety of processes.

It features dry contact (SPDT) output types, ensuring reliable control over high-current devices with a straightforward integration into most industrial control systems. With its compact design and robust functionality, the Honeywell 900H32-0102 is suited for diverse industries including manufacturing, process control, building systems, and more.

This module provides excellent performance and flexibility, making it an essential component in industrial automation and control systems, especially in applications where multiple digital output points are necessary.

Product Specifications

Here are the detailed specifications for the Honeywell 900H32-0102 32-Point Digital Output Module:

Applications of the Honeywell 900H32-0102 32-Point Digital Output Module

The Honeywell 900H32-0102 is designed for a variety of industrial applications, where large numbers of digital outputs are required for controlling various devices. Some common applications include:

• Factory Automation: Ideal for controlling production line equipment, actuators, relays, and other devices in an automated manufacturing environment.

• Process Control: Used to control digital devices such as pumps, valves, and solenoids in chemical, oil, and gas industries.

• Building Management Systems (BMS): Controls HVAC, lighting, and security devices in large commercial buildings or campuses.

• Energy Management: Manages energy distribution and control systems by turning on/off equipment based on system requirements.

• SCADA Systems: Can be integrated into SCADA systems for monitoring and controlling a wide range of output devices in real time.

• Safety Systems: Provides control for emergency shutdown systems, alarms, and other critical safety devices.

Advantages of the Honeywell 900H32-0102 32-Point Digital Output Module

1. High Output Density: With 32 output points, this module is highly efficient for large-scale control applications, saving valuable space in control panels.

2. Durability and Reliability: Built to operate in harsh industrial environments, offering durability in temperatures ranging from -20°C to +60°C.

3. Low Power Consumption: Consumes only 4 W of power, making it an energy-efficient option for industrial automation systems.

4. Flexible Mounting: It supports both DIN rail and panel mounting, making installation easier and more versatile.

5. Cost-Effective: With a compact design and efficient use of space, the Honeywell 900H32-0102 helps to reduce overall system costs.

6. Easy Integration: Can be easily integrated into existing Honeywell control systems or other compatible systems.

7. Long Life Cycle: Designed for long-term operation with minimal maintenance required, offering a reliable solution for control systems.

8. Compact Design: Despite its high output density, it maintains a compact footprint, ensuring it fits into systems with limited space.

9. Wide Range of Applications: Ideal for use in many industries such as manufacturing, energy, and process control.

Frequently Asked Questions (FAQ)

1. How many output channels does the Honeywell 900H32-0102 provide?

   • The module provides 32 digital output channels.

2. What type of output does this module use?

   • It uses dry contact (SPDT) outputs, suitable for controlling various digital devices.

3. What is the maximum current rating per output channel?

   • Each output channel can handle up to 2 Amps.

4. What voltage rating is the module designed for?

   • The module operates at 24 VDC.

5. What are the dimensions of the Honeywell 900H32-0102?

   • The dimensions are 137 × 35.6 × 137.16 mm.

6. Can the module be mounted on a DIN rail?

   • Yes, it supports DIN rail or panel mounting for flexible installation options.

7. What is the weight of the module?

   • The module weighs 0.18 kg.

8. What is the operating temperature range of this module?

   • It operates within a temperature range of -20°C to +60°C.

9. What is the power consumption of the Honeywell 900H32-0102?

   • The module consumes 4 W of power during operation.

10. What applications is this module best suited for?

    • It is best suited for factory automation, process control, BMS, and SCADA systems.
