Schneider 140CFB03200 Digital Input Block

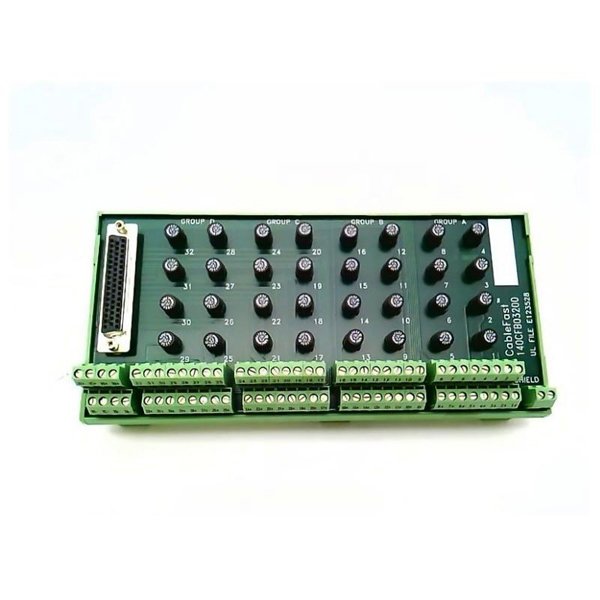

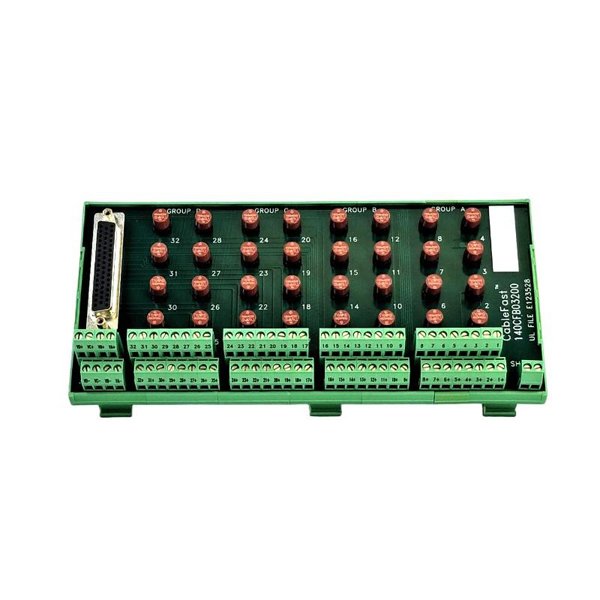

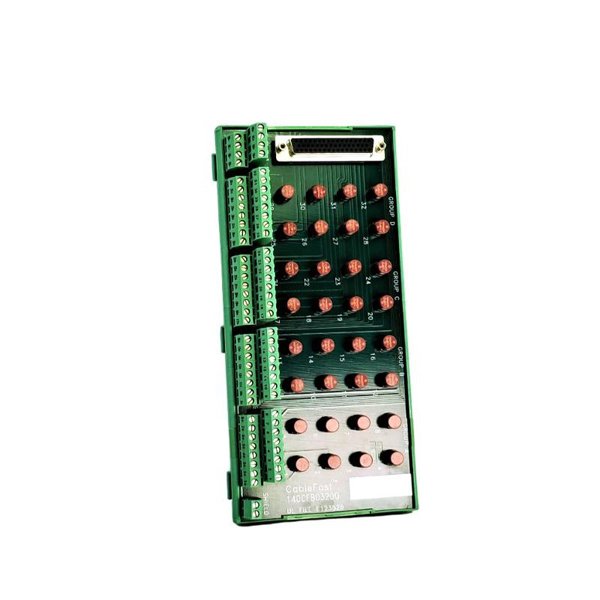

The Schneider Electric 140CFB03200 is a Digital Input Block designed for the Modicon Quantum automation platform. As a key component in industrial control systems, this input block serves as the interface between digital field devices and Quantum I/O modules. The module provides an organized wiring interface to ensure reliable and structured signal termination for 32 digital inputs.

Engineered to handle demanding environments, the 140CFB03200 is built with industrial-grade materials and robust design standards. It supports a wide range of field signal wiring and connects directly to I/O modules via ribbon cables, ensuring fast installation and minimal wiring errors. Its screw-clamp terminals provide secure and consistent electrical connections, making it ideal for both new installations and retrofitting existing systems.

Technical Specifications

Applications

The 140CFB03200 is utilized across a wide range of industries for reliable digital input handling:

• Manufacturing Plants: Connects sensors, switches, and control buttons in production lines.

• Water Treatment Facilities: Interfaces with pumps, valve positions, and flow sensor feedback.

• Oil & Gas: Captures binary signals from pressure switches and flow indicators.

• Power Generation: Used in turbine control systems, electrical switchgear status feedback.

• Building Automation: Integrates digital field signals from HVAC, lighting, or access control systems.

• Material Handling Systems: Receives signals from conveyors, encoders, and proximity switches.

Product Advantages

• High Channel Density: Accommodates 32 digital input points, enabling compact system design.

• Reliable Field Wiring Interface: Screw terminals ensure vibration-resistant, secure connections.

• Standardized Cabling: 40-pin ribbon cable reduces wiring complexity and speeds up installation.

• Ease of Maintenance: Clear labeling of terminals simplifies diagnostics and rewiring tasks.

• Wide Compatibility: Seamless integration with Modicon Quantum I/O systems.

• Durable Build: Designed to withstand harsh industrial environments with thermal and mechanical resilience.

• Flexible Mounting: Supports both DIN rail and panel mounting configurations.

• Compliance Ready: Meets global industrial certifications for safety and performance.

FAQ

1. What is the purpose of the 140CFB03200?

   It is a 32-channel digital input block that interfaces field signals with Modicon Quantum I/O modules.

2. Which wire sizes are supported by this block?

   The module supports 22–12 AWG solid or stranded copper wires.

3. How does this connect to I/O modules?

   Via a 40-pin ribbon cable that connects directly to compatible Quantum I/O cards.

4. Can I mount the block on a DIN rail?

   Yes, it supports DIN rail and panel mounting.

5. Is this product compatible with analog modules?

   No, it is specifically designed for digital input signals.

6. Does the module support hot-swapping?

   No, all wiring should be done with the power disconnected for safety.

7. Can it operate in high humidity environments?

   Yes, up to 95% non-condensing humidity.

8. What is the typical application voltage?

   It is typically used with 24V DC digital signals.

9. Are the terminals pre-labeled?

   Yes, the terminal block includes clear labeling for each input channel.

10. Is the 140CFB03200 UL certified?

    Yes, it carries UL, CE, and CSA certifications for industrial use.
