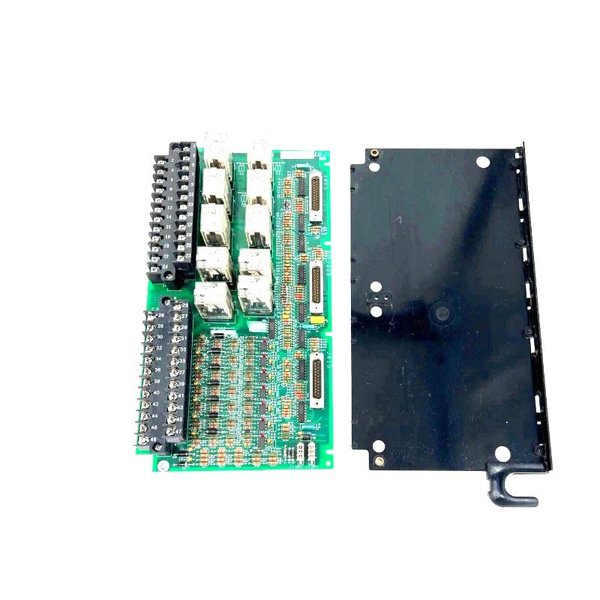

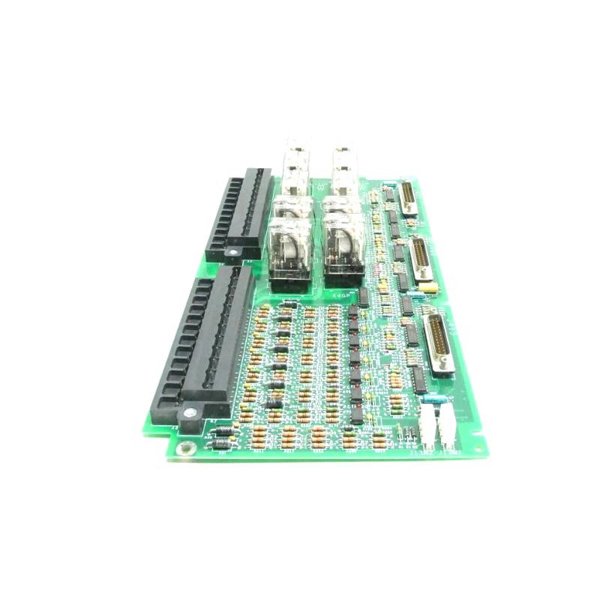

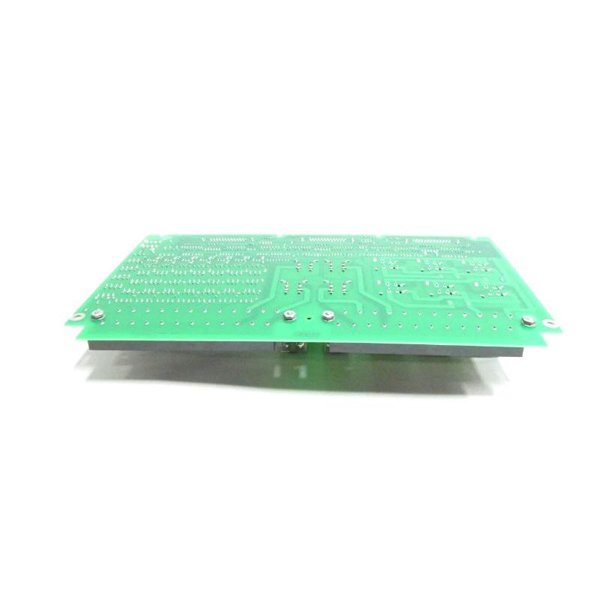

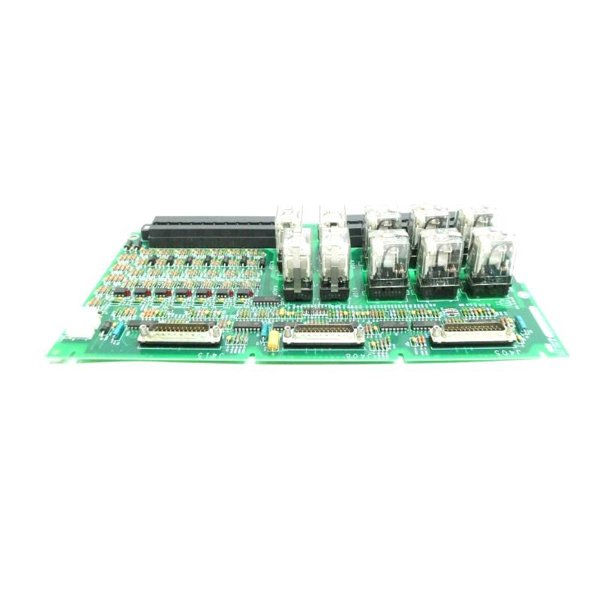

General Electric IS200ECTBG1A EX21000 Series Exciter Contact Terminal Board

The GE IS200ECTBG1A is an Exciter Contact Terminal Board for the EX2100 excitation system, part of the Mark VI family. It serves as a reliable interface for contact I/O signals, utilizing barrier-type pluggable terminals for ease of wiring and maintenance.

Technical Specifications

Applications

• Provides contact I/O signal interfacing in GE EX2100 exciter systems

• Used in steam and gas turbine excitation systems

• Applied in power generation and industrial turbine control systems

Advantages

• Compact and robust construction suitable for industrial environments

• Simple maintenance with plug-in terminal blocks

• Fully compatible with EX2100 and Mark VI systems

• Supports reliable signal handling and protection

• Reduces installation and service time

Frequently Asked Questions

Q1: What does the IS200ECTBG1A do?

A1: It interfaces field contact signals to the GE EX2100 exciter control system.

Q2: Is it compatible with Mark VI control panels?

A2: Yes, it is designed for Mark VI and EX2100 integration.

Q3: How is it installed?

A3: It can be mounted on panels or racks as per system design.

Q4: What terminal type does it have?

A4: It features pluggable, barrier-type terminals.

Q5: What are its dimensions and weight?

A5: It measures 150×76×90 mm and weighs 0.34 kg.

Q6: Can it operate in high-humidity environments?

A6: Yes, up to 95% non-condensing humidity.

Q7: Does it support hot-swap replacement?

A7: Some configurations allow replacement without full shutdown.

Q8: Is it optically isolated?

A8: Yes, the contact inputs are optically isolated.

Q9: Does it require special wiring tools?

A9: No, standard screwdrivers are sufficient.

Q10: How many contacts can it handle?

A10: It handles the standard EX2100 contact I/O load based on system design.
