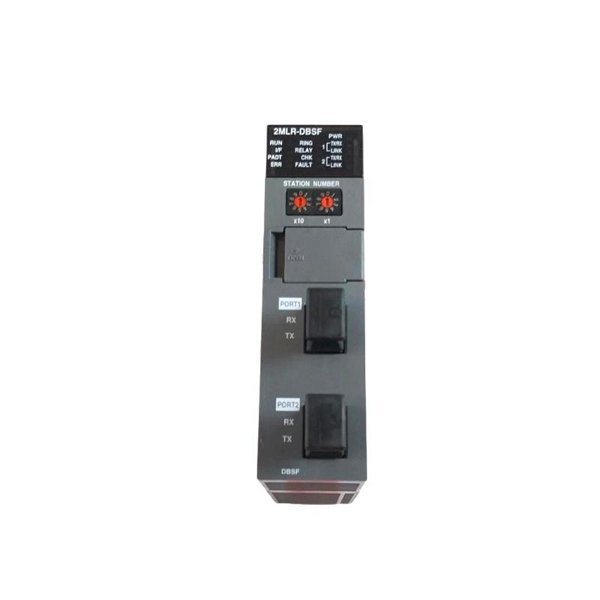

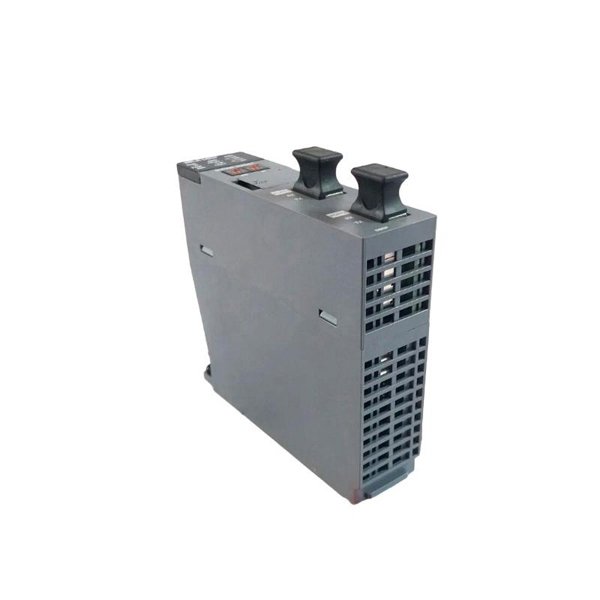

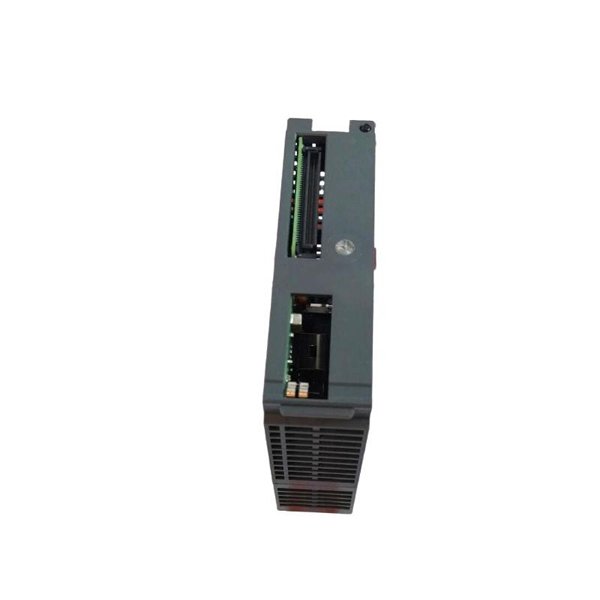

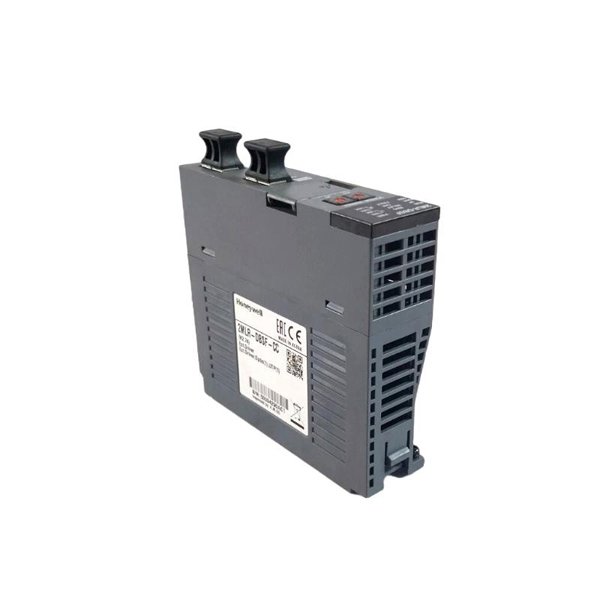

Honeywell 2MLR-DBSF-CC Expansion Driver Module

The Honeywell 2MLR-DBSF-CC Expansion Driver Module is a specialized component designed to enhance and expand the input/output capabilities of Honeywell’s Experion and TDC distributed control systems. Acting as a versatile driver interface, this module allows the control system to manage additional field devices by providing expanded digital and analog signal handling capacity.

Built for industrial automation environments, the 2MLR-DBSF-CC supports communication with a wide variety of field equipment, offering reliable and timely signal processing. Its modular design and robust construction make it suitable for demanding applications where scalability and system flexibility are required to meet evolving operational needs.

Product Specifications

Applications

• Process Control Expansion: Enhances control system I/O capacity for larger or more complex industrial processes.

• Power Plants: Used to increase the number of controllable devices such as valves, breakers, and sensors.

• Oil & Gas: Supports remote field device control in pipelines and refining operations.

• Chemical Plants: Provides additional driver outputs for chemical dosing, mixing, and safety systems.

• Water and Wastewater Treatment: Expands control over pumps, valves, and monitoring devices.

• Manufacturing Automation: Enables scalability in automated production lines and assembly processes.

Advantages

• Scalable System Expansion: Easily adds more driver outputs without major system redesign.

• Reliable Signal Processing: Ensures consistent and timely communication with field devices.

• Modular Design: Simple to install, replace, or upgrade as operational requirements evolve.

• Robust Construction: Suitable for industrial environments with resistance to vibration and temperature changes.

• Flexible Mounting Options: Supports both DIN rail and rack mounting for easy integration.

• Energy Efficient: Designed for low power consumption.

• Seamless Integration: Fully compatible with Honeywell Experion and TDC systems.

• Enhanced System Flexibility: Facilitates incremental growth of control system capacity.

Frequently Asked Questions (FAQ)

1. What is the purpose of the 2MLR-DBSF-CC Expansion Driver Module?

   It expands the control system’s digital and analog output driver capacity.

2. Which systems is this module compatible with?

   It is designed for Honeywell Experion and TDC distributed control systems.

3. What power supply does the module require?

   The module operates on a nominal 24 V DC power supply.

4. What are the operating temperature limits?

   It functions effectively between 0°C and 60°C.

5. How is the module mounted?

   It supports both DIN rail and rack mounting installations.

6. What communication interface does it use?

   It connects via Honeywell’s proprietary bus interface.

7. Can this module be used to control both digital and analog devices?

   Yes, it expands both digital and analog driver outputs.

8. What are the physical dimensions and weight of the module?

   Dimensions are 150 x 100 x 50 mm, weighing 0.099 kg.

9. Is the module designed for harsh industrial environments?

   Yes, it is built to withstand vibration, temperature fluctuations, and electrical noise.

10. How easy is it to add this module to an existing control system?

    It is designed for straightforward installation and integration with minimal system disruption.
