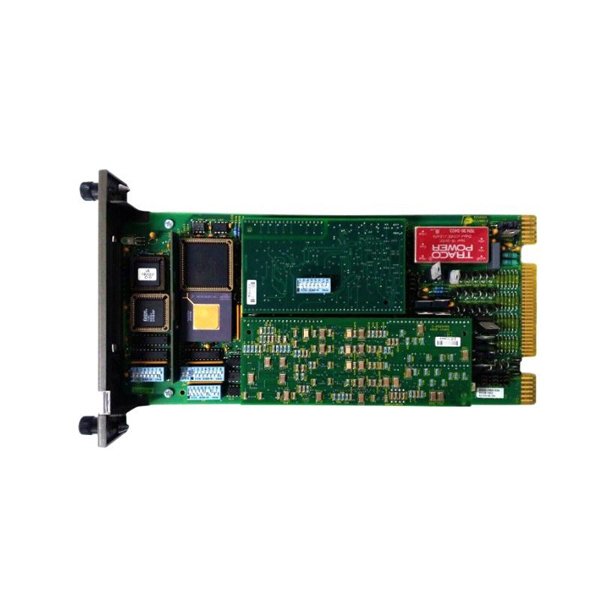

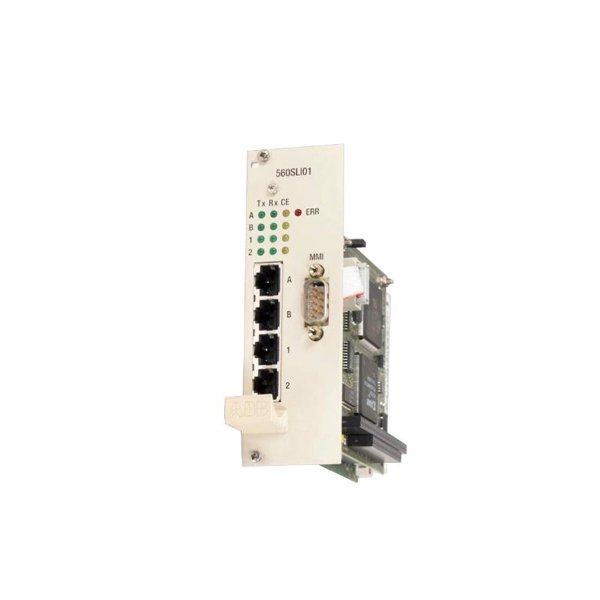

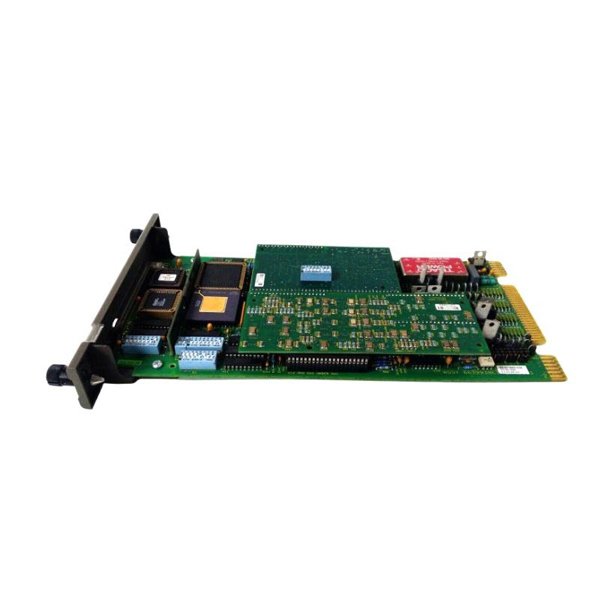

ABB 560SLI01 Serial Line Interface Unit

The ABB 560SLI01 Serial Line Interface Unit is a dedicated communication module specifically designed for use in ABB’s RTU560 system, a widely adopted solution for substation automation and remote control applications. This module serves as an essential link between the RTU and external devices through serial communication interfaces, ensuring seamless integration and data exchange in complex industrial environments.

With its rugged and compact design, the 560SLI01 supports the reliable transmission of data over RS-232 or RS-485 interfaces, playing a crucial role in supervisory control and data acquisition (SCADA) systems. The unit enhances the performance of control and monitoring systems by ensuring accurate and timely data transfer between field devices and central controllers.

Built to meet the rigorous demands of utility networks and process automation, the 560SLI01 enables efficient and fault-tolerant communication. It is especially suitable for electric utility substations, water treatment plants, and any infrastructure requiring high-availability communication networks.

Technical Specifications

Applications

The ABB 560SLI01 is a flexible and reliable component designed for a wide range of applications in industrial and infrastructure environments:

• Substation Automation: Acts as a serial interface between the RTU560 and intelligent electronic devices (IEDs), enabling efficient SCADA operation.

• Remote Control Systems: Allows connection of remote field devices in pipeline, water treatment, and energy distribution systems.

• Energy Management Systems (EMS): Facilitates communication with meters and protective relays.

• Industrial Automation: Integrates serial devices such as sensors and controllers within a unified automation system.

• Railway and Transportation Infrastructure: Ensures reliable communication in safety-critical signaling systems.

• Process Control Plants: Useful in applications where deterministic data exchange with legacy devices is essential.

Advantages

• High Reliability: Proven durability in critical infrastructure deployments with extended temperature and environmental tolerances.

• Interoperability: Supports various protocols (IEC 101, 103, 104, MODBUS, DNP3), ensuring seamless communication with multiple vendors’ equipment.

• Scalability: Easily integrated into existing RTU560 systems with minimal configuration effort.

• Space-Efficient Design: Compact form factor ensures optimal use of control panel space.

• Low Maintenance: Designed for long service life with minimal need for field intervention.

• Enhanced System Integration: Facilitates modernization of older systems through standardized interfaces.

Frequently Asked Questions (FAQ)

1. What is the main function of the 560SLI01 module?

   The 560SLI01 enables serial communication between ABB’s RTU560 and external field devices using RS-232 or RS-485 protocols.

2. Which protocols are supported by the 560SLI01?

   It supports industry-standard protocols including IEC 60870-5-101/103/104, MODBUS, and DNP3.

3. Can I configure the communication port as RS-232 or RS-485?

   Yes, each serial port on the 560SLI01 is software-configurable for either RS-232 or RS-485 operation.

4. Is the 560SLI01 hot-swappable?

   No, the module must be installed or removed with the system powered down to ensure safety and system integrity.

5. Does it require external power supply?

   No, it receives power directly from the RTU560 backplane.

6. How many serial devices can be connected to one 560SLI01?

   The unit has two serial channels, each capable of managing a single point-to-point or multipoint connection depending on RS-232/485 configuration.

7. Can this unit be used in outdoor substations?

   It is typically used in control cabinets; for outdoor use, environmental protection enclosures are required.

8. What is the warranty period?

   We provide one year warranty.

9. How is the firmware updated?

   Firmware updates are performed through the RTU560’s engineering tools, such as MicroSCADA or PCM600.

10. How can I verify that the 560SLI01 is transmitting data correctly?

    Operational status can be monitored via LED indicators on the RTU panel and through system diagnostics in the configuration software, confirming active and error-free communication.
