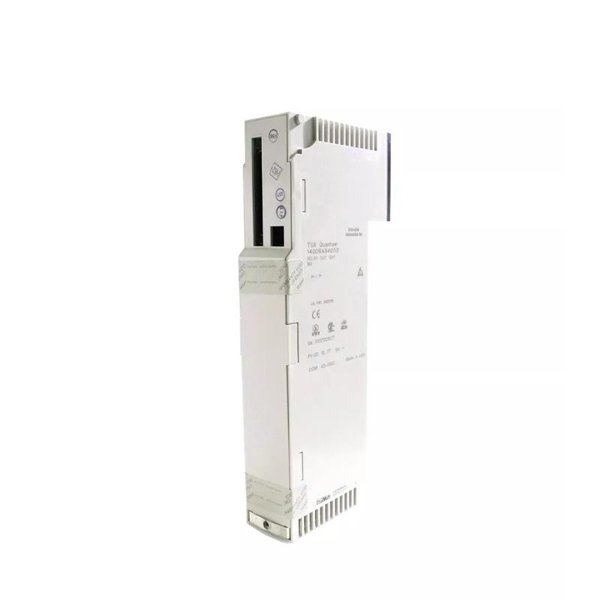

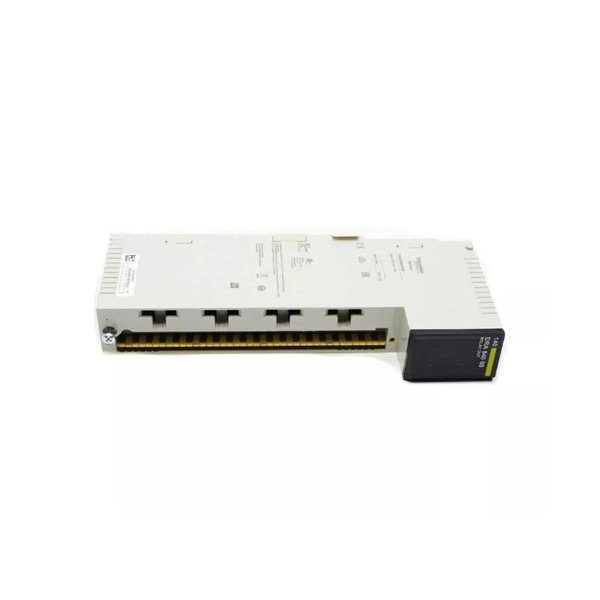

Schneider 140DRA84000 Discrete Output Module

The Schneider 140DRA84000 is a Discrete Output Module designed for integration into Modicon Quantum PLC systems. It is part of Schneider Electric’s renowned Quantum series, offering high-performance control of digital actuators such as relays, solenoids, and motor starters. This module is suitable for industrial automation, where reliability, speed, and efficiency are critical.

With 32 output channels, the 140DRA84000 ensures fast, secure, and reliable switching of discrete outputs, supporting applications across industries such as manufacturing, energy, oil & gas, water treatment, and more. Its easy integration into the Modicon Quantum platform makes it a preferred choice for various applications.

Product Specifications

Product Applications

The Schneider 140DRA84000 is commonly used in a variety of industrial settings where the ability to control discrete outputs is essential. Some of the key applications include:

• Industrial Manufacturing

  • Used for controlling production lines, motors, and machinery in automated manufacturing plants.

• Energy & Power Generation

  • It controls equipment such as switchgears, circuit breakers, and other electrical devices in power generation plants.

• Oil & Gas Industry

  • Ideal for controlling valves, pumps, and actuators in oil rigs and refineries.

• Water and Wastewater Treatment

  • Controls pumps, valves, and other equipment used in water management systems.

• Building Automation

  • Used for managing HVAC systems, lighting, and security devices in smart building projects.

• Food and Beverage Industry

  • Commonly used to control actuators, filling machines, and packaging systems in automated food production.

Product Advantages

1. High-Speed Performance

   • Response time of less than 1ms, making it ideal for applications requiring rapid signal switching.

2. Robust Isolation

   • 1500V isolation between channels prevents electrical interference and improves system stability.

3. Compact Design

   • With dimensions of 103.9 × 40.3 × 250 mm, it saves valuable panel space while delivering reliable performance.

4. High Load Handling

   • Supports output currents of 0.5A per channel, suitable for controlling a wide range of industrial actuators.

5. Durability in Harsh Environments

   • Resistant to shock (15g) and vibration (1g), ensuring reliable operation in industrial conditions.

6. Integrated Diagnostics

   • Features status LEDs for each channel, providing real-time diagnostic information for easy troubleshooting.

7. Wide Operating Temperature Range

   • Operates in a temperature range of 0°C to +60°C, making it versatile for various industrial environments.

8. Hot-Swappable Design

   • The module can be replaced without shutting down the system, minimizing downtime during maintenance.

9. Easy Integration with Modicon Quantum PLCs

   • Seamlessly integrates into Modicon Quantum automation systems, reducing setup time.

10. Global Certifications

• Fully certified with CE, UL, and CSA, ensuring compliance with global safety and quality standards.
