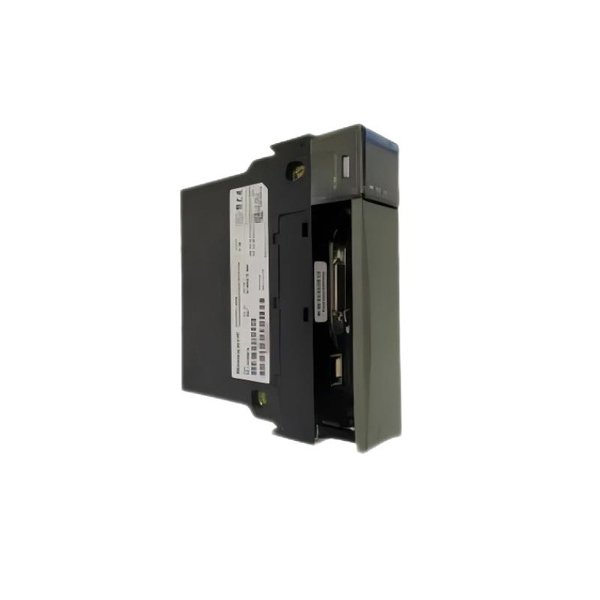

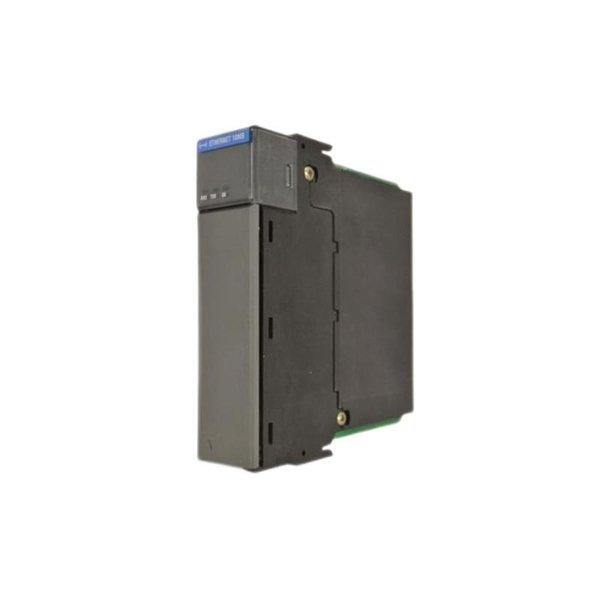

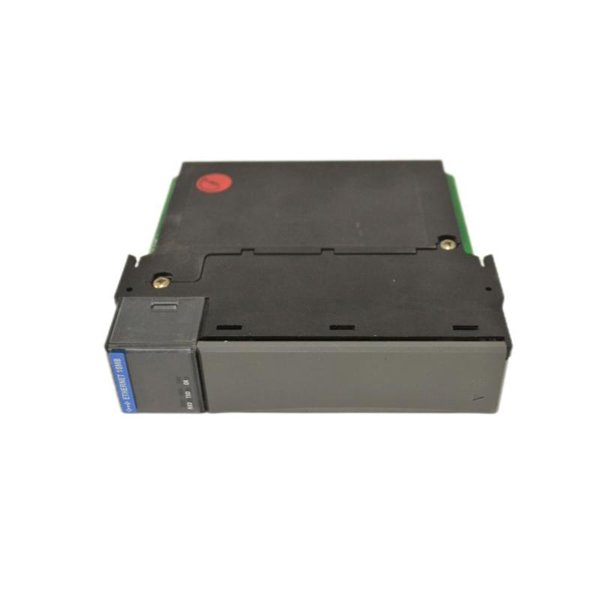

Honeywell TC-CEN011 Ethernet Interface Module

The Honeywell TC-CEN011 is an advanced Ethernet Interface Module designed to provide seamless communication between control systems and various industrial devices over Ethernet networks. As part of Honeywell’s control system portfolio, this module allows for real-time data exchange, remote monitoring, and system integration, ensuring high-speed and reliable communication in industrial applications.

With its compact dimensions of 120 x 130 x 40 mm and lightweight design (weighing 0.3 kg), the TC-CEN011 module is easy to install and integrates efficiently into existing control networks. It is built to handle high-demand environments, offering robust connectivity and compatibility with a wide range of Honeywell control systems and third-party devices. The module ensures minimal downtime and optimal data throughput, which is essential in process control, manufacturing automation, and other mission-critical applications.

Product Parameters

Product Applications

The Honeywell TC-CEN011 Ethernet Interface Module is widely used in industries that require reliable communication between control systems and devices over Ethernet. Its applications include:

• Industrial Automation: The TC-CEN011 is used to integrate field devices such as sensors, actuators, and PLCs with Honeywell’s control systems, enabling seamless data flow across the factory floor.

• Process Control Systems: In industries such as chemical processing, oil and gas, and water treatment, the module connects distributed control systems (DCS) to the Ethernet network, allowing for real-time monitoring and control.

• Manufacturing Execution Systems (MES): The module facilitates communication between the MES and production equipment, improving efficiency and data accuracy in manufacturing environments.

• Building Automation: The module is used in building management systems to connect HVAC, lighting, and security systems, allowing centralized control and monitoring.

• Telecommunications Infrastructure: The TC-CEN011 can be deployed to connect telecom systems, enabling seamless communication between telecom equipment and control systems.

• Energy Management: The module integrates renewable energy systems, such as solar panels and wind turbines, with the control system, ensuring optimized energy usage and monitoring.

Product Advantages

• Seamless Ethernet Connectivity: The TC-CEN011 provides robust Ethernet connectivity, supporting 10/100 Mbps data transmission, which ensures fast and reliable communication in demanding environments.

• Compact Design: With a compact size of 120 x 130 x 40 mm and a weight of just 0.3 kg, the module is easily integrated into control panels or network setups without occupying excessive space.

• Wide Compatibility: The module supports Modbus TCP/IP and Ethernet/IP protocols, making it compatible with a wide range of Honeywell systems and third-party devices, ensuring flexibility in system design and implementation.

• DIN Rail Mounting: The TC-CEN011 is designed for easy installation on DIN rails, a widely used mounting standard in industrial automation systems, making it ideal for integration into control panels.

• High Reliability: The module is built to withstand harsh industrial environments, with an operating temperature range of -20°C to +60°C and protection against high humidity levels (5% to 95% RH).

• UL and CE Certified: The TC-CEN011 is certified for use in a wide range of industrial applications, ensuring compliance with international safety and quality standards.

• Low Power Consumption: Operating on a 24 VDC power supply, the module is energy-efficient, reducing the overall energy footprint of industrial systems.

• Easy Integration: Whether used in new installations or retrofitting existing systems, the TC-CEN011 simplifies the process of connecting various devices to a centralized Ethernet-based network.

• Real-Time Monitoring: The module enables real-time data exchange between control systems and field devices, providing up-to-date information for informed decision-making and timely process adjustments.

FAQs

Q1: What are the dimensions of the Honeywell TC-CEN011 module?

A1: The dimensions of the TC-CEN011 are 120 x 130 x 40 mm.

Q2: How much does the TC-CEN011 weigh?

A2: The TC-CEN011 weighs 0.3 kg, making it lightweight and easy to handle during installation.

Q3: What is the power supply requirement for the TC-CEN011?

A3: The TC-CEN011 operates with a 24 VDC power supply.

Q4: What types of Ethernet standards are supported by the TC-CEN011?

A4: The module supports IEEE 802.3 and IEEE 802.3u Ethernet standards.

Q5: What communication protocols does the TC-CEN011 support?

A5: The TC-CEN011 supports Modbus TCP/IP and Ethernet/IP protocols for communication.

Q6: What is the data transmission speed of the TC-CEN011?

A6: The module supports 10/100 Mbps data transmission speeds.

Q7: What is the temperature range for operating the TC-CEN011?

A7: The TC-CEN011 operates in a temperature range of -20°C to +60°C.

Q8: Can the TC-CEN011 be mounted on a DIN rail?

A8: Yes, the TC-CEN011 is designed to be mounted on DIN rails for easy installation in control panels.

Q9: Is the TC-CEN011 certified for industrial use?

A9: Yes, the TC-CEN011 is UL and CE certified, ensuring it meets international safety and quality standards.

Q10: What is the relative humidity range for the TC-CEN011?

A10: The module can operate in environments with 5% to 95% relative humidity, without condensation.
