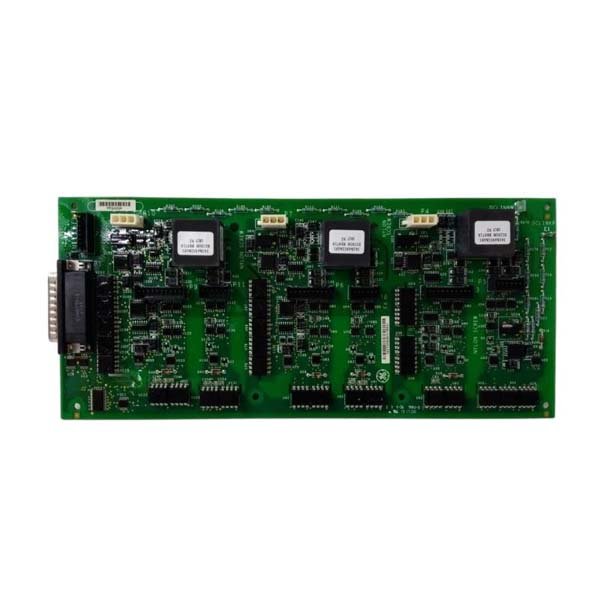

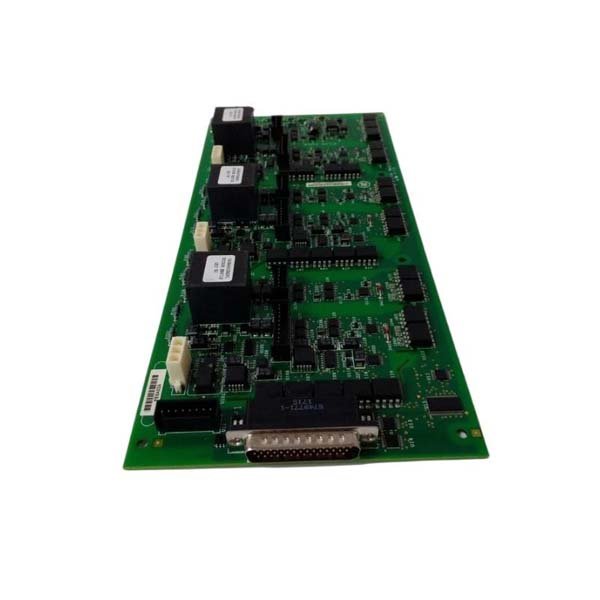

General Electric IS210AEBIH1BED Analog Input Expansion Module

The IS210AEBIH1BED is a high-performance analog input expansion module from GE, designed for Mark VIe control systems. It allows engineers and operators to seamlessly extend the number of analog inputs for monitoring critical process parameters. Built with precision and reliability in mind, this module ensures accurate signal acquisition while maintaining signal integrity across complex control architectures.

Ideal for plants that require additional input channels without compromising the speed or accuracy of their existing Mark VIe systems.

Technical Specifications

Applications

The IS210AEBIH1BED is widely used in:

• Extending analog input capacity in Mark VIe systems

• Capturing temperature, pressure, and flow measurements

• Upgrading control systems for modern industrial plants

• Retrofits where additional process inputs are required

• Monitoring critical plant equipment for reliability and safety

Its high-resolution input channels and signal stability make it an essential component for accurate process control.

Key Benefits

• Reliable, precise analog signal acquisition

• Seamless integration with existing Mark VIe racks

• Supports a variety of analog input types and ranges

• Reduces downtime during system expansion or retrofits

• Robust construction ensures consistent performance in harsh environments

FAQs

1. What is the primary function of IS210AEBIH1BED?

   To provide additional analog input channels for Mark VIe control systems.

2. Is it compatible with older Mark VI systems?

   It is designed specifically for Mark VIe systems; check compatibility before retrofit.

3. Does it require configuration after installation?

   Minimal setup may be needed to map the inputs to the control logic.

4. Can it handle both current and voltage analog signals?

   Yes, it supports 4–20 mA and 0–10 V signals.

5. Is calibration required?

   Standard system calibration is recommended for accuracy.

6. What indicates a failing module?

   Erratic or inconsistent input readings, loss of channel data.

7. Can it operate in high-temperature environments?

   Yes, within its specified –20°C to +65°C range.

8. Is hot-swapping allowed?

   No, power should be off before installation or replacement.

9. How many channels does the module support?

   Multiple analog input channels; exact number depends on system configuration.

10. Can it be used for critical plant monitoring?

    Yes, it is designed for high-reliability process monitoring applications.
