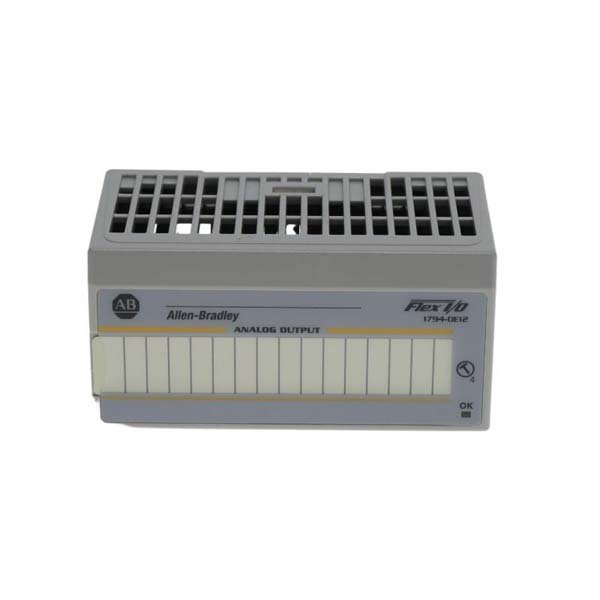

Allen-Bradley 1794-OE12 Analog Output Module

The Allen-Bradley 1794-OE12 is a 12-channel Analog Output Module designed for the FLEX I/O platform, providing precise analog voltage or current signals to control a wide range of industrial devices. This module is ideal for applications that demand high-resolution analog output control such as variable-speed drives, actuators, proportional valves, and process instrumentation.

The 1794-OE12 integrates seamlessly into distributed control systems, allowing compact and flexible I/O configurations. With 12 individually configurable channels, it offers exceptional flexibility for engineers managing complex analog signal processes in both standalone and networked architectures.

Detailed Technical Specifications

Typical Use Cases in Automation

The 1794-OE12 is frequently used in process and factory automation environments that require multiple, accurate analog outputs to control diverse field devices. Its distributed architecture allows easy integration into modular systems. Common applications include:

• Process Control Systems – generating analog reference signals for control loops.

• Motion and Drive Control – controlling variable frequency drives (VFDs) and servo amplifiers.

• Valve and Actuator Regulation – adjusting proportional valves for pressure or flow control.

• Temperature Control Systems – interfacing with PID controllers and analog setpoint devices.

• SCADA Integration – providing analog feedback to supervisory systems for monitoring.

Its modularity and flexibility make it suitable for industries such as chemical processing, water treatment, food & beverage, and power generation.

Advantages and Engineering Benefits

• High Channel Density: 12 analog outputs in a compact FLEX I/O form factor.

• Wide Signal Range: Supports both voltage and current outputs with configurable ranges.

• Exceptional Accuracy: ±0.05% ensures stable and precise analog performance.

• Distributed I/O Architecture: Enables decentralized control, reducing cabinet wiring.

• Fast Update Rates: Ideal for applications requiring real-time analog adjustments.

• Rugged and Reliable: Designed for continuous industrial operation in harsh environments.

• Flexible Mounting: Compatible with various terminal bases for design versatility.

• Integrated Diagnostics: Simplifies fault detection and maintenance.

FAQs

1. What terminal base assemblies are compatible with the 1794-OE12?

   The module is compatible with 1794-TB3, 1794-TB3S, and 1794-TBN bases.

2. Can voltage and current channels be mixed on the same module?

   No, all channels must be configured for either voltage or current mode.

3. Does the module support overrange and underrange detection?

   Yes, it provides ±5% range support for diagnostic and calibration purposes.

4. Is the module hot-swappable?

   Yes, it can be replaced under power when used with proper system configuration and care.

5. What isolation exists between channels?

   Each output channel is isolated from system-level circuits but not from other channels.

6. How is the module calibrated?

   Calibration is factory set but can be software-adjusted via RSLogix 5000 or Studio 5000.

7. Can this module be used in hazardous locations?

   Yes, it is certified for Class I, Division 2 hazardous environments.

8. What’s the maximum load resistance in current mode?

   Up to 600 ohms per channel.

9. Is it compatible with ControlLogix or CompactLogix systems?

   Yes, when connected via an adapter such as 1794-AENTR or 1794-ACN15.

10. Can it generate both unipolar and bipolar signals?

    It supports unipolar outputs only (0–10V or 4–20 mA).
