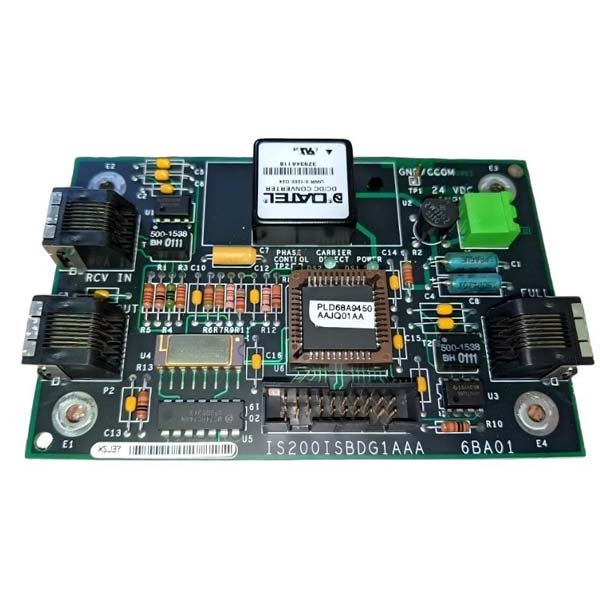

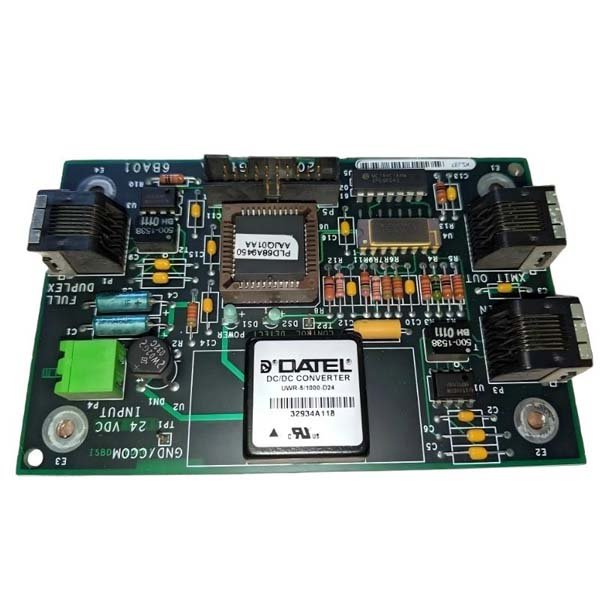

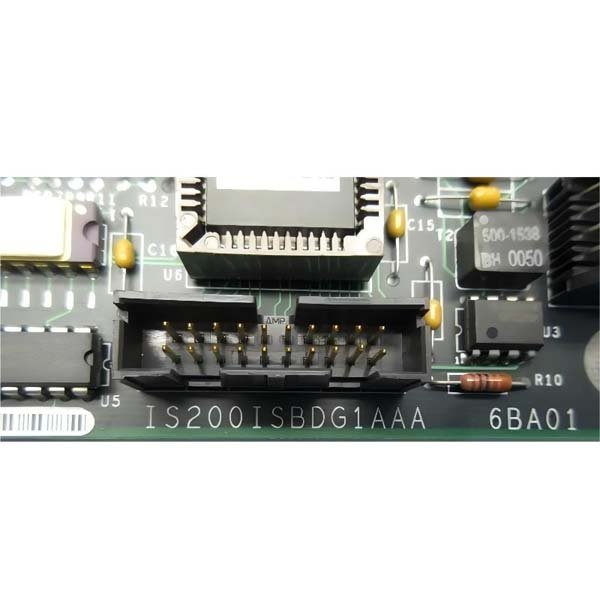

GE Fanuc IS200ISBDG1AAA Integrated Sensor Bridge & Diagnostic Module
Manufacturer:GE Fanuc
Product Number:IS200ISBDG1AAA
Product Type:Sensor Bridge & Diagnostic Module
Origin:USA
Dimensions:210 mm × 133 mm × 32 mm
Weight:0.68 kg
Views:101
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IS200ISBDG1AAA is an integrated sensor bridge and diagnostic module for Mark VI turbine and industrial drive systems. Designed to condition, bridge, and analyze analog sensor inputs, it provides a stable interface between field instrumentation and the control processor. Its primary purpose is to ensure accurate measurement transfer, while enabling early detection of potential system anomalies, helping operators maintain safe and efficient plant performance.
Technical Specifications & Physical Dimensions
| Specification | Details |
|---|---|
| Brand | GE |
| Model | IS200ISBDG1AAA |
| Module Type | Sensor Bridge & Diagnostic Module |
| Functional Role | Analog bridging, signal conditioning, diagnostic reporting |
| Compatible Systems | Mark VI turbine and industrial drive platforms |
| Input Types | Temperature, pressure, vibration, current, voltage |
| Output to Controller | Conditioned analog signals |
| PCB Construction | Industrial-grade, coated board |
| Dimensions (L × W × H) | 210 mm × 133 mm × 32 mm |
| Weight | 0.68 kg |
| Operating Temperature | –20°C to +65°C |
| Mounting Method | Rack-mounted, keyed connector alignment |
Typical Applications
The IS200ISBDG1AAA is suitable in systems where multiple analog sensor signals must be accurately conditioned and monitored:
-
Turbine vibration and temperature monitoring circuits
-
Multi-sensor feedback in industrial drive cabinets
-
Condition-based maintenance systems
-
Retrofits replacing older ISBD revisions
-
Control systems requiring precise sensor bridging
Its integrated design simplifies wiring complexity and ensures high-fidelity signal transmission for critical control and protection loops.
Key Operational Advantages
This module improves measurement reliability through signal isolation and noise suppression. Operators benefit from consistent diagnostic outputs that reduce false alarms and allow early detection of potential equipment issues. The rugged PCB and protective coating support extended service life, while maintaining stability under variable temperature and electrical environments. Its compact form factor also allows efficient installation within dense control cabinets.
FAQs
-
What is the primary purpose of IS200ISBDG1AAA?
It bridges and conditions multiple analog sensor inputs for accurate control system monitoring.
-
Is it compatible with Mark VIe systems?
Yes, it integrates across Mark VI and Mark VIe platforms.
-
Does it provide diagnostic functionality?
Yes, it supplies conditioned sensor signals and basic diagnostic feedback.
-
Can it replace older ISBD revisions?
In most cases yes, but verification with system wiring and rack layout is recommended.
-
Does it require calibration?
Factory calibration is sufficient for standard installation; field adjustment is rarely needed.
-
What indicates module failure?
Erratic sensor readings, loss of signal, or unexpected diagnostic alerts.
-
Is it resistant to electrical noise?
Yes, isolation and filtering reduce susceptibility to EMI.
-
Can it operate in high-vibration environments?
Yes, designed for industrial turbine cabinet conditions.
-
Is firmware required?
No, it operates as a hardware-based analog conditioning and diagnostic interface.
-
Is field repair recommended?
Replacement is the standard maintenance approach; component-level repair is not advised.
