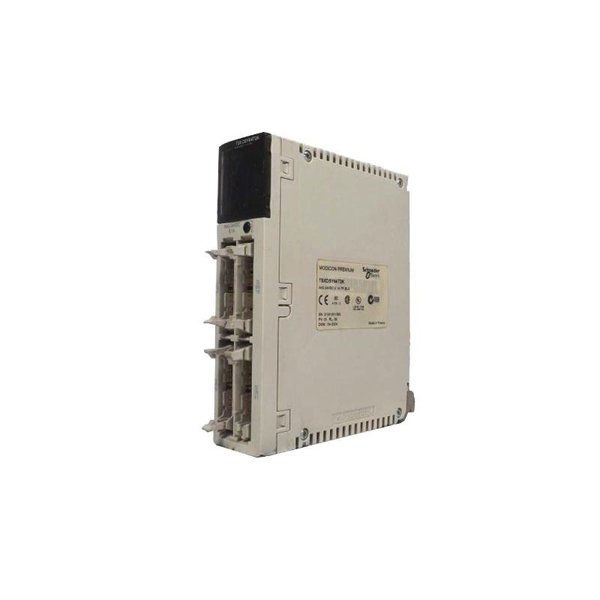

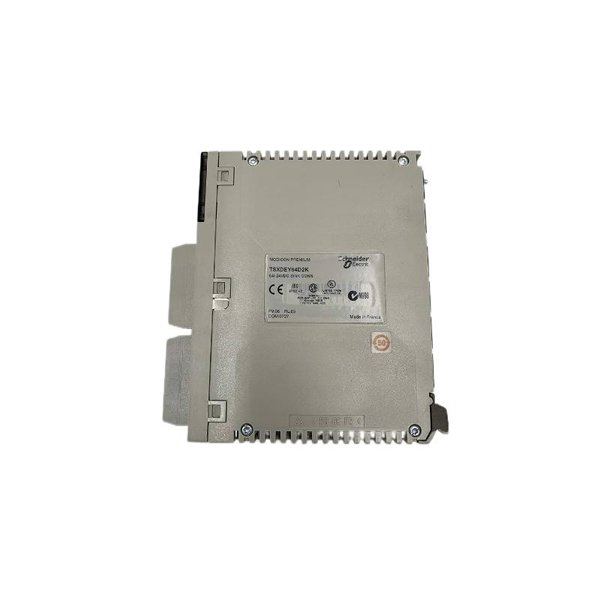

Schneider TSXDEY64D2K Discrete Input Modules

The Schneider TSXDEY64D2K is a powerful and versatile I/O module designed for advanced automation systems. It is part of the Modicon Premium series and is primarily used for industrial applications, offering reliable communication, high speed, and excellent flexibility. The device serves as a bridge between various automation equipment and control systems, enabling data exchange and input/output operations. The robust construction of this module makes it ideal for both small-scale and complex industrial applications.

The TSXDEY64D2K I/O module is specifically engineered to meet the requirements of both discrete and analog control systems, making it an essential component in industries such as manufacturing, process control, and industrial automation.

Product Specifications

Product Applications

The Schneider TSXDEY64D2K is highly adaptable and can be used across a wide range of industrial sectors, including but not limited to:

1. Manufacturing Automation: Ideal for controlling automated production lines, conveyors, and robotic systems.

2. Process Control: Effective in managing processes such as batching, mixing, or fluid handling.

3. Building Automation: Suitable for controlling HVAC systems, lighting, and other energy-efficient systems.

4. Industrial Equipment Control: Ensures proper I/O operations in large-scale industrial machinery.

5. Energy Management Systems: Can be integrated into systems for monitoring and controlling energy usage.

The module’s high-speed communication capabilities ensure seamless integration with various control systems, making it a reliable solution for any industrial automation project.

Advantages of Schneider TSXDEY64D2K

• High I/O Density: With 64 digital I/O points, the TSXDEY64D2K offers excellent scalability for complex systems requiring high I/O counts.

• Flexible Communication Options: Supports Modbus and Ethernet communication, allowing for versatile connectivity to different devices and controllers.

• Compact Design: Its compact size and easy DIN rail mounting system make it suitable for space-constrained environments.

• Robust Build Quality: With an operating temperature range of -25°C to +70°C, this module can perform reliably even in harsh industrial environments.

• High Reliability: The module is built to meet industrial-grade standards, ensuring long-term durability and reduced downtime in critical applications.

• Easy Integration: Its compatibility with Schneider Electric’s Modicon PLC systems and other automation components makes it easy to integrate into existing setups.

FAQs

1. What is the operating voltage range for the Schneider TSXDEY64D2K?

   • The operating voltage range is 24V DC.

2. Can I use this module in harsh environmental conditions?

   • Yes, the module is designed for use in industrial environments and can operate within a temperature range of -25°C to +70°C.

3. How many digital I/O points does this module support?

   • The TSXDEY64D2K supports 64 digital I/O points.

4. What is the communication protocol used by the Schneider TSXDEY64D2K?

   • This module supports Modbus and Ethernet communication protocols.

5. How is the module mounted?

   • The TSXDEY64D2K is mounted on a DIN rail, making installation easy and secure.

6. What is the protection class of the Schneider TSXDEY64D2K?

   • The module has an IP20 protection class.

7. What industries can benefit from the use of the TSXDEY64D2K?

   • It is widely used in industries such as manufacturing automation, process control, building automation, and industrial equipment control.

8. What is the weight of the TSXDEY64D2K module?

   • The weight of the module is 0.4 kg.

9. Is this module compatible with Schneider Modicon PLCs?

   • Yes, it is fully compatible with Schneider Electric’s Modicon PLC systems.

10. Can the TSXDEY64D2K be used in energy management applications?

• Yes, it can be integrated into energy management systems for monitoring and controlling energy usage in industrial settings.
