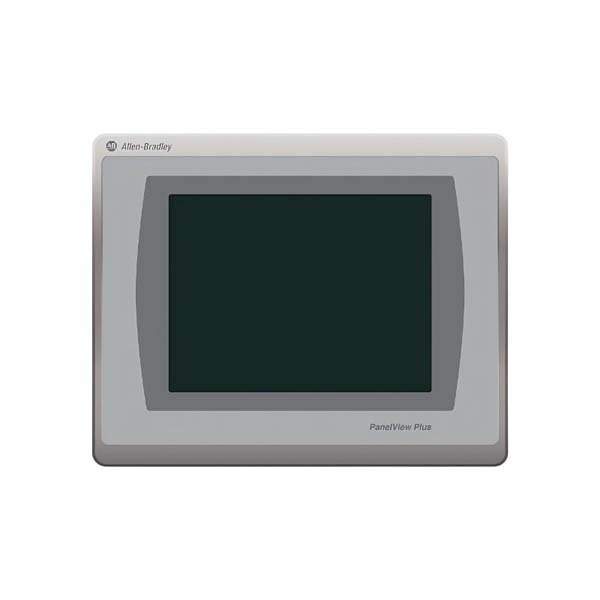

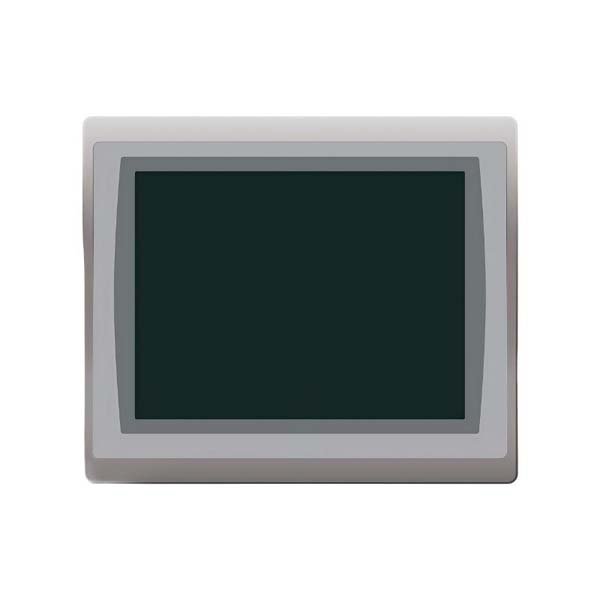

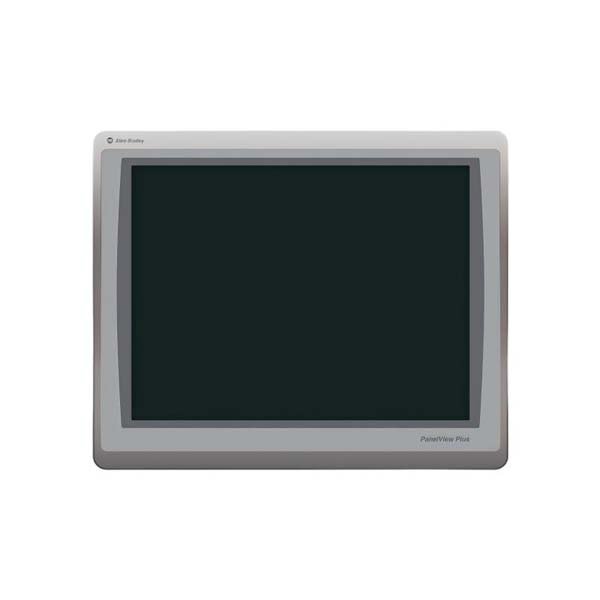

Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 Performance HMI Module

The Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 Performance HMI Module is an advanced operator interface built for demanding industrial visualization tasks. Designed to deliver high-speed data access, intuitive control, and flexible network integration, this module provides the power and reliability required for modern manufacturing environments. With its bright, multi-touch 10.4-inch display and enhanced communication options, it brings both clarity and control precision to plant-floor operations.

Detailed Technical Specifications

Industrial Use Cases

• Advanced Process Control: Ideal for controlling chemical, food & beverage, and water treatment systems.

• Machine Interface: Provides operators with intuitive control and diagnostics for automated machines.

• Packaging and Material Handling: Real-time performance visualization and alarm handling.

• Plant-Wide Monitoring: Integrates seamlessly with FactoryTalk View SE and CompactLogix/ControlLogix systems.

• Batch Processing: Suitable for regulated industries requiring traceability and event recording.

Key Engineering Advantages

• Enhanced Visualization: High-brightness display ensures visibility in bright plant conditions.

• Fast Startup and Data Access: Dual-core processing minimizes lag and ensures responsive operation.

• Seamless Integration: Full compatibility with Rockwell’s Logix family and FactoryTalk suite.

• Durable Construction: Industrial-grade materials resist dust, vibration, and humidity.

• Multi-Network Capability: Dual Ethernet ports simplify network segmentation and redundancy.

• Efficient Power Use: Operates on 24 VDC, ideal for panel-based power systems.

• Expandable Storage: SD slot enables data logging and recipe management.

• User-Friendly Configuration: Supports USB-based application loading and firmware update.

• Operator Safety: Meets NEMA 4X/IP66 ratings for harsh environments.

• Lifecycle Longevity: Supported under Rockwell Automation’s long-term product lifecycle program.

FAQs

1. Q: Which software is used to configure the 2711P-T10C22D9P HMI?

   A: It uses FactoryTalk View Studio Machine Edition for development and runtime configuration.

2. Q: Does this HMI support multi-touch functionality?

   A: No, it uses an analog resistive touchscreen suitable for gloved operation.

3. Q: Can the HMI communicate directly with CompactLogix and ControlLogix controllers?

   A: Yes, it communicates seamlessly via EtherNet/IP.

4. Q: Is data logging supported on this model?

   A: Yes, using the onboard SD card slot for data and alarm logs.

5. Q: What is the maximum resolution supported?

   A: 800 × 600 pixels (SVGA).

6. Q: Does it support USB peripherals?

   A: Yes, it has two USB ports for mouse, keyboard, or USB drives.

7. Q: Can this HMI be remotely monitored?

   A: Yes, via VNC server support within the FactoryTalk runtime environment.

8. Q: What is the rated supply voltage for operation?

   A: 24 VDC ±10%.

9. Q: Does it support redundant Ethernet networking?

   A: Yes, with dual Ethernet ports supporting Device Level Ring (DLR).

10. Q: What IP/NEMA rating does it have?

    A: IP66 and NEMA Type 4X/12/13 for front panel protection.
