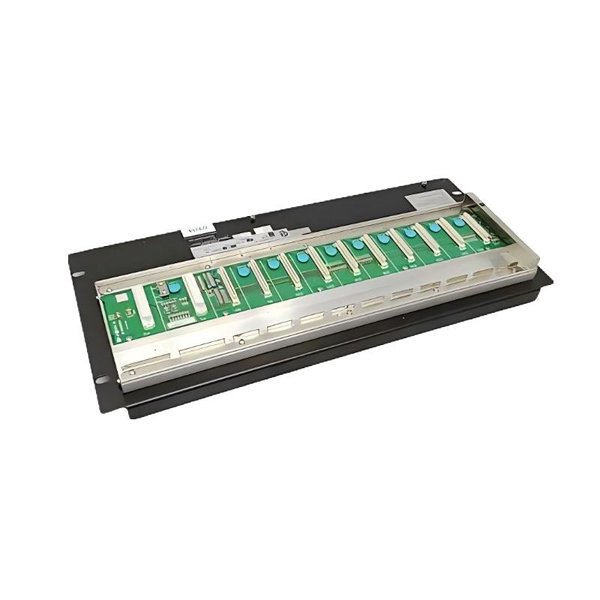

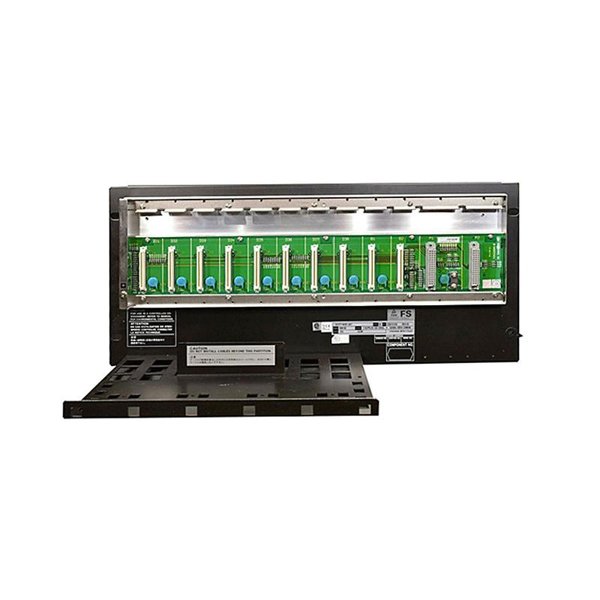

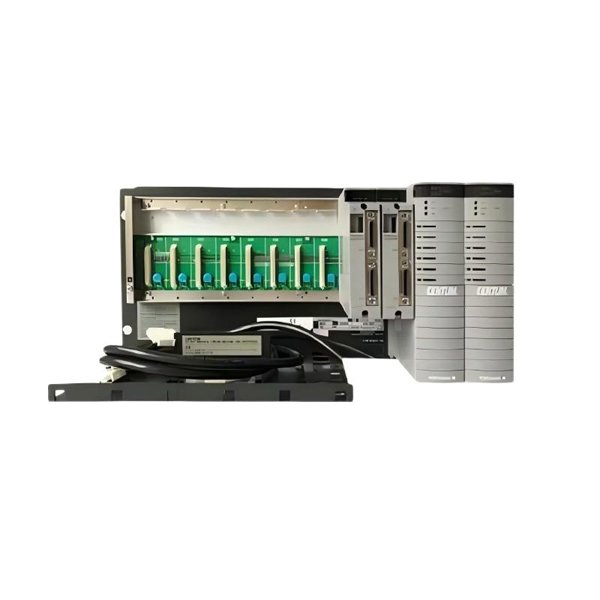

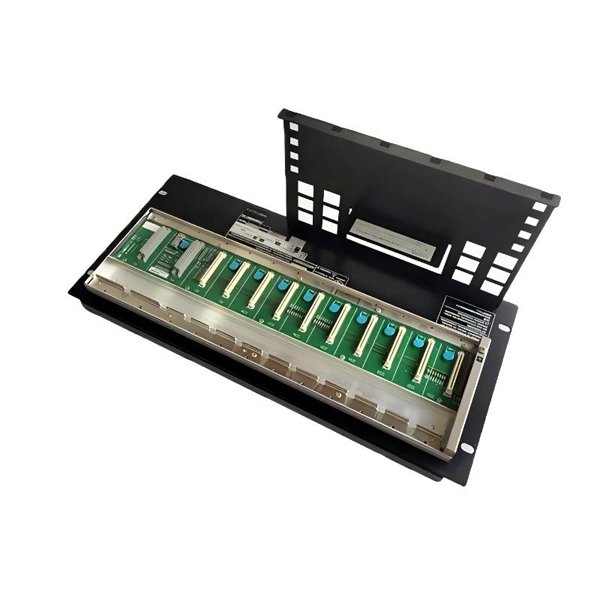

Yokogawa ANB11D-225/BU2A Fiber Optic ESB Bus Node Unit

The Yokogawa ANB11D-225/BU2A Fiber Optic ESB Bus Node Unit is a high-performance, highly reliable device designed to enable seamless communication within industrial systems. This unit provides secure and efficient data transmission using fiber optic technology, offering long-distance communication without the interference and signal degradation commonly associated with traditional copper-based networks.

Built for environments requiring high uptime, the ANB11D-225/BU2A is engineered to provide real-time, high-speed data transfer while ensuring system stability. This node unit is essential for industries like process control, manufacturing, automation, and energy management, where communication reliability is critical for operational efficiency.

By incorporating fiber optic communication, the ANB11D-225/BU2A ensures greater bandwidth and faster data transfer, making it ideal for applications that need to process large volumes of data over extensive network distances. The unit is also designed to integrate easily into existing systems, offering a high degree of flexibility and scalability.

Product Parameters

Product Applications

The Yokogawa ANB11D-225/BU2A Fiber Optic ESB Bus Node Unit is designed for a wide range of industrial applications that demand reliable and high-speed communication. Key applications include:

• Long-Distance Communication: Perfect for transmitting data over long distances without loss of signal quality, making it ideal for large-scale, geographically dispersed systems.

• Industrial Automation: Facilitates smooth communication between controllers, sensors, and actuators within automated industrial processes, ensuring efficient operation.

• SCADA Systems: Essential in SCADA environments, the unit allows for remote monitoring and control of assets across large industrial plants.

• Distributed Control Systems (DCS): Used in DCS systems, it ensures real-time communication and control of complex processes in industries such as oil & gas, petrochemicals, and chemicals.

• Process Control: Enables the smooth transmission of data necessary for precise control in process industries, ensuring safe and efficient production.

• Energy Management: Ideal for optimizing energy consumption and monitoring electrical systems in large facilities or power grids.

Product Advantages

• High-Speed Fiber Optic Communication: The ANB11D-225/BU2A utilizes fiber optic cables, ensuring high-speed, high-bandwidth communication that supports fast and secure data transmission.

• Long-Distance Data Transmission: Fiber optics enable communication over much longer distances than traditional copper cables, making it ideal for wide-area networks.

• Reduced Interference: With immunity to electromagnetic interference (EMI), fiber optics ensure reliable data transmission in electrically noisy environments, reducing downtime and signal errors.

• Scalability: The ANB11D-225/BU2A can easily integrate into large-scale systems, supporting the addition of more nodes and devices as the system grows.

• Compact Design: The rack-mountable form factor allows for easy installation in control rooms or server racks, saving space and improving system organization.

• Robust and Durable: Built to withstand harsh industrial environments, the unit is rated for operation in a wide temperature range of -10°C to +60°C, making it suitable for diverse applications.

FAQ

1. What communication method does the ANB11D-225/BU2A use?

The ANB11D-225/BU2A uses fiber optic communication, which provides high-speed data transfer over long distances without signal loss.

2. What protocols are supported by this unit?

It supports TCP/IP and Modbus communication protocols, which are widely used in industrial applications for seamless integration.

3. What is the required power supply for the ANB11D-225/BU2A?

The unit requires a 24 VDC ±10% power supply for operation.

4. How does fiber optic communication benefit industrial systems?

Fiber optics offer higher bandwidth, longer transmission distances, and immunity to electromagnetic interference, making them ideal for high-speed, secure data communication.

5. Can the ANB11D-225/BU2A be used with SCADA systems?

Yes, the unit is fully compatible with SCADA systems, enabling remote monitoring, control, and data acquisition from remote assets.

6. What is the maximum data transfer rate supported by this unit?

The ANB11D-225/BU2A supports a maximum data transfer rate of 100 Mbps, making it suitable for high-volume data transmission.

7. What is the temperature range within which the ANB11D-225/BU2A can operate?

The unit operates within a temperature range of -10°C to +60°C, ensuring reliable performance in various industrial environments.

8. How is the unit mounted?

The ANB11D-225/BU2A is designed for rack mounting, making it suitable for integration into standard control panels and server racks.

9. What is the protection rating of the ANB11D-225/BU2A?

The ANB11D-225/BU2A has an IP20 protection rating, which means it is protected from solid objects larger than 12mm but is not resistant to water.

10. Can the ANB11D-225/BU2A be integrated into an existing Ethernet network?

Yes, the ANB11D-225/BU2A is designed to be compatible with existing Ethernet networks, facilitating easy integration into your current infrastructure.
