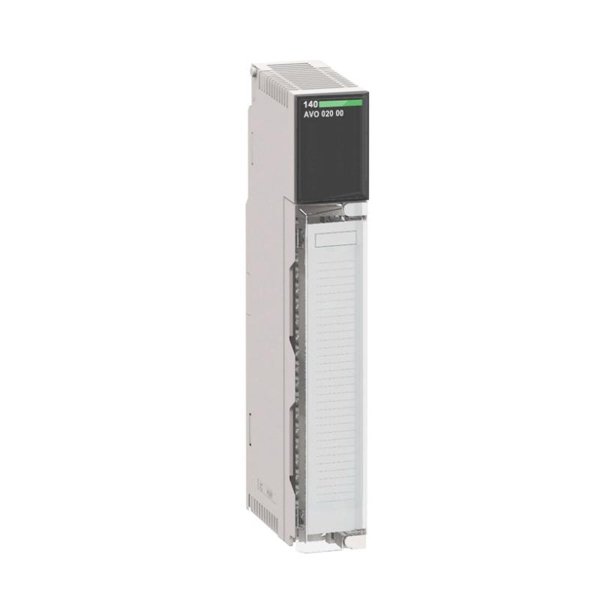

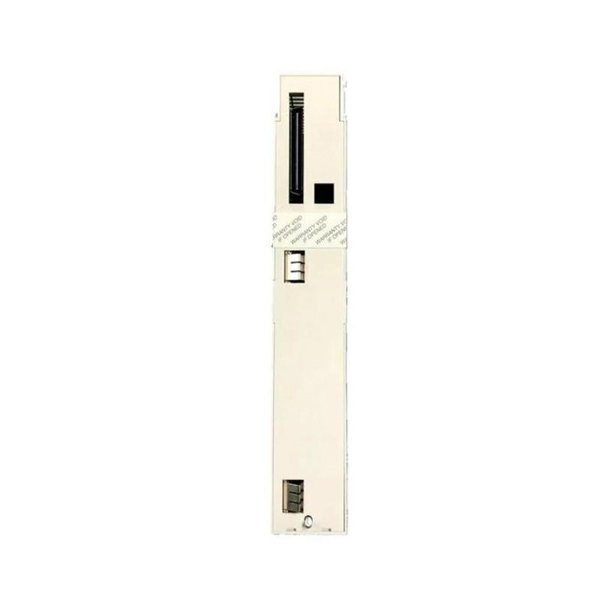

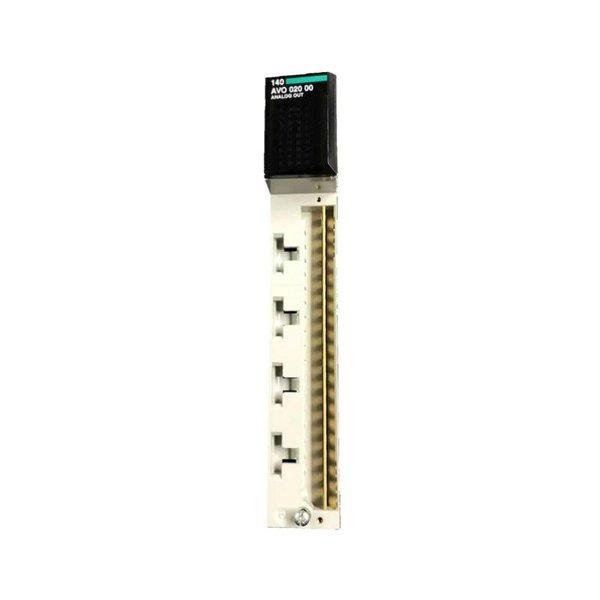

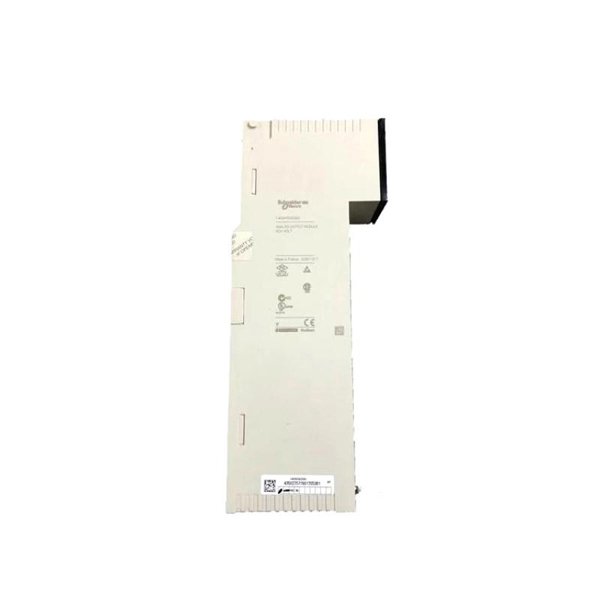

Schneider 140AVO02000 Analog Output Module
Manufacturer:Schneider
Product Number:140AVO02000
Product Type:Analog Output Module
Origin:France
Dimensions:103.9 × 40.3 × 250 mm
Weight:0.3 kg
Views:75
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider Electric 140AVO02000 is an analog output module from the Modicon Quantum series, designed to convert digital signals from a Programmable Logic Controller (PLC) into analog voltage signals. This functionality is essential for controlling various industrial processes that require precise voltage modulation.
Product Specifications
| Parameter | Specification |
|---|---|
| Analog Output Channels | 4 |
| Output Voltage Ranges | ±10 V (≥ 1000 Ω load), ±5 V (≥ 500 Ω load), 0–10 V (≥ 1000 Ω load), 0–5 V (≥ 500 Ω load) |
| Resolution | 12 bits |
| Accuracy Error | ±0.15% of full scale at 25°C |
| Linearity | ±1 Least Significant Bit (LSB) |
| Temperature Drift | 0.003% of full scale/°C (unipolar), 0.004% of full scale/°C (bipolar) |
| Channel Isolation | 500 V AC for 1 minute |
| Bus Isolation | 780 V AC for 1 minute |
| Update Time | 3 ms |
| Setting Time | 700 µs to ±0.1% of final value |
| Bus Current Requirement | 700 mA |
| Power Dissipation | 4.5 W |
| Dimensions (H x W x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Operating Temperature | 0–60°C |
| Storage Temperature | -40–85°C |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤ 5000 m |
| Certifications | FM Class 1 Division 2, cUL |
| Standards Compliance | UL 508, CSA C22.2 No 142 |
Product Applications
The 140AVO02000 module is utilized in various industrial applications, including:
-
Process Control Systems: Regulating variables such as temperature, pressure, and flow rate by providing precise analog voltage outputs to actuators and control valves.
-
Motion Control: Controlling the speed and position of motors in automation systems through accurate voltage signals.
-
Data Acquisition Systems: Interfacing with sensors and transducers to monitor and control industrial processes.
Product Advantages
-
High Precision: With a 12-bit resolution and minimal accuracy error, the module ensures precise control over analog outputs.
-
Robust Isolation: Channel and bus isolation enhance system reliability by protecting against electrical interference.
-
Fast Response: Quick update and setting times enable real-time control in dynamic industrial environments.
-
Environmental Resilience: Designed to operate in a wide range of temperatures and humidity levels, suitable for harsh industrial conditions.
