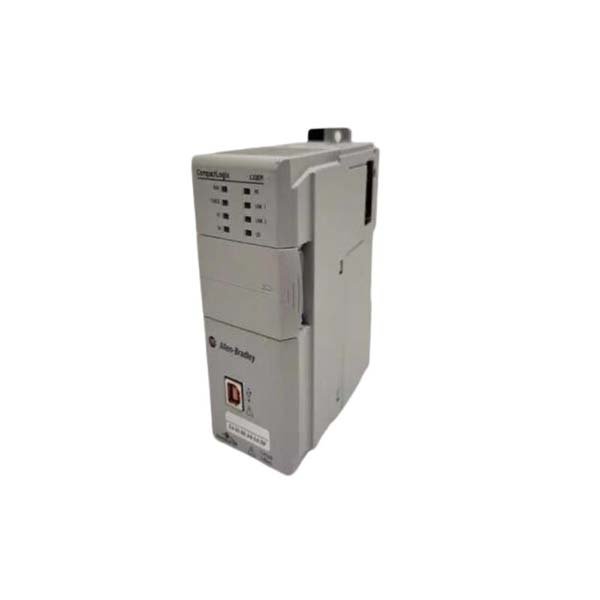

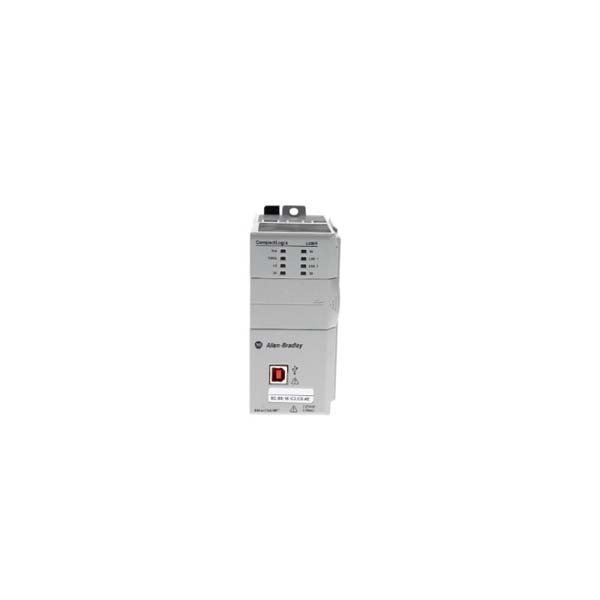

Allen-Bradley 1769-L33ER CompactLogix 5370 Controller Module

The Allen-Bradley 1769-L33ER is a high-performance controller from the CompactLogix 5370 L3 family, designed for medium-scale automation and control systems. Featuring 2 MB of user memory, dual Ethernet ports with DLR (Device Level Ring) capability, and a USB configuration interface, this controller offers the ideal balance between power, connectivity, and scalability. Its modular structure supports local and distributed I/O configurations, making it suitable for machine builders, OEMs, and process automation environments that require reliable and efficient control.

Technical Specifications

Applications

The 1769-L33ER is used in a wide range of industrial automation and process control systems where performance, scalability, and reliability are critical:

• Machine Control – Ideal for packaging, assembly, and material handling systems.

• Process Automation – Chemical, pharmaceutical, and food industries requiring accurate control.

• Factory Automation – Integration of multiple machines over EtherNet/IP networks.

• Energy & Utilities – Managing distributed control systems and data logging.

• OEM Systems – Compact and modular design simplifies system integration.

• Safety and Redundant Systems – Supports ring network topologies to improve uptime.

Advantages

• Dual Ethernet Ports with DLR: Provides redundant network connectivity, reducing downtime in case of network failure.

• Compact and Modular Design: Saves panel space while maintaining system scalability.

• High-Speed Communication: Dual 10/100 Mbps ports ensure fast data exchange between controllers and I/O modules.

• Efficient Memory Management: 2 MB of memory supports mid-size applications with ease.

• Flexible Integration: Compatible with both Compact I/O and distributed EtherNet/IP nodes.

• Rugged Industrial Build: Designed to operate reliably under vibration, temperature, and electrical noise.

• Simplified Programming: Fully supported by Studio 5000 Logix Designer, enabling seamless programming and diagnostics.

• No Battery Maintenance: Uses an SD card for non-volatile data storage, eliminating battery dependency.

FAQs(10)

1. Q: What is the main difference between 1769-L33ER and 1769-L30ER?

   A: The L33ER offers double the memory capacity (2 MB vs 1 MB) and supports more I/O nodes, suitable for larger control systems.

2. Q: Can the dual Ethernet ports be used for separate networks?

   A: No, they function as part of a Device Level Ring (DLR) network or linear topology, not as independent interfaces.

3. Q: Does the controller support firmware updates via USB?

   A: Yes, firmware can be loaded through the USB port or via the SD card.

4. Q: What is the maximum number of local I/O modules supported?

   A: Up to 16 modules can be directly attached to the controller base.

5. Q: Can I use this controller for motion control applications?

   A: Yes, it supports EtherNet/IP-based motion devices for coordinated motion control.

6. Q: Does the controller have built-in diagnostics?

   A: Yes, real-time diagnostics and event logs are accessible through Studio 5000 software.

7. Q: How do I achieve redundancy using this controller?

   A: Use the dual Ethernet ports in a DLR configuration for network-level redundancy.

8. Q: Is the SD card required for basic operation?

   A: No, it’s optional but recommended for automatic program recovery and data logging.

9. Q: What kind of isolation does the L33ER offer?

   A: Basic insulation of 30 V continuous between system and communication circuits.

10. Q: What environmental certifications does it meet?

    A: It meets CE, UL, and cUL standards for industrial automation use.
