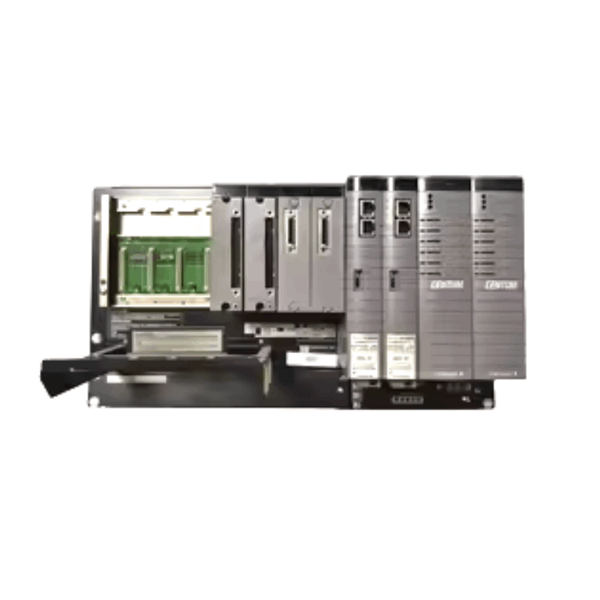

Yokogawa AFV30D Duplex Field Control Unit

The Yokogawa AFV30D is a high-performance field control unit module designed for integration within Yokogawa’s CENTUM VP distributed control systems (DCS). As part of the AFV series, this module plays a vital role in controlling and monitoring industrial processes by executing application control programs. It is known for its stability, processing speed, and ability to work in redundant configurations to ensure operational continuity in mission-critical environments. The AFV30D is commonly deployed in process industries such as oil & gas, power generation, petrochemical, and manufacturing plants.

The AFV30D supports various I/O modules and has high-speed communication capabilities with peer-to-peer linking and Vnet/IP networking. It ensures both real-time control and data acquisition while conforming to the highest standards of system reliability and availability.

Technical Specifications

Product Applications

The Yokogawa AFV30D is widely applied in numerous industries where stable, accurate, and flexible control systems are critical. Some of the primary application areas include:

• Oil & Gas: Refining, LNG terminals, pipeline control, offshore platforms

• Power Generation: Thermal, hydro, and nuclear power plant automation

• Petrochemical Plants: Chemical process control, batch control

• Pulp and Paper: Continuous manufacturing line automation

• Water Treatment Plants: Flow and chemical process control

• Pharmaceuticals: Batch and process validation with strict regulatory compliance

Product Advantages

• High Availability and Redundancy: The AFV30D supports dual redundant CPU configurations and network interfaces, ensuring system uptime and process continuity.

• Fast Processing Power: The dual 64-bit RISC processors handle complex control algorithms and real-time data efficiently.

• Scalable and Flexible Integration: Seamless compatibility with a broad range of I/O modules and subsystems allows for scalable design in large and small facilities alike.

• Robust Communication: Utilizes Vnet/IP, a high-speed and deterministic Ethernet protocol developed by Yokogawa, enabling reliable and fast data exchange.

• Secure and Reliable Operation: Designed with security features and industrial-grade hardware to resist harsh environments and cyber threats.

• Easy Maintenance and Diagnostics: Equipped with self-diagnostics and status indication functions, enabling quick fault detection and system maintenance.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the Yokogawa AFV30D module?

A1: The AFV30D functions as a field control unit (FCU) for managing control logic and communication in Yokogawa’s CENTUM VP systems.

Q2: Can the AFV30D be used in redundant configurations?

A2: Yes, it supports dual redundant CPU and network configurations to enhance system reliability.

Q3: Is the AFV30D compatible with legacy Yokogawa systems like CENTUM CS 3000?

A3: While optimized for CENTUM VP, backward compatibility with certain legacy I/O and systems may be supported via integration tools or migration strategies.

Q4: What is the typical power supply requirement for the AFV30D?

A4: The AFV30D operates with a 24 VDC power supply, typically provided through the base unit.

Q5: Can it operate in extreme temperature environments?

A5: The operating temperature range is 0°C to 50°C, and the storage range is -20°C to +70°C.

Q6: What networking protocol does the AFV30D use?

A6: It uses Vnet/IP, a deterministic Gigabit Ethernet-based protocol developed by Yokogawa for fast and secure data transmission.

Q7: Is firmware upgrade possible on the AFV30D?

A7: Yes, firmware and control applications can be updated via the system’s engineering workstation using Yokogawa’s tools.

Q8: How is the module mounted in a system?

A8: The AFV30D is installed on a compatible base unit along with I/O modules and power supply units.

Q9: Does the AFV30D support hot-swapping or online replacement?

A9: It supports certain levels of online replacement in redundant configurations, but full hot-swap capabilities depend on the system setup.

Q10: What are the diagnostic capabilities of the module?

A10: It features internal diagnostics, error status LEDs, and software-based monitoring for health and performance metrics.
