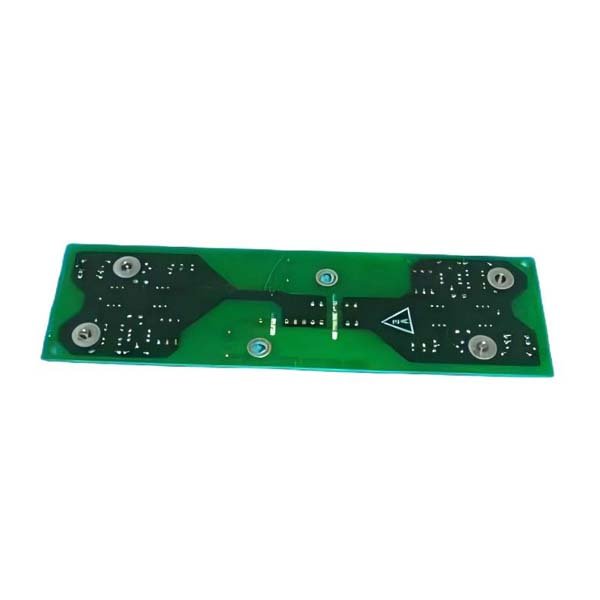

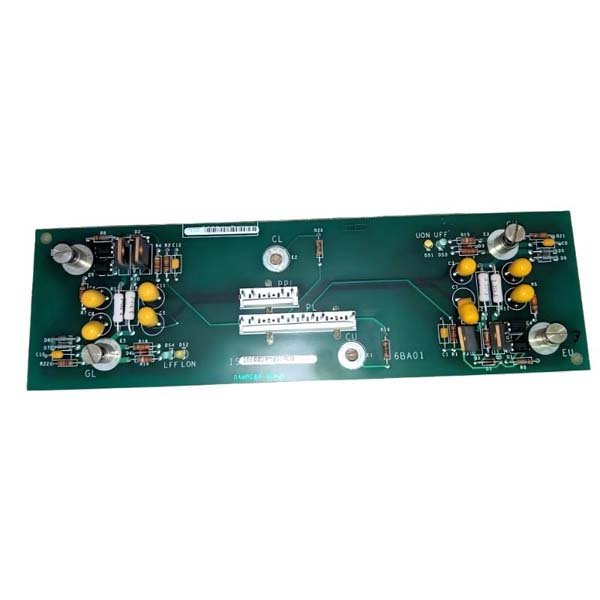

General Electric IS200DAMBG1ACB Analog Monitoring and Conditioning Module

The GE IS200DAMBG1ACB is an analog monitoring and conditioning module designed to support high-fidelity signal processing within Mark VI and Mark VIe turbine control systems. Engineers rely on this board when accurate measurement, filtering, and conditioning of analog channels are required to keep both primary and auxiliary control loops stable. Its architecture provides dependable signal interpretation, making it suitable for long-term industrial service where precision is non-negotiable.

Technical Specifications and Physical Profile

Application Areas in Modern Control Systems

The IS200DAMBG1ACB is typically installed in turbine control cabinets where sensitive analog measurements influence the operation of fuel systems, hydraulic circuits, and temperature or pressure feedback loops. Facilities using this module include:

• Gas and steam turbine control systems

• Auxiliary equipment monitoring racks

• Precision analog conditioning subsystems

• Process loops requiring filtered, stabilized signals

• System upgrades replacing previous DAMB revisions

Its stable performance ensures that downstream logic receives consistent, distortion-free analog values, which directly supports reliability in fast-responding control environments.

Key Performance Advantages

One of the strengths of the IS200DAMBG1ACB is its ability to deliver clean, conditioned analog inputs even when electrical noise is present in the surrounding cabinet. The board helps reduce the risk of erratic readings, minimizes drift, and integrates seamlessly with backplane communication channels. For operators who prioritize long-term dependability and consistent measurement accuracy, this module serves as a dependable component within the system architecture.

FAQs

1. What type of signals does the IS200DAMBG1ACB support?

   It conditions multi-channel analog inputs used in measurement and control loops.

2. Is the module compatible with Mark VIe systems?

   Yes, it is commonly deployed in both Mark VI and Mark VIe installations.

3. Does the board require calibration?

   Typically it is factory-configured; calibration is only needed in customized systems.

4. Can it operate in noisy electrical environments?

   Yes, its filtering and isolation features are designed for such conditions.

5. Does this module include onboard diagnostics?

   Basic health and signal integrity indicators are supported through the system backplane.

6. Can it be used as a drop-in replacement for earlier DAMB revisions?

   In many cases yes, but pin compatibility should always be verified.

7. What is the expected operating lifespan?

   It generally offers long service life when installed within rated temperatures.

8. Does it support grounding isolation?

   Yes, the module provides isolated pathways to prevent ground-loop interference.

9. Is there firmware associated with this board?

   No, it functions primarily as an analog hardware conditioning module.

10. What symptoms indicate a failing module?

    Unstable analog readings, drifting values, or loss of channel response.
