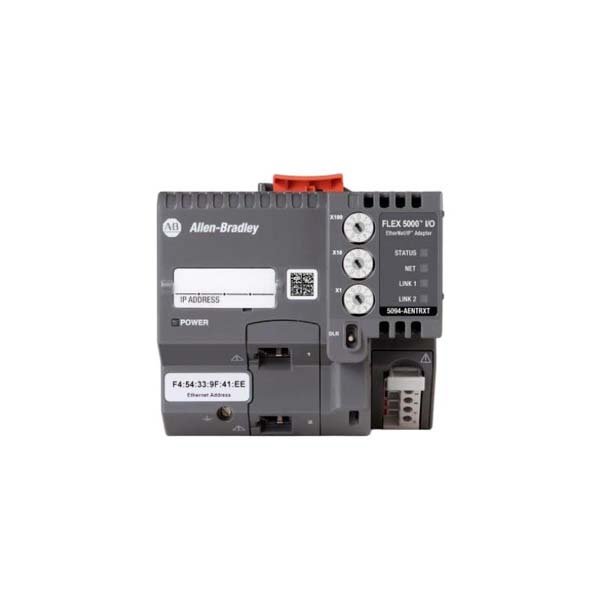

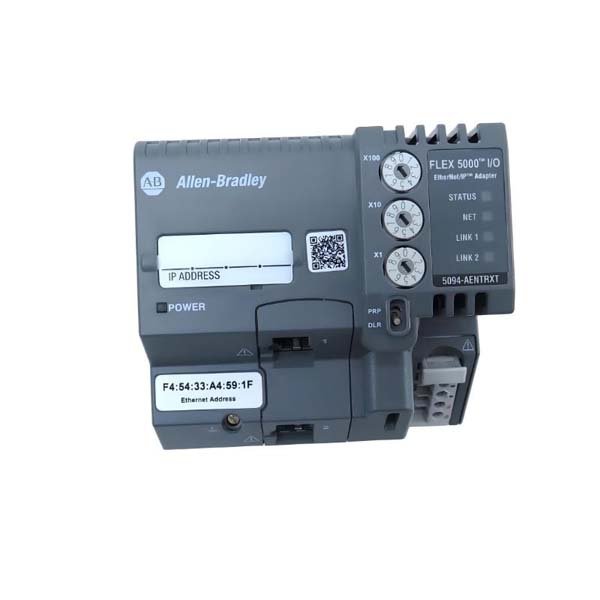

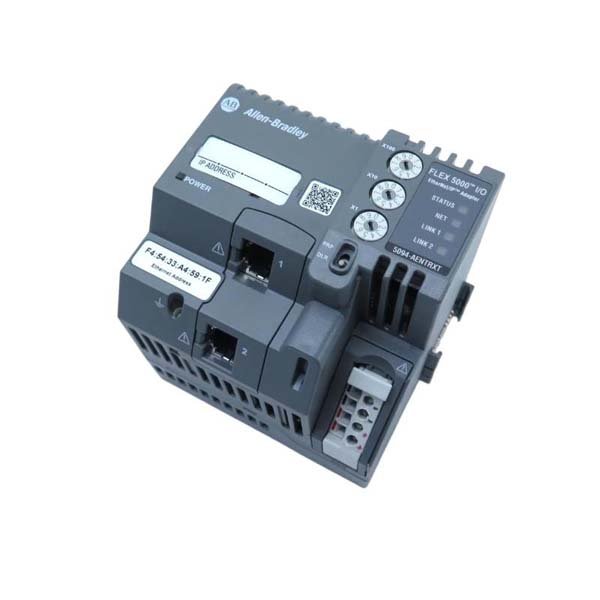

Allen-Bradley 5094-AENTRXT Communication Adapter Module

The Allen-Bradley 5094-AENTRXT Communication Adapter Module is an advanced EtherNet/IP adapter developed for Compact 5000™ I/O systems, offering high-speed data exchange, redundant communication, and expanded connectivity in distributed automation architectures.

Engineered by Rockwell Automation, this module acts as a network interface between Compact 5000 I/O and Logix 5000 controllers, supporting both standard and safety I/O communication across EtherNet/IP networks. The 5094-AENTRXT’s dual ports and device-level ring (DLR) capability ensure continuous communication even in case of network link failure — a vital feature for high-availability systems in process control, material handling, and power generation applications.

Detailed Technical Specifications

Practical Application Scenarios

• Process Automation Systems: Acts as a communication bridge between distributed I/O modules and the main Logix controller in chemical or refining systems.

• Power and Energy Plants: Enables redundant, fault-tolerant communication between critical power control modules.

• Material Handling Lines: Integrates safety and motion control systems across EtherNet/IP networks.

• Automotive Assembly Lines: Provides robust communication for high-speed robotics and conveyor systems.

• Pharmaceutical Manufacturing: Maintains validated network reliability in GxP-compliant environments.

• Water Treatment Facilities: Ensures continuous remote I/O communication for distributed control points.

Distinctive Functional Advantages

• Redundant EtherNet/IP Connectivity: Dual-port architecture ensures uninterrupted communication paths.

• Integrated Safety and Standard Communication: Supports both safety and non-safety I/O on the same network.

• High-Speed Gigabit Data Exchange: Optimized for time-critical control and motion applications.

• Compact Modular Design: Fits within Compact 5000 I/O chassis with minimal footprint.

• Flexible Network Topologies: Compatible with linear, ring, and star EtherNet/IP configurations.

• Enhanced Diagnostics: Onboard LEDs and status monitoring simplify fault isolation.

• Hot-Swappable Capability: Allows module replacement without shutting down the system.

• Energy-Efficient Operation: Designed for continuous industrial use with minimal power draw.

• Comprehensive System Compatibility: Fully integrates with CompactLogix 5380, 5480, and ControlLogix controllers.

• Global Certification: Approved for worldwide industrial automation environments.

FAQs

1. Q: What controller families are compatible with the 5094-AENTRXT?

   A: It is compatible with CompactLogix 5380, 5480, and ControlLogix systems.

2. Q: Can this module support both safety and standard I/O?

   A: Yes, it supports CIP Safety and standard EtherNet/IP communication concurrently.

3. Q: Does it support redundant communication?

   A: Yes, the AENTRXT provides full network redundancy through DLR topology.

4. Q: What is the maximum number of supported I/O modules?

   A: Up to 31 Compact 5000 I/O modules can be connected.

5. Q: What is the maximum network speed?

   A: 1 Gbps per port, supporting high-speed data transfer.

6. Q: Can it be installed in hazardous areas?

   A: Yes, it holds ATEX certification for industrial hazardous locations.

7. Q: Is the module hot-swappable?

   A: Yes, it can be replaced during operation without system shutdown.

8. Q: Does it include built-in diagnostic indicators?

   A: Yes, for network status, connection health, and module power.

9. Q: How is it powered?

   A: It operates on 24 VDC supplied through the Compact 5000 backplane.

10. Q: Can this module operate in a redundant controller configuration?

    A: Yes, it supports controller-level redundancy in EtherNet/IP networks.
