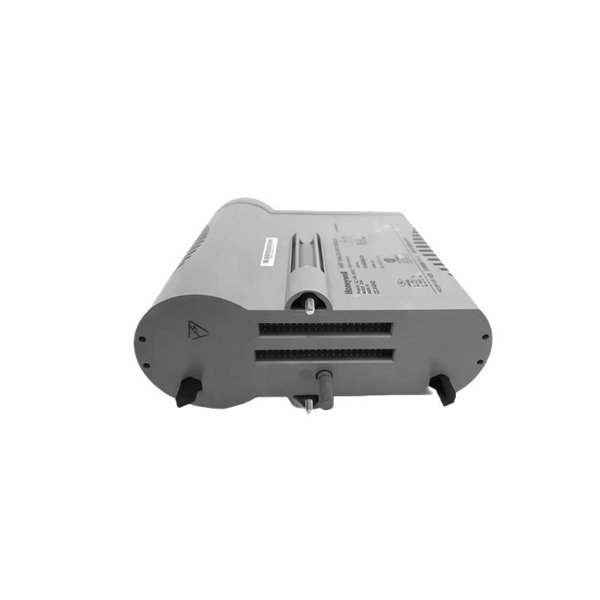

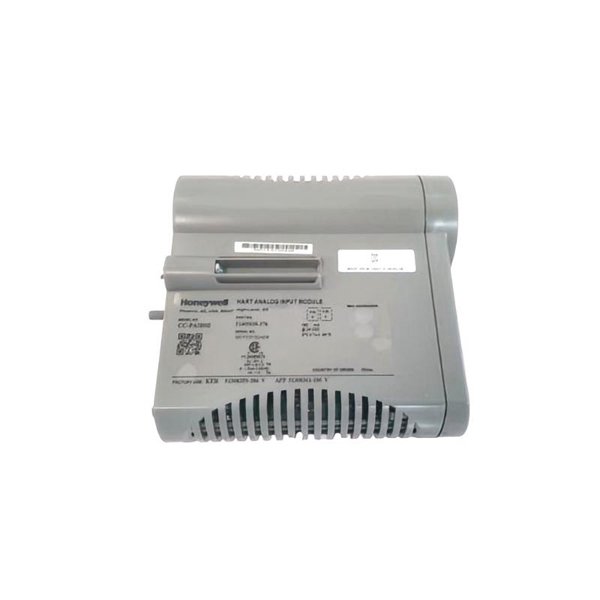

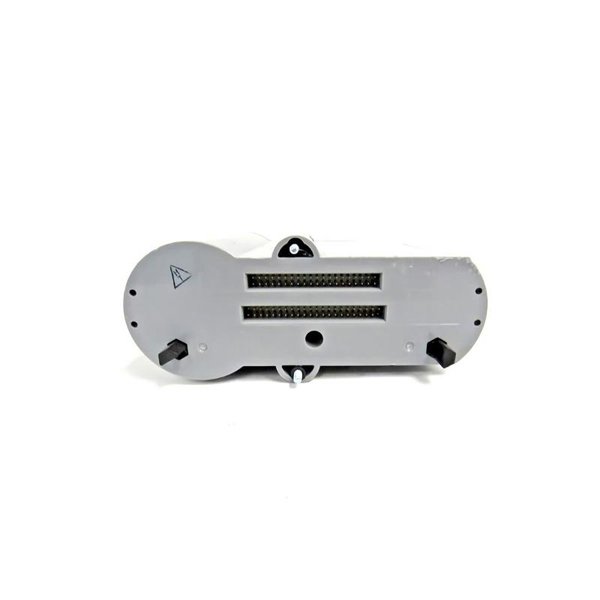

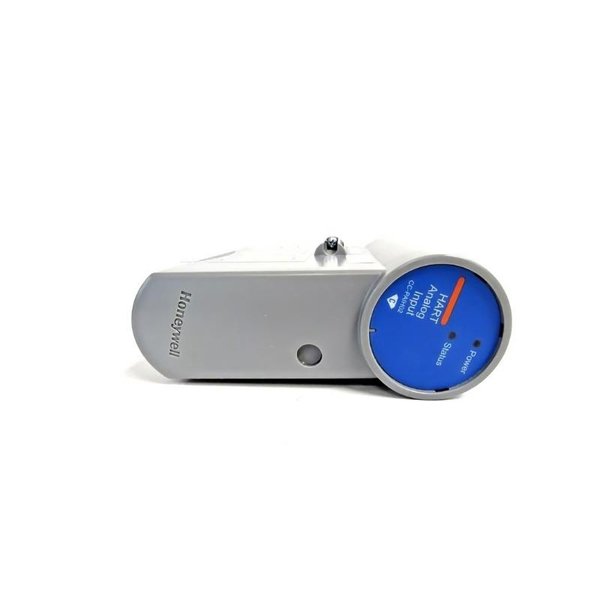

Honeywell CC-PAIH02 51405038-376 Analog Input Module

The Honeywell CC-PAIH02 (Part Number: 51405038-376) is a high-level analog input module designed for integration into Honeywell’s Experion Process Knowledge System (PKS). This module offers both analog and digital communication, allowing seamless integration of field instruments into industrial control systems. The CC-PAIH02 supports multiple input types, including 4–20 mA, 0–5 V, and 1–5 V, and offers advanced diagnostics for monitoring performance and identifying potential issues. With 16 input channels, it ensures high accuracy and reliable operation in demanding industrial environments.

Product Specifications

Applications

• Process Control: Monitoring and controlling variables such as temperature, pressure, and flow in industrial processes.

• Temperature Monitoring: Accurate temperature data acquisition for process optimization.

• Level Measurement: Monitoring liquid levels in tanks and vessels.

• Flow Measurement: Measuring the flow rate of liquids and gases.

• Pressure Measurement: Capturing pressure data for system control and safety.

• Vibration Monitoring: Detecting equipment vibrations to prevent mechanical failures.

• Asset Tracking and Status Monitoring: Real-time monitoring of equipment status and performance.

• Security Systems: Integrating analog sensors for enhanced security measures.

Product Advantages

• High Accuracy and Resolution: 16-bit resolution ensures precise data acquisition.

• HART Communication: Enables digital communication with field devices for configuration and diagnostics.

• Comprehensive Self-Diagnostics: Assists in troubleshooting and maintenance.

• Optional Redundancy: Enhances system reliability and uptime.

• Wire Breakage Detection: Protects the module from damage due to wiring issues.

• Non-Incendive Energy Supply: Suitable for use in hazardous areas.

• Flexible Mounting Options: Supports both DIN-rail and wall mounting.

• Robust Design: Operates reliably in harsh industrial environments.

Frequently Asked Questions (FAQ)

1. What is the primary function of the CC-PAIH02 module?

   The CC-PAIH02 is designed to provide analog input capabilities for industrial automation systems, specifically for differential and single-ended input signals.

2. How many channels does the CC-PAIH02 support?

   The module supports 16 channels, allowing for simultaneous monitoring of multiple analog signals.

3. What types of signals can the CC-PAIH02 accept?

   It can accept 4–20 mA and 0–5 V analog signals, making it compatible with various sensors and devices.

4. Does the CC-PAIH02 support HART communication?

   Yes, it supports HART protocol, enabling enhanced diagnostics and configuration options.

5. Is the CC-PAIH02 suitable for hazardous environments?

   Yes, it is certified for use in hazardous areas, adhering to standards such as Class I, Division 2.

6. What is the resolution of the CC-PAIH02 module?

   The module features a 16-bit A/D converter, ensuring high-resolution data acquisition.

7. Can the CC-PAIH02 detect wire breakage?

   Yes, it includes wire breakage detection to protect the module from potential damage.

8. What is the power consumption of the CC-PAIH02?

   The module consumes 60 W of power.

9. What are the mounting options for the CC-PAIH02?

   It supports both DIN-rail and wall mounting configurations.

10. What is the operating temperature range of the CC-PAIH02?

    The module operates within a temperature range of 0°C to 60°C (32°F to 140°F).
