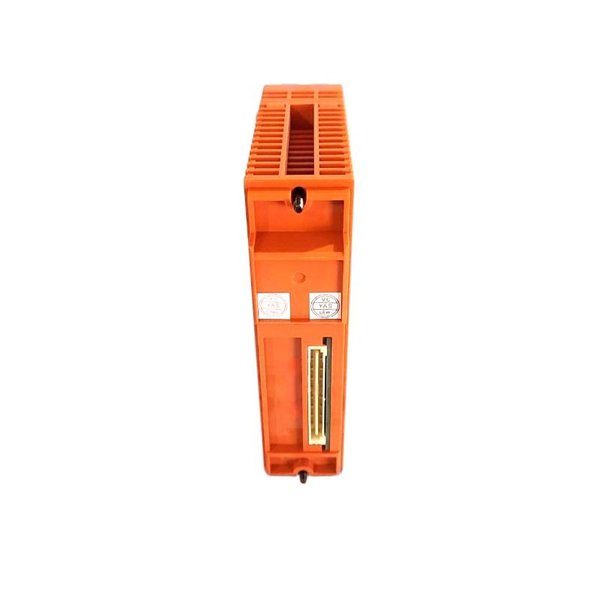

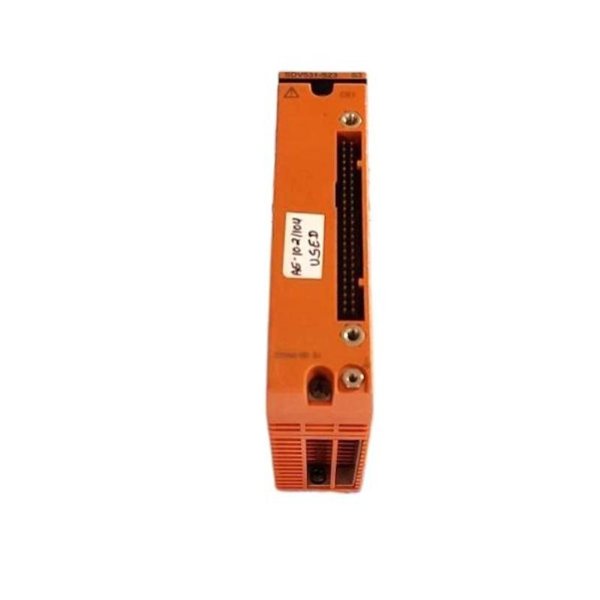

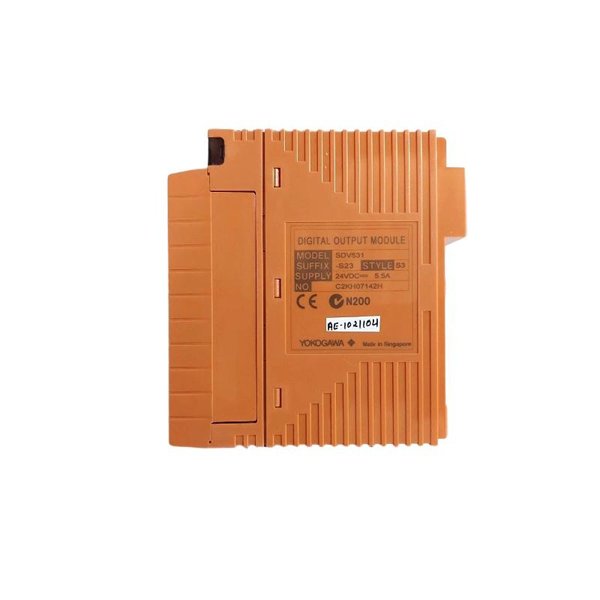

Yokogawa SDV531-S23/D4A00 S3 Digital Output Module

The Yokogawa SDV531-S23/D4A00 S3 Digital Output Module is a reliable, high-performance component designed for use in industrial automation systems. It is primarily used to interface digital control systems with actuators, relays, or other field devices that require discrete signal outputs. The module ensures that the output signals are sent in a highly accurate, reliable, and timely manner, making it essential in process control and automation systems.

Designed with 130 x 107.5 x 32.8 mm dimensions and weighing just 0.28 kg, this module is compact and lightweight, making it ideal for installations in space-constrained environments. The SDV531-S23/D4A00 S3 is part of the Yokogawa’s versatile automation solution, providing seamless digital outputs for controlling devices across various industrial sectors.

With its robust performance and extensive compatibility with automation control systems, the SDV531-S23/D4A00 S3 is the perfect solution for applications requiring dependable and fast digital signal output. Its wide application range spans from process control to energy management, providing significant operational efficiency.

Product Specifications

Product Applications

The SDV531-S23/D4A00 S3 Digital Output Module is suitable for a wide range of applications in industries requiring reliable control and fast digital output signals:

• Industrial Automation: Used for controlling actuators, valves, and other devices that require discrete digital outputs in industrial control systems.

• Energy Management: Used for controlling switches and circuit breakers in energy distribution and power management systems.

• Process Control: Enables the precise control of equipment such as pumps, motors, and conveyors, by transmitting accurate digital signals to field devices.

• Building Management Systems: Provides digital control for HVAC systems, lighting, and other systems in large-scale building management.

• Manufacturing and Robotics: Helps interface control systems with robots and automated production lines, ensuring efficient operation of manufacturing systems.

• Water and Wastewater Treatment: Controls pumps, valves, and other devices used in water treatment processes, enhancing operational efficiency and automation.

Product Advantages

1. High Output Accuracy: The SDV531-S23/D4A00 S3 ensures reliable digital output with a response time of <10 ms, making it highly effective for fast control applications.

2. Compact and Space-Efficient: With dimensions of 130 x 107.5 x 32.8 mm and a weight of just 0.28 kg, the module can be installed in tight spaces, optimizing panel space usage.

3. Flexibility in Output Channels: Equipped with 8 digital output channels, this module allows for controlling multiple devices simultaneously in a cost-effective manner.

4. Wide Operating Temperature Range: The module operates efficiently in a wide range of temperatures from -10°C to +60°C, ensuring reliable performance in harsh environments.

5. Versatile Connectivity: DIN rail mountable, ensuring quick installation and integration into control systems for easy connectivity.

6. Reliable Power Supply: Powered by a 24 V DC supply, the module integrates easily into most industrial control systems with standard voltage configurations.

7. High Isolation Resistance: The module’s >100 MΩ insulation resistance ensures safe and reliable operation even under challenging electrical conditions.

8. Efficient Power Handling: With a maximum output of 1 A per channel, it supports a wide range of devices without compromising on performance.

9. Compatible with Industry Standards: Ideal for relay contact outputs, enabling control of a variety of field devices, such as valves and relays.

10. Energy-Efficient: Consumes low power while providing high reliability and accurate digital signal transmission.

FAQ

1. How many output channels does the SDV531-S23/D4A00 S3 have?

It has 8 digital output channels, allowing for control of multiple devices simultaneously.

2. What is the maximum output voltage of the SDV531-S23/D4A00 S3?

The module supports a maximum output voltage of 30 V DC.

3. How much current can each output channel handle?

Each output channel can handle a maximum of 1 A.

4. What is the response time of the SDV531-S23/D4A00 S3?

The response time of the module is less than 10 ms, ensuring fast output signal processing.

5. What power supply is required for the SDV531-S23/D4A00 S3?

The module operates on a 24 V DC power supply.

6. How is the SDV531-S23/D4A00 S3 mounted?

The module is designed to be mounted on a DIN rail, making installation simple and secure.

7. What is the operating temperature range of the SDV531-S23/D4A00 S3?

It operates in a temperature range of -10°C to +60°C, making it suitable for various industrial environments.

8. What type of output does the SDV531-S23/D4A00 S3 support?

It provides relay contact output, allowing control of various field devices such as motors, valves, and relays.

9. What is the insulation resistance of the SDV531-S23/D4A00 S3?

The module offers an insulation resistance of>100 MΩ, ensuring safe operation.

10. Is the SDV531-S23/D4A00 S3 suitable for high-demand industrial applications?

Yes, with its fast response time and high output accuracy, it is suitable for a wide range of industrial applications requiring reliable digital control.
