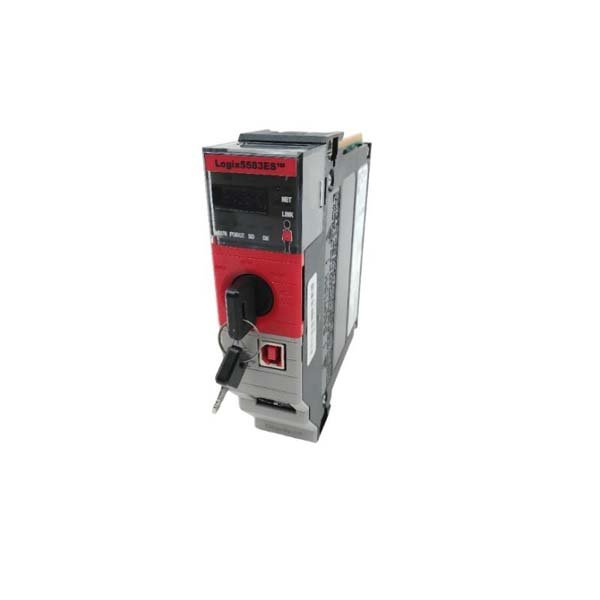

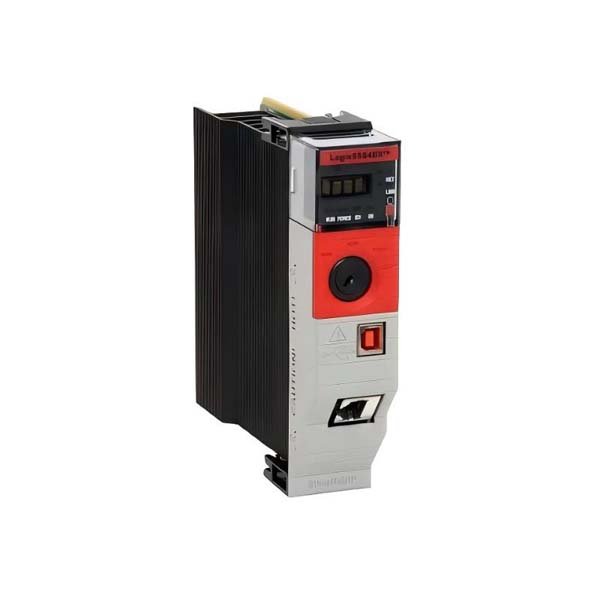

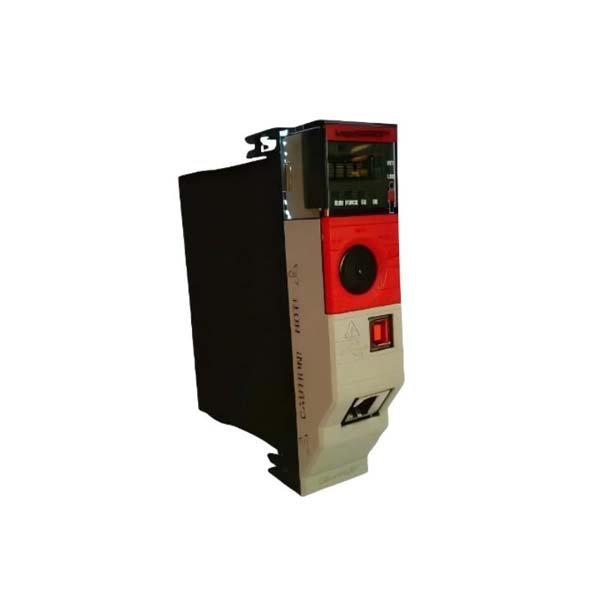

Allen-Bradley 1756-L83ES GuardLogix 5580 CPU Module

The Allen-Bradley 1756-L83ES is a high-performance GuardLogix 5580 CPU module that integrates standard control and certified functional safety in a single unit. It is designed for complex automation systems where safety, motion, and standard control must coexist seamlessly. The module features 10 MB of standard user memory and 5 MB of safety memory, along with a 1 Gbps embedded EtherNet/IP port, allowing high-speed communication with up to 250 EtherNet/IP devices. Its architecture is optimized for large distributed systems requiring deterministic performance and rigorous safety compliance.

Technical Specifications

Applications

• Large-scale manufacturing lines with integrated motion control and safety interlocks.

• Process industries (chemical, pharmaceutical, food & beverage) requiring safety-certified shutdowns and standard control in one system.

• Distributed automation systems with extensive EtherNet/IP networks and high device counts.

• OEM machinery where combining safety and control reduces panel space and system complexity.

• Infrastructure or utilities requiring reliable functional safety alongside high-speed automation.

Advantages

• Integrated Safety and Standard Control: Reduces hardware footprint by combining safety and control in one module.

• Certified Safety Memory: Dedicated safety memory ensures functional safety compliance.

• High-Speed Ethernet: 1 Gbps port supports high-throughput, low-latency communication.

• Scalable I/O Capacity: Supports tens of thousands of digital and analog I/O points.

• Deterministic Performance: Multi-core CPU maintains predictable behavior under mixed workloads.

• Unified Engineering Environment: Studio 5000 allows programming, debugging, and safety validation in one platform.

• Advanced Diagnostics: Enables monitoring and rapid troubleshooting for both safety and standard control.

• Space and Cost Efficiency: Combines two controllers in one, reducing integration costs.

• Industrial Robustness: Rated for vibration, shock, and harsh environmental conditions.

• Future-Ready: Supports motion, safety, and enterprise connectivity for modern automation systems.

FAQs

1. Q: Can the L83ES run safety and standard programs simultaneously?

   A: Yes, it has isolated runtimes for safety memory and standard logic.

2. Q: What is the capacity of standard user memory?

   A: 10 MB for non-safety application code.

3. Q: How much memory is dedicated to safety code?

   A: 5 MB of dedicated safety memory.

4. Q: How many EtherNet/IP devices can the module support?

   A: Up to 250 devices.

5. Q: Is the embedded Ethernet port suitable for motion control applications?

   A: Yes, it is 1 Gbps for high-speed and deterministic communication.

6. Q: Which software is required for programming the module?

   A: Studio 5000 Logix Designer.

7. Q: Can the module coexist with standard 1756 chassis and modules?

   A: Yes, it fits standard 1756 slots and is compatible with ControlLogix/GuardLogix modules.

8. Q: What is the maximum digital I/O supported?

   A: 128,000 digital I/O points across the system.

9. Q: What is the maximum analog I/O supported?

   A: 4,000 analog I/O points.

10. Q: What are the operating and storage temperature ranges?

    A: Operating: 0 °C to +60 °C; Storage: -40 °C to +85 °C.
