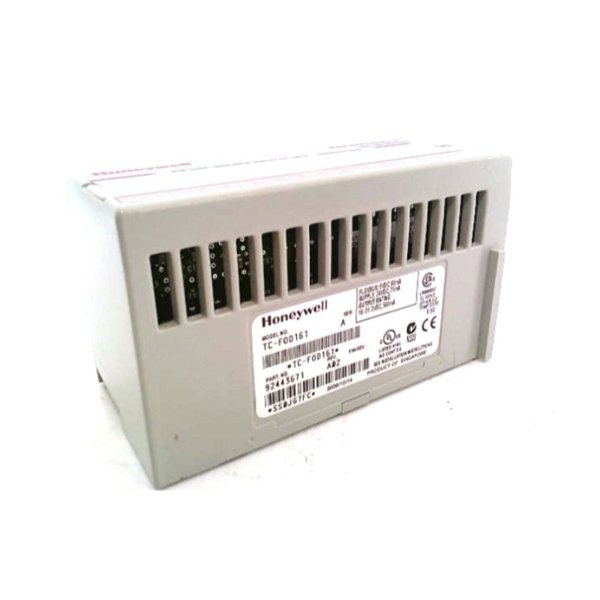

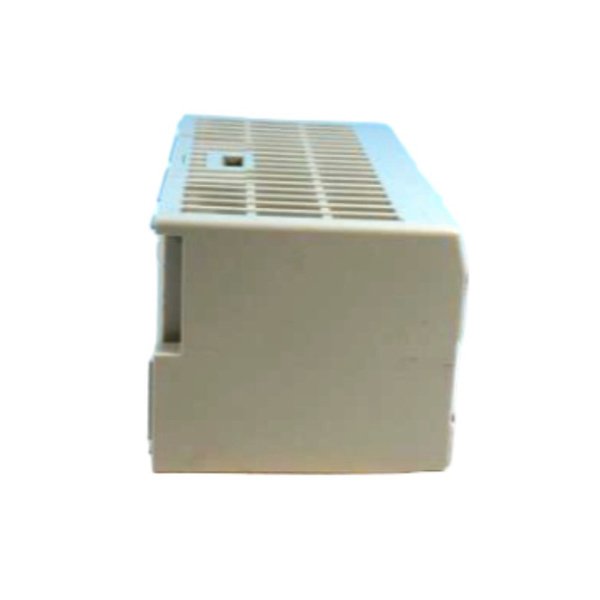

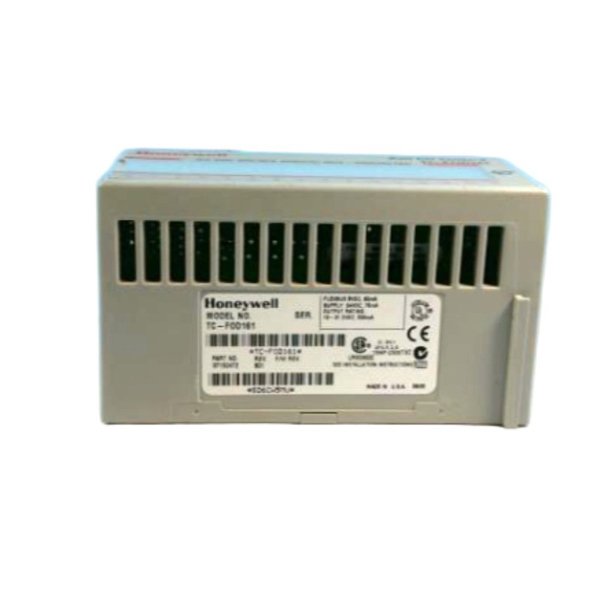

Honeywell TC-FOD161 24 VDC source digital output Module

The Honeywell TC-FOD161 is a high-performance 24 VDC source digital output module designed for advanced process control systems. It is part of Honeywell’s Experion PKS digital I/O platform, providing reliable interface solutions between field devices and the control system. The TC-FOD161 module ensures precise and fast switching of digital output signals, making it suitable for a wide range of industrial applications where reliable signal transmission is critical.

It supports both discrete and complex control applications, offering tight integration with Honeywell controllers, remote I/O systems, and safety-critical configurations. The module is engineered with robust circuitry to handle demanding industrial environments, including high electromagnetic interference and fluctuating power conditions. Its compact design allows for efficient installation in I/O racks or cabinets while maintaining ease of maintenance and diagnostics.

Technical Specifications

Product Applications

The TC-FOD161 module is widely applied in industries requiring high-reliability digital output control. Key applications include:

• Process Automation: Switching valves, pumps, and actuators in chemical, oil & gas, and refining plants.

• Safety Systems: Integration in safety interlock loops and emergency shutdown systems.

• Remote I/O Systems: Distributed digital control in large-scale industrial installations.

• Batch Control: Precise operation in pharmaceutical, food, and beverage process automation.

• Utility Systems: Controlling power distribution, motor starters, and alarm annunciation systems.

• Continuous Process Monitoring: Coordinating output signals from sensors to actuators in real-time control environments.

Product Advantages

The TC-FOD161 offers multiple advantages for modern industrial control systems:

• High Reliability: Built to perform in harsh industrial conditions with strong EMI immunity.

• Fast Response: Typical switching time under 10 ms ensures rapid digital signal actuation.

• Ease of Integration: Fully compatible with Honeywell controllers, remote I/O racks, and standard I/O bus systems.

• Flexible Architecture: Supports both discrete digital control and complex, multi-channel output applications.

• Robust Protection: Overload and short-circuit protection enhance system safety and reduce downtime.

• Compact Design: Efficient use of space in control panels, simplifying installation and maintenance.

• Diagnostic Features: Real-time monitoring for output status and fault detection improves maintenance efficiency.

• Industry Compliance: Certified for multiple industrial standards ensuring global applicability.

FAQ

Q1: What is the maximum current per channel for the TC-FOD161 module?

A1: The maximum current per channel is 0.5 A.

Q2: Can this module interface with older Honeywell I/O racks?

A2: Yes, it is compatible with Honeywell standard I/O racks supporting the Experion PKS I/O bus interface.

Q3: What kind of digital outputs does this module provide?

A3: The module provides 24 VDC source digital outputs suitable for switching actuators and relays.

Q4: How is the module protected against short circuits?

A4: Each channel is individually protected against overload and short-circuit conditions.

Q5: What is the typical response time for output switching?

A5: The typical response time is less than 10 milliseconds.

Q6: Can this module operate in high-humidity environments?

A6: Yes, it can operate in 5 to 95% relative humidity, non-condensing.

Q7: Is the TC-FOD161 certified for hazardous locations?

A7: Yes, it is ATEX Zone 2 approved for hazardous locations.

Q8: What temperature range is suitable for operation?

A8: The module operates reliably between 0°C and 60°C (32°F to 140°F).

Q9: How are faults and channel status monitored?

A9: The module supports real-time diagnostics through the Honeywell I/O bus, indicating output status and fault conditions.

Q10: Is the module compatible with safety-critical applications?

A10: Yes, the TC-FOD161 can be integrated into safety systems with appropriate Honeywell controllers.
