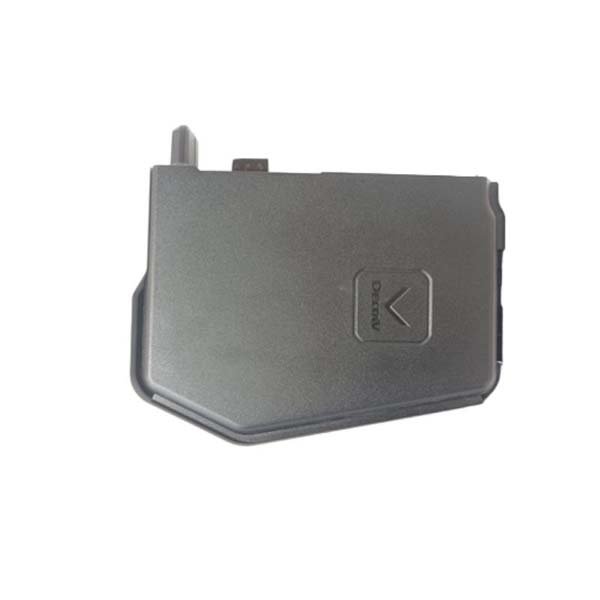

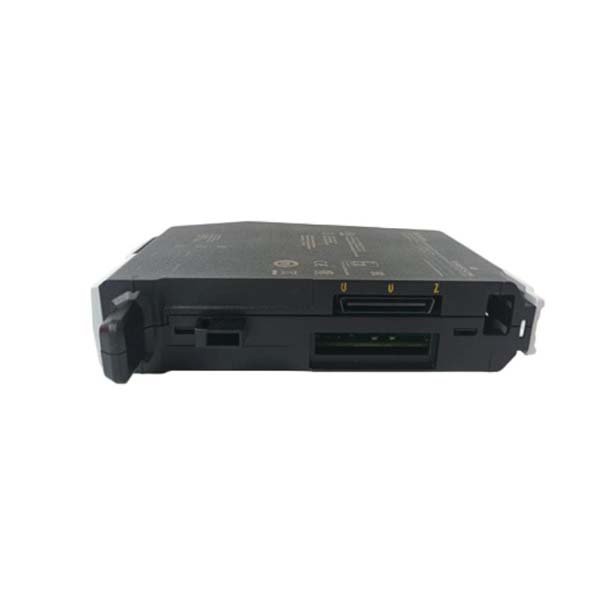

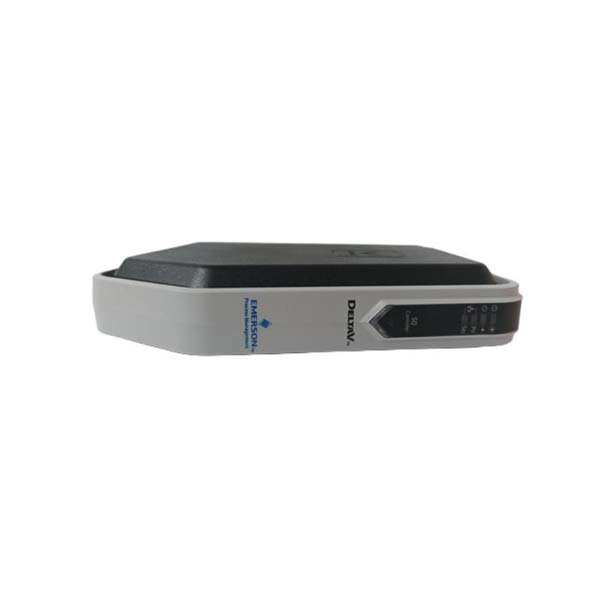

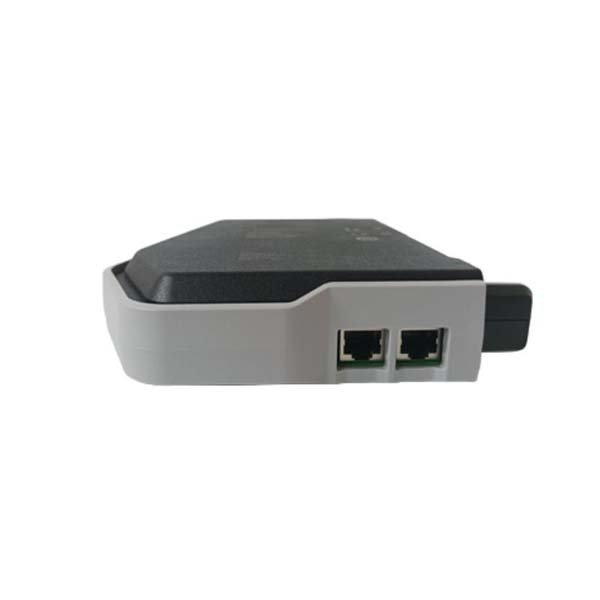

Emerson SE3008 KJ2005X1-SQ1 SQ Controller

The Emerson SE3008 KJ2005X1-SQ1 is a versatile, high-performance SQ controller designed to meet the requirements of industrial automation systems. Part of Emerson’s SE3000 series, the KJ2005X1-SQ1 controller is built to manage and monitor critical process parameters in real-time, ensuring precise control over complex processes. It is highly adaptable to a wide range of applications, from power generation and chemical processing to water treatment and manufacturing.

The SQ Controller provides real-time data acquisition and control, enabling industries to maintain operational efficiency, improve system reliability, and ensure safety. With its advanced processing capabilities, the controller enables seamless integration into large-scale automation systems, allowing operators to make informed decisions based on live data.

Incorporating multiple input and output types, including analog and digital signals, the KJ2005X1-SQ1 is a robust and reliable solution for managing a wide array of field devices and sensors. This controller supports high-speed communication, redundancy features, and various protocols, making it an excellent choice for mission-critical applications.

Product Specifications

Product Applications

The Emerson SE3008 KJ2005X1-SQ1 SQ Controller is used in various industries where precision control, monitoring, and automation are critical. Its key applications include:

• Power Generation: Used in turbine control, boiler monitoring, and electrical grid management to ensure the stability and efficiency of power plants.

• Chemical Processing: Controls processes involving the production, mixing, and monitoring of chemicals, providing precise control for sensitive operations.

• Manufacturing Automation: Facilitates the automation of production lines, robotic systems, and material handling, ensuring high-speed operation and precision.

• Water Treatment: Monitors and controls water treatment processes, ensuring the efficient operation of pumps, valves, and filtration systems.

• Oil & Gas: Ensures the efficient operation of equipment in oil rigs and refineries, monitoring critical parameters to enhance safety and productivity.

Product Advantages

• High-Speed Processing: The KJ2005X1-SQ1 controller offers high-speed data processing, enabling real-time control and efficient management of industrial processes.

• Flexible I/O Support: It supports both analog and digital signals, providing flexibility in connecting a variety of field devices and sensors.

• Redundant Architecture: The controller supports redundancy features that increase the reliability of critical control systems, ensuring continuous operation even during component failures.

• Compact and Space-Efficient: Despite its powerful capabilities, the controller is designed with a compact form factor, making it ideal for installations where space is limited.

• Seamless Integration: Compatible with various communication protocols like Ethernet and MODBUS, it integrates seamlessly with other Emerson control systems and third-party devices.

• Energy Efficient: With low power consumption of just 4W, the controller is energy-efficient, reducing operating costs for long-term use.

• Wide Temperature Range: Designed to operate in harsh environments, the controller works within a wide temperature range of -10°C to +60°C, making it versatile for different industrial settings.

FAQ

1. What types of I/O does the SE3008 KJ2005X1-SQ1 support?

   • The controller supports both analog and digital inputs and outputs, making it adaptable for various industrial applications.

2. What is the voltage rating for the SE3008 KJ2005X1-SQ1?

   • The module operates with a 24V DC power supply, which is typical for many industrial control systems.

3. Which communication protocols are supported by the SE3008 KJ2005X1-SQ1?

   • The controller supports Ethernet and MODBUS communication protocols, ensuring compatibility with a wide range of systems.

4. Can the SE3008 KJ2005X1-SQ1 be used in outdoor environments?

   • No, the SE3008 KJ2005X1-SQ1 is designed for indoor use, with a NEMA 1-rated enclosure that offers protection against dust and light contact.

5. What is the power consumption of the SE3008 KJ2005X1-SQ1?

   • The module consumes just 4W, which makes it energy-efficient for long-term operation in industrial environments.

6. How is the SE3008 KJ2005X1-SQ1 mounted in a control system?

   • The controller is designed for DIN rail mounting, making it easy to install and integrate into existing systems.

7. What is the temperature range for the SE3008 KJ2005X1-SQ1?

   • The module operates in a temperature range of -10°C to +60°C, making it suitable for use in various industrial conditions.

8. How does the redundancy feature enhance the reliability of the SE3008 KJ2005X1-SQ1?

   • Redundancy ensures that the system remains operational even if one component fails, enhancing the controller’s reliability in mission-critical applications.

9. What industries can benefit from using the SE3008 KJ2005X1-SQ1?

   • The controller is ideal for power generation, chemical processing, manufacturing automation, water treatment, and oil & gas industries.

10. Is the SE3008 KJ2005X1-SQ1 compatible with other Emerson control systems?

    • Yes, the controller integrates seamlessly with other Emerson control systems, allowing for easy system expansion and interoperability.
