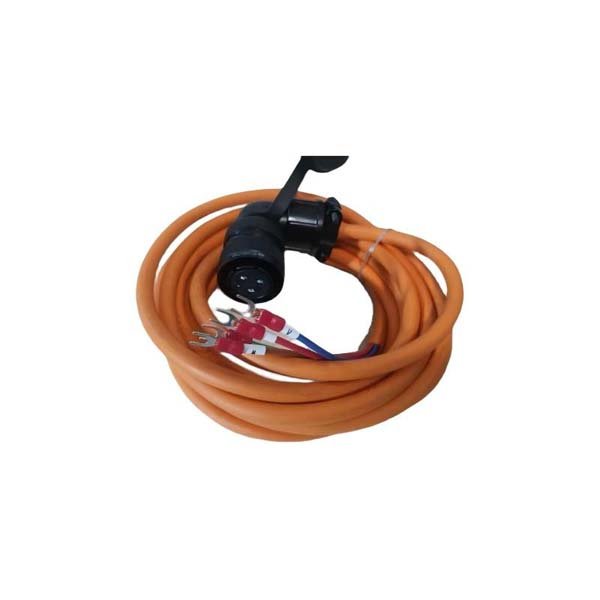

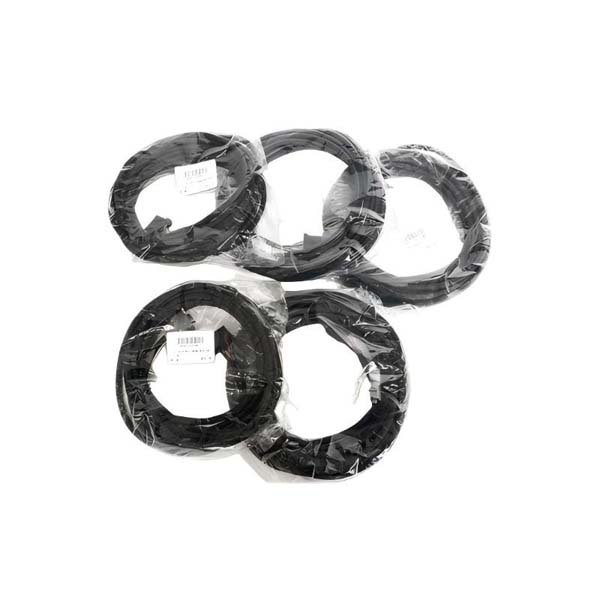

Allen-Bradley 2090-CTPB-MADF-18A15 Power and Brake Cable Module

The Allen-Bradley 2090-CTPB-MADF-18A15 Power and Brake Cable is a motion-rated industrial connection cable designed for the Kinetix servo system platform. It combines both motor power and brake conductors within a single robust jacket, simplifying installation and enhancing performance reliability in automation environments. This cable is built for continuous-flex operation and engineered to maintain electrical integrity under repetitive mechanical stress, making it suitable for high-motion applications in robotics, packaging, and precision manufacturing systems.

Technical Specifications

Operational Applications

This Allen-Bradley cable is intended for demanding industrial motion systems that require high mechanical endurance and electrical stability. It is frequently used in:

• Servo motor power and brake integration for Kinetix automation systems

• Dynamic robotics and multi-axis motion control assemblies

• High-speed packaging lines and conveyor applications

• Machine tool systems where motor brake synchronization is required

• Equipment with limited routing space that benefits from combined power/brake design

Core Advantages

• Integrated Power and Brake Conductors – Eliminates the need for separate wiring, reducing clutter and installation time.

• Continuous-Flex Construction – Designed for repetitive motion, minimizing wear and mechanical fatigue.

• Superior EMI Protection – Shielded cable structure enhances signal integrity and reduces electrical noise.

• Factory-Certified Compatibility – Guaranteed performance with Kinetix servo platforms.

• Durable Jacket Material – Industrial-grade PVC resists abrasion, oil, and environmental stress.

• Optimized Bend Radius – Supports tight routing within compact enclosures.

• Lightweight and Manageable – Simplifies cable tray management and dynamic motion routing.

• Extended Service Life – Proven durability in high-cycle mechanical environments.

• Stable Electrical Performance – Maintains consistent impedance and low resistance.

• Cost-Effective Integration – Reduces material and installation labor costs by combining multiple functions into one cable.

FAQs

1. What type of servo systems are compatible with the 2090-CTPB-MADF-18A15?

   It is compatible with Kinetix 5500, 5700, and TLP servo drive systems.

2. What does the “MADF” code in the model number signify?

   It denotes a motion-rated, continuous-flex cable construction for dynamic movement.

3. Can this cable be used in a stationary application?

   Yes, but its flex-rated construction offers best performance in moving systems.

4. What shielding method is applied?

   The cable uses an overall foil and braided shield combination for full EMI suppression.

5. What is the nominal bend radius for continuous-flex use?

   Approximately 12 times the outer diameter of the cable.

6. Can the cable be custom-cut to a different length?

   Yes, but shortening should be done under manufacturer-approved procedures to maintain flex integrity.

7. Is the cable suitable for outdoor installations?

   It is rated for standard indoor industrial environments; outdoor use requires additional protection.

8. Does this cable support brake feedback?

   Yes, it includes two dedicated brake conductors alongside four motor power leads.

9. What environmental conditions can it operate in?

   From -20°C up to +80°C in standard ambient conditions.

10. Is it compatible with other Allen-Bradley cable series?

    It integrates seamlessly with other 2090-series cables and connectors for motion control systems.
