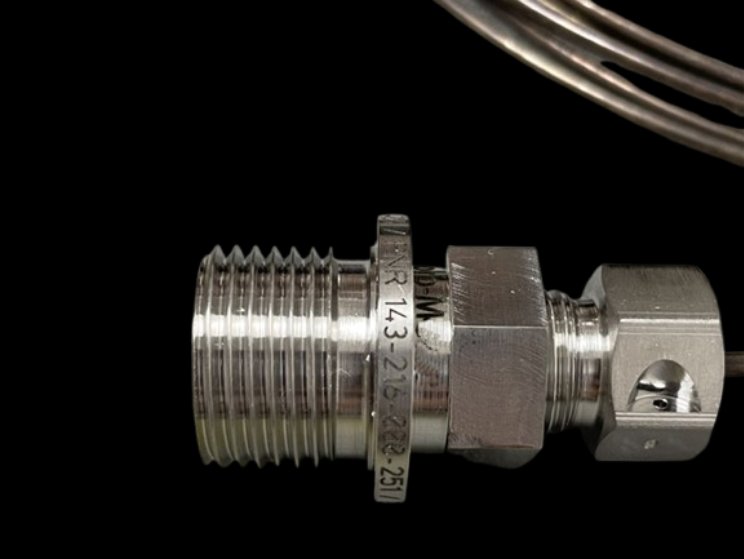

Meggitt CP216 143-216-000-251 Piezoelectric Pressure Transducer
Item Number: CP216 143-216-000-251
Brand:Meggitt
Lead Time: In stock
Description: Piezoelectric Pressure Transducer
Payment: T/T
Product Description
The CP216 143-216-000-251 piezoelectric pressure transducer is a compression mode dynamic pressure sensor based on artificial piezoelectric materials. It uses artificial piezoelectric materials and works in compression mode. It is developed for long-term monitoring or development testing in extreme environments.

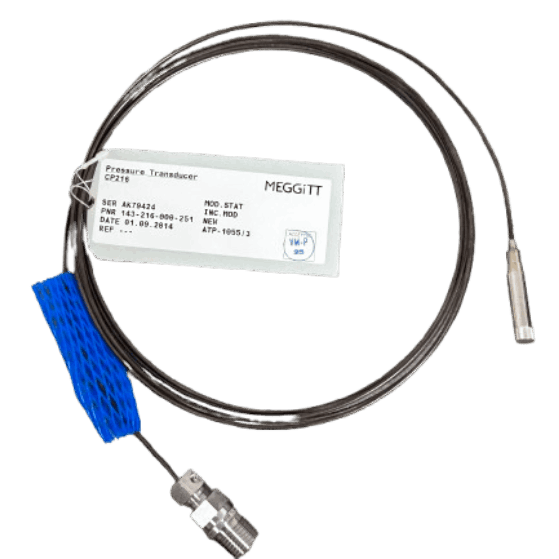

The transducer is equipped with an integral mineral insulated (MI) cable with dual conductors, the terminal can be equipped with a LEMO connector or a high-temperature connector, and there is a cable assembly to connect it to the IPC704 signal conditioner. It is mainly used for dynamic pressure monitoring over a wide temperature range.
Function & Features
- The CP216 143-216-000-251 is equipped with an integral mineral insulated cable and a suitable connector, and there are suitable cable assemblies for use with signal conditioners.
- The CP216 143-216-000-251 can work normally in extreme temperature ranges from -70 to 520°C, and can cope with high and low temperature environments.
- The CP216 143-216-000-251 can withstand a maximum pressure of 350 bar.
- The CP216 143-216-000-251 has internal shell insulation.
Specifications
|
Parameter |
Details |
| Model | CP216 143-216-000-251 |
|
Dynamic Measurement Range (Random) |
0.0005 bar to 250 bar (0.007 psi to 3626 psi) |
|
Overload Capacity (Spikes) |
Up to 350 bar (5076 psi) – static + dynamic components |
|
Linearity |
< ±1% over dynamic measurement range |
|
Acceleration Sensitivity |
≤ 0.5 pC/g (0.0025 bar/g, 0.036 psi/g) |
|
Resonant Frequency |
> 80 kHz |
|
Frequency Response |
2 Hz to 15,000 Hz ±5% (Lower cutoff frequency depends on connected electronics) |
|
Capacitance (Nominal) |
• Pole-to-pole: 320 pF (transducer) + 200 pF/m (61 pF/ft) of cable • Pole-to-casing: 13 pF (transducer) + 300 pF/m (91 pF/ft) of cable |
|
Internal Insulation Resistance |
> 10<sup>9</sup> Ω at room temperature > 5×10<sup>4</sup> Ω at 450°C (842°F) |
FAQ
Q: What is the brand?
A:Spare
Q: What is the type?
A:Piezoelectric Pressure Transducer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
