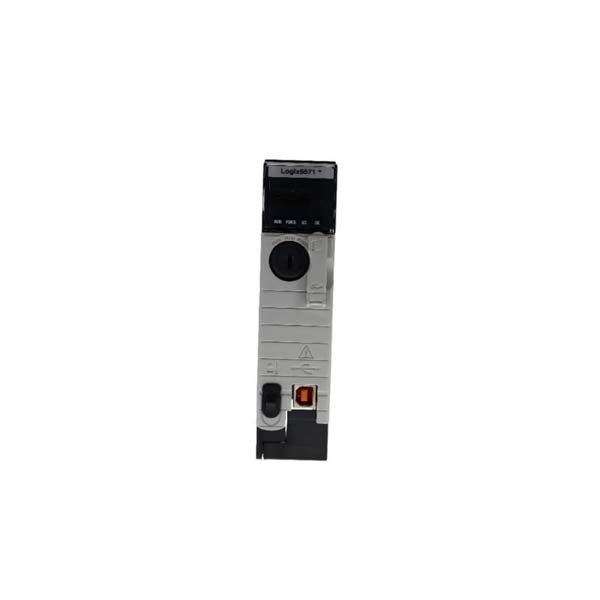

Allen-Bradley 1756-L71 ControlLogix 5570 CPU Module
Manufacturer:Allen Bradley
Product Number:1756-L71
Product Type:ControlLogix 5570 CPU Module
Origin:USA
Dimensions:145 mm × 35 mm × 118 mm
Weight:0.38 kg
Views:129
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Allen-Bradley 1756-L71 is a high-performance ControlLogix 5570 CPU module designed for medium-to-large industrial automation applications. It offers a 7 MB user memory capacity, high-speed execution, and robust networking capabilities, making it suitable for complex machine control, distributed I/O architectures, and real-time data handling. The module is engineered to support both standard logic operations and motion control applications, providing deterministic performance for critical processes.
Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Module Type | ControlLogix 5570 CPU Module | Standard CPU for ControlLogix 5570 series |
| User Memory | 7 MB | For logic, data, and system configuration |
| CPU Speed | Multi-core processor | High-speed execution for complex programs |
| Embedded Ethernet | 1 × 1 Gbps (10/100/1000 Mbps) | Supports EtherNet/IP communication |
| Maximum EtherNet/IP Devices | 250 | Networked device support |
| Maximum Digital I/O Points | 128,000 | System-wide digital I/O capacity |
| Maximum Analog I/O Points | 4,000 | System-wide analog I/O capacity |
| USB Interface | 1 × USB | Programming and local diagnostics |
| Backplane Power (5V) | Varies with chassis population | Supply for module and expansion I/O |
| Operating Temperature | 0 °C to +60 °C | Industrial range |
| Storage Temperature | -40 °C to +85 °C | Non-operational |
| Relative Humidity | 5%–95% non-condensing | Environmental durability |
| Vibration | Industrial grade | Shock and vibration resistant |
| Shock | Industrial grade | Designed for industrial environments |
| Dimensions (H × W × D) | 145 mm × 35 mm × 118 mm (5.7″ × 1.4″ × 4.6″) | Standard 1756 series footprint |
| Weight | 0.38 kg (0.84 lb) | Approximate module weight |
Applications
-
Medium to large manufacturing systems requiring high-speed processing.
-
Distributed I/O networks in industrial automation.
-
Motion control systems including conveyors, robotics, and synchronized equipment.
-
Process automation applications with real-time control needs.
-
OEM machinery with advanced logic and data handling requirements.
Advantages
-
High-Performance Processing: Multi-core CPU ensures fast, deterministic execution of complex programs.
-
Expandable Architecture: Supports large distributed I/O networks.
-
Embedded Ethernet: Provides reliable and fast communication with EtherNet/IP devices.
-
High Memory Capacity: 7 MB of user memory supports large programs and data-intensive applications.
-
Robust Industrial Design: Rated for vibration, shock, and harsh environmental conditions.
-
Deterministic Operation: Ensures predictable response times for real-time control.
-
Flexible Networking: Compatible with multiple EtherNet/IP devices and network topologies.
-
Ease of Integration: Fits standard 1756 chassis and supports ControlLogix expansion modules.
-
Compact Size: Standard module footprint saves panel space.
-
Unified Programming Environment: Programmed via Studio 5000 for efficient development and debugging.
FAQs
-
Q: What is the memory size of the 1756-L71?
A: 7 MB of user memory for program and data.
-
Q: Does it support EtherNet/IP communication?
A: Yes, it has a 1 Gbps embedded EtherNet/IP port.
-
Q: What is the maximum number of digital I/O points supported?
A: Up to 128,000 points system-wide.
-
Q: Can this module handle motion control applications?
A: Yes, it supports synchronized motion and high-speed control tasks.
-
Q: What is the operating temperature range?
A: 0 °C to +60 °C.
-
Q: Which software is used for programming the 1756-L71?
A: Studio 5000 Logix Designer.
-
Q: Can it integrate with existing 1756 chassis?
A: Yes, it fits standard ControlLogix 1756 chassis slots.
-
Q: What is the maximum number of EtherNet/IP devices supported?
A: Up to 250 devices.
-
Q: What are the dimensions of the module?
A: 145 mm × 35 mm × 118 mm (5.7″ × 1.4″ × 4.6″).
-
Q: What is the weight of the module?
A: Approximately 0.38 kg (0.84 lb).
