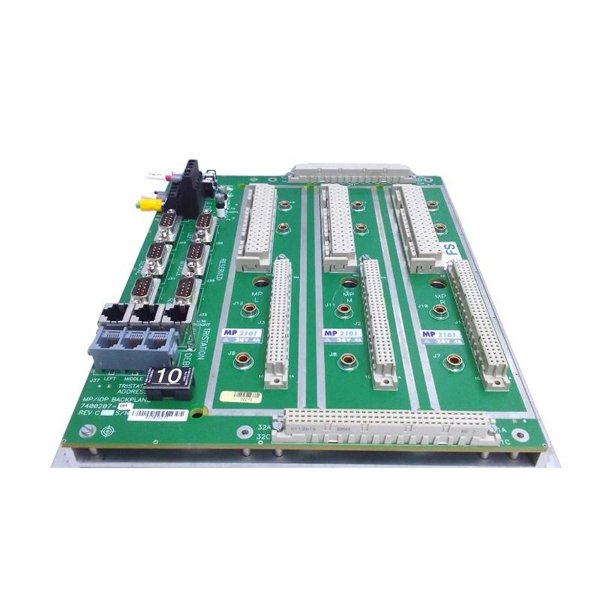

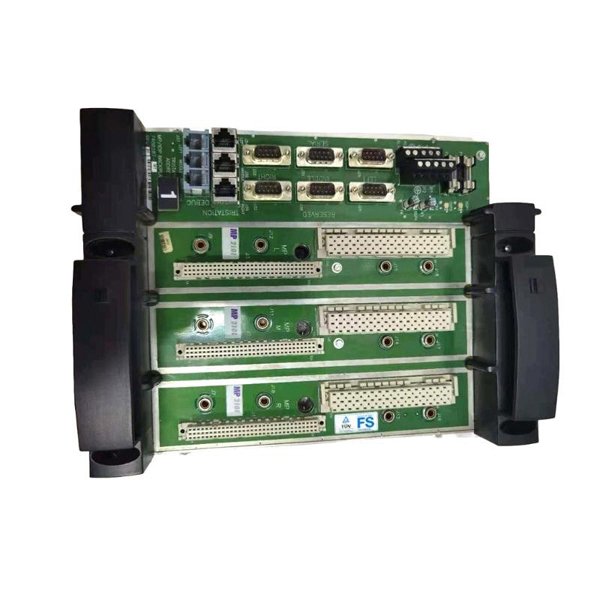

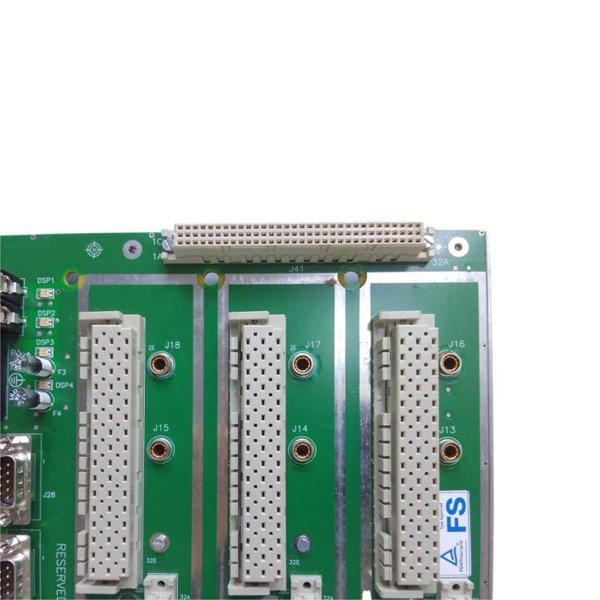

Triconex 7400207-001 Main Processor Baseplate

The Triconex 7400207-001 Main Processor Baseplate is a vital component within the Triconex safety instrumented system (SIS) architecture. Designed to support high-integrity applications, this baseplate serves as the physical and electrical foundation for housing the main processor module and interconnecting it with communication and I/O modules. The Triconex system, widely known for its fault-tolerant triple-modular-redundant (TMR) design, relies on the robust and reliable performance of the baseplate to maintain signal integrity, power distribution, and processor synchronization in safety-critical environments.

The 7400207-001 baseplate is engineered to support high-speed data transfer, module hot-swap, and high availability in continuous processing environments such as oil & gas, petrochemicals, nuclear, and other industries demanding rigorous safety standards. It features rugged connectors, precision-milled guide rails, and is optimized to maintain isolation, grounding, and signal fidelity.

Product Specifications

Product Applications

• Emergency Shutdown Systems (ESD)

• Fire and Gas Detection Systems (F&G)

• Turbomachinery Control (TMC)

• High-Integrity Pressure Protection Systems (HIPPS)

• Burner Management Systems (BMS)

• Nuclear and Conventional Power Plant Safety Systems

• Offshore Platform Automation

• Refining and Petrochemical Safety Control Systems

Product Advantages

• Triple Modular Redundancy (TMR) Compatibility

  Designed specifically for Triconex TMR architecture, ensuring high fault tolerance.

• Hot-Swappable Capability

  Allows module replacement without system shutdown, enhancing uptime and maintainability.

• EMC Shielding and Industrial-Grade Connectors

  Protects against electromagnetic interference and environmental disturbances.

• Rugged Construction

  Suitable for use in hazardous and mission-critical environments with temperature and vibration resistance.

• Ease of Integration

  Simple mechanical layout and plug-and-play compatibility reduce installation time.

• Long Lifecycle Support

  Backed by Triconex’s long-term lifecycle and obsolescence support policies.

FAQ

1. What types of processor modules are supported by the 7400207-001 baseplate?

   This baseplate supports Tricon main processors such as the 3009 module within the Triconex TMR system.

2. Can this baseplate be used in a redundant power configuration?

   Yes, it fully supports redundant power inputs and distribution across modules.

3. Does the baseplate provide isolation between processor and I/O modules?

   Yes, it includes isolation and grounding mechanisms to prevent signal interference.

4. Is online replacement of processor modules supported?

   Yes, hot-swapping is fully supported provided proper procedures are followed.

5. How is synchronization between multiple processors handled?

   The baseplate includes bus channels to maintain high-speed synchronization between processors.

6. What kind of diagnostic features are built into the baseplate?

   It supports diagnostic monitoring via the Tricon controller, including power status and module connectivity.

7. Is there support for firmware upgrades via the baseplate?

   Firmware is upgraded through the processor modules, but the baseplate supports the communication path for updates.

8. Can it withstand harsh industrial environments like offshore rigs?

   Yes, it is built to industrial standards, resistant to corrosion, vibration, and temperature extremes.

9. What bus protocols does the baseplate support internally?

   It supports proprietary Tricon bus architecture for real-time data exchange and control synchronization.

10. Does the baseplate support redundant communications modules?

    Yes, it provides slots and power for dual communication interfaces to ensure fault-tolerant communication.
