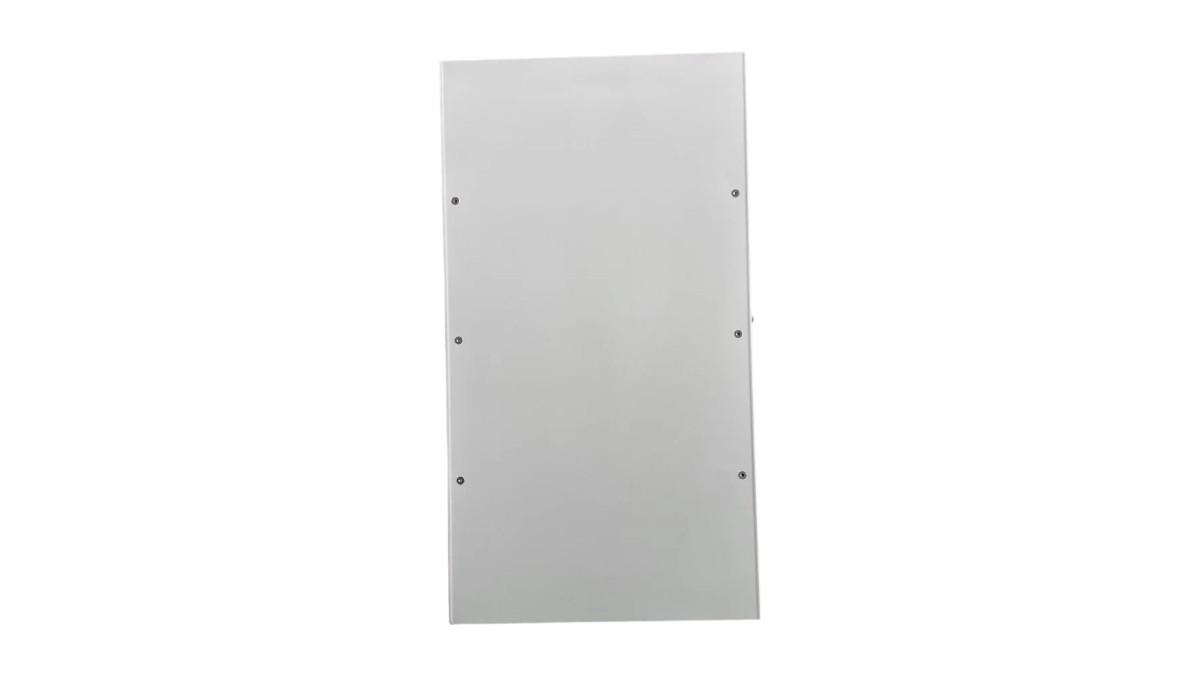

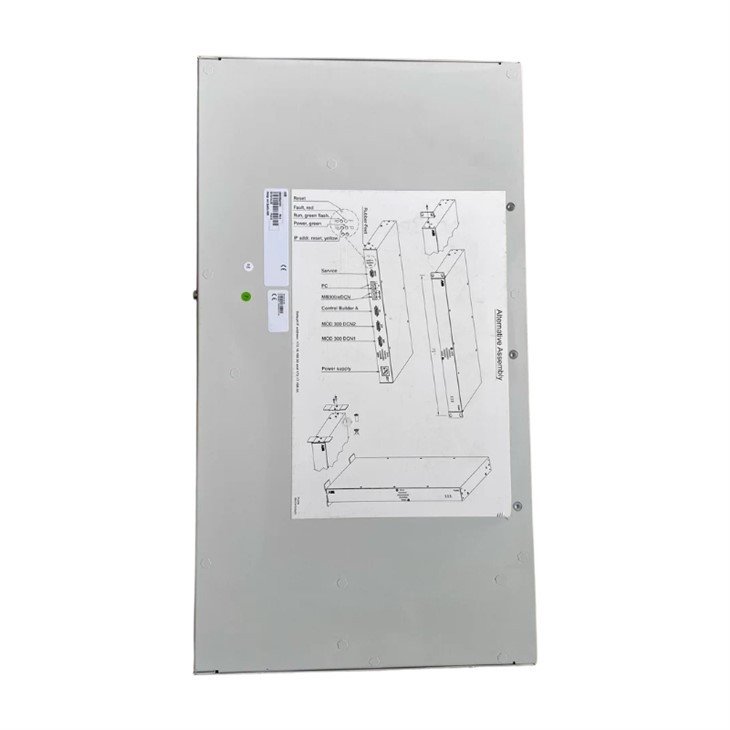

ABB PU410 3BSE056478R1 RTA Communication Box
Item Number:PU410 3BSE056478R1
Brand: ABB
Lead Time: In stock
Description:RTA Communication Box
Payment: T/T
Product Description
ABB PU410 (3BSE056478R1) RTA Communication Box Unit is an independent hardware device, serving as a gateway device within the ABB 800xA system for Advant Master, connecting the connectivity server with the field control network (such as MasterBus 300):The box is installed in the control cabinet, with one end connected via Ethernet to the industrial computer running the connectivity server software, while the other end communicates with controllers such as the AC 400/AC 800M series through MasterBus 300.
Function & Features
- Connection to the Connectivity Server: The ABB PU410 supports single or dual-redundant point-to-point Ethernet connections (100Mbit/s, full duplex) through two RJ-45 ports (PC1, PC2).
- Connection to the Field Control Network: The ABB PU410 connects to the MasterBus 300/300E or eDCN network (10Mbit/s, half duplex) through two RJ-45 ports (MB300/eDCN 1, 2).
- Unified Logical View: In software (such as Plant Explorer), both the ABB PU410 and the card-based RTA (such as PU515A) are recognized as "RTA Board."
Specifications
| Parameter | Description |
|---|---|
| Model Number | ABB PU410 |
| Part Number | 3BSE056478R1 |
| Device Type | Standalone Remote Terminal Access Unit |
| Cooling Method | Built-in heat dissipation fan with status monitoring |
| Other Communication Ports |
|
| Dimensions (H x W x D) | 45 * 443 *243 mm |
| Net Weight | 3.2 kg |
FAQ
Q: What is the difference between the PU410 and another common PU515A RTA board?
A: The main difference lies in their physical form. The PU410 is an independent box unit, with its own power supply, fan, and enclosure. The PU515A is a card-based board that needs to be inserted into a specific industrial PC or the backplane of a chassis.
Q: What is the purpose of the SERVICE port on the PU410?
A: The SERVICE port is a dedicated maintenance interface.
Q: What could be the cause if the red "FAULT" light on the front or back of the PU410 is on? What should be done?
A: A constant red fault light typically indicates a malfunction of the cooling fan.
Troubleshooting steps:
- After safely powering off, check and clean the fan and ventilation openings for dust.
- If the issue persists after cleaning, it may be necessary to replace the fan module or the entire device.
- After troubleshooting, a power reset of the PU410 is usually required for the fault light to turn off.
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
