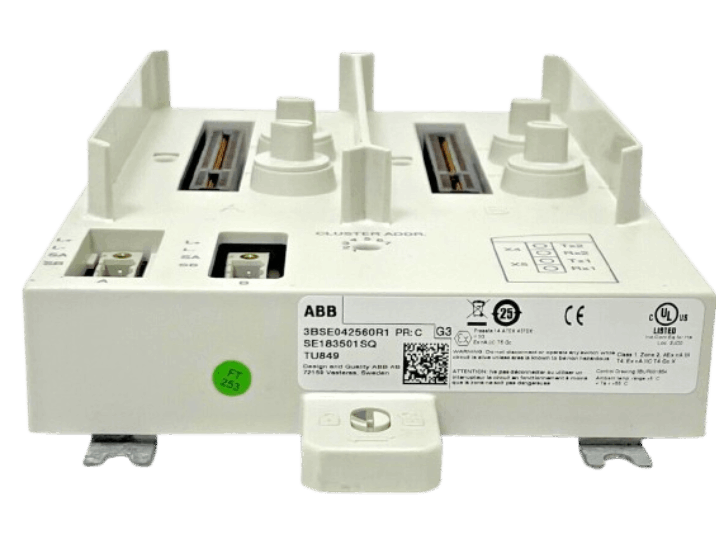

ABB TU849 3BSE042560R1 Module Terminal Unit
Item Number: TU849 3BSE042560R1
Brand: ABB
Lead Time: In stock
Description:Module Termination Unit
Payment: T/T
Product Description
ABB TU8493BSE042560R1 Module Terminal Unit (MTU) is a device for redundant configuration of TB840/TB840A optical module bus modem. It is used to connect TB840/TB840A optical module bus modem. As a passive device, it provides dual power distribution, mechanical coding to prevent mis-insertion and rail mounting functions.
Function & Features
- Dual power connection: TU849 has dual power connection ports, which can power two modems separately.
- Cluster address setting: TU849 can easily set the cluster address through a rotary switch, with an address range of 1 to 7, which can be identified and managed in the system.
- Anti-wrong insertion design: TU849 uses a mechanical key configuration to prevent the insertion of the wrong type of module.
- Mechanical coding: TU849 has 4 adjustable key positions (6 gears/piece, a total of 36 combinations).
Specifications
|
Parameter |
Specification |
|
Model |
TU849 |
|
Part Number |
3BSE042560R1 |
|
ModuleBus current distribution |
Maximum 5 V 1.5 A; 24 V 1.5 A |
|
Mechanical Keys |
36 different combinations |
|
Acceptable wire sizes |
Solid: 0.2 - 2.5 mm²; Stranded: 0.2 - 2.5 mm², 24 - 12 AWG; Recommended torque: 0.5 Nm |
|
Rated insulation voltage |
50 V |
|
Dialectic test voltage |
500 V a.c. |
|
Power dissipation |
2.5 W |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
