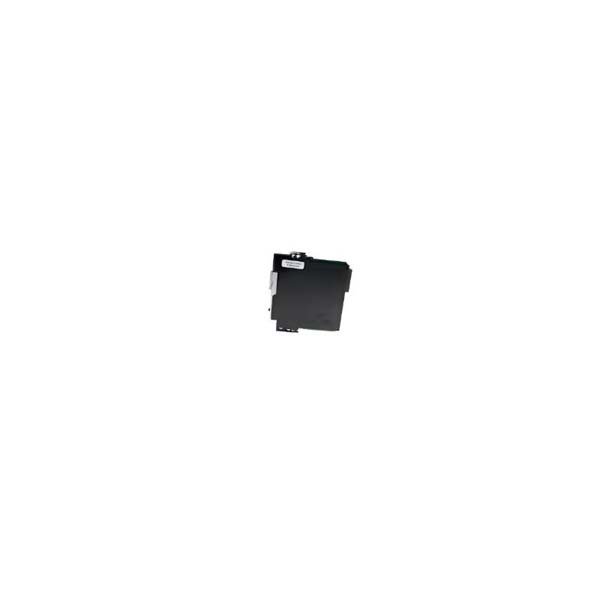

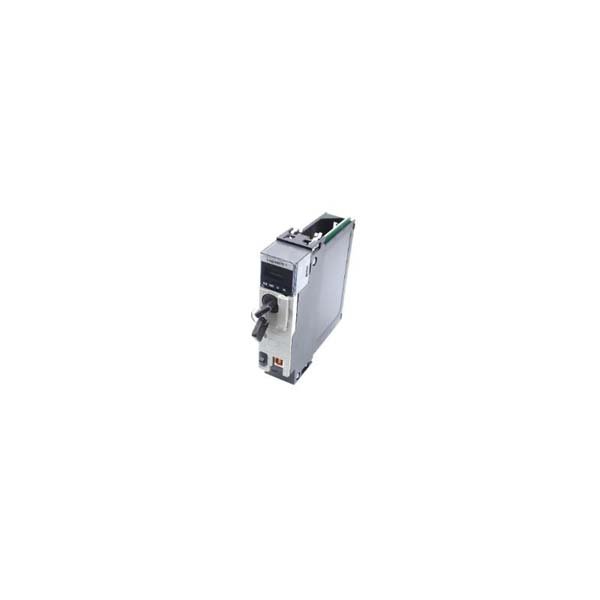

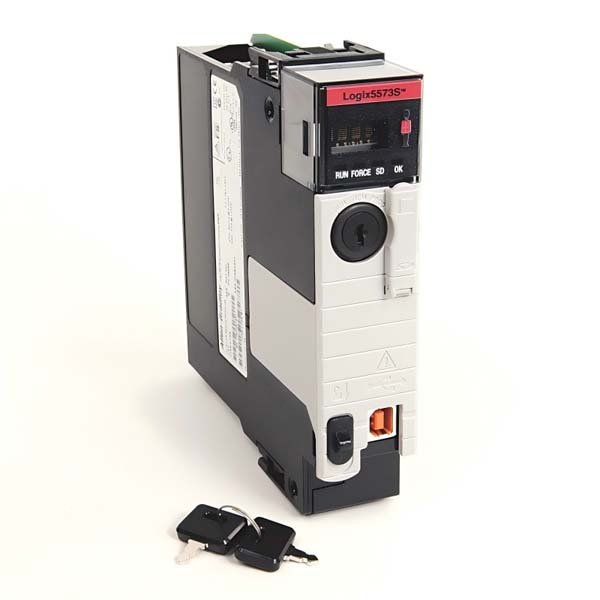

Allen-Bradley 1756-L73 ControlLogix Controller Module

The Allen-Bradley 1756-L73 is a high-performance controller from the ControlLogix® 5570 series. It provides 8 MB of user memory, supports large I/O capacities, and is designed for complex automation systems that demand speed, scalability, and reliable communication. The controller is ideal for both discrete and process control environments, offering superior flexibility and integration with a wide range of industrial networks.

It fits directly into a 1756 series chassis and operates seamlessly with Rockwell Automation’s Studio 5000 or RSLogix 5000 software. With its modular architecture, the 1756-L73 simplifies system design, allowing engineers to build scalable control systems that can expand as needs evolve.

Product Parameters

Application Scenarios

The 1756-L73 controller is suitable for a wide range of automation and industrial control systems, including:

• Manufacturing plants — Centralized control of large-scale production lines and process systems.

• OEM machine builders — Modular control for machines requiring future expansion and multi-network integration.

• Process industries — Advanced process control with analog and digital I/O handling.

• Material handling systems — Coordinated motion control and communication between devices.

• Energy and utilities — SCADA, DCS, and substation automation with reliable real-time control.

• System upgrades — Migration path for users upgrading from older ControlLogix processors to higher performance controllers.

Advantages (Key Strengths)

• High Performance & Memory: 8 MB user memory enables management of complex automation processes and extensive I/O configurations.

• Scalability: Modular architecture supports easy expansion within the same chassis and network.

• Advanced Task Handling: Supports up to 32 tasks and 100 programs per task for superior multitasking capability.

• Network Integration: Compatible with major industrial protocols for seamless data exchange across systems.

• Modular Flexibility: Can be installed in any slot of the 1756 chassis, with interchangeable modules for communication and I/O.

• Reliable Design: Built to withstand harsh environments, with strong tolerance to vibration, temperature, and humidity.

• Ease of Maintenance: Supports USB connectivity for programming and firmware updates through Studio 5000 software.

• Long-term Compatibility: As part of the ControlLogix ecosystem, it ensures spare part availability and consistent support.

FAQ

1. Q: Can the 1756-L73 be used in a redundant controller configuration?

   A: Yes, the 1756-L73 supports full redundancy when used with matching modules and firmware.

2. Q: Is the USB port suitable for network communication?

   A: No, the USB port is intended only for programming and firmware updates, not for permanent or remote communication.

3. Q: Can I mix older and newer I/O modules with this controller?

   A: Yes, as long as the modules are compatible with the ControlLogix backplane and firmware versions are properly aligned.

4. Q: How many tasks and programs are supported?

   A: The controller supports up to 32 tasks and 100 programs per task, ideal for complex control strategies.

5. Q: Is the 8 MB memory expandable?

   A: No, the memory is fixed, but SD cards or external data storage modules can be used for logging and backup.

6. Q: What is the maximum I/O capacity?

   A: The controller supports up to 128,000 digital and 4,000 analog I/O points depending on system design.

7. Q: Does the controller include an Ethernet port?

   A: No, Ethernet connectivity is provided through a separate 1756-EN series communication module.

8. Q: What type of power supply is needed?

   A: The controller requires a 1756-series power supply capable of providing at least 800 mA at 5.1 V DC.

9. Q: Is this a safety-rated controller?

   A: No, the standard 1756-L73 is not safety-rated. Use the 1756-L73S (GuardLogix version) for safety applications.

10. Q: What are the environmental operation limits?

    A: Operating temperature: 0 °C–60 °C; storage: –40 °C–85 °C; humidity up to 95 % non-condensing.
