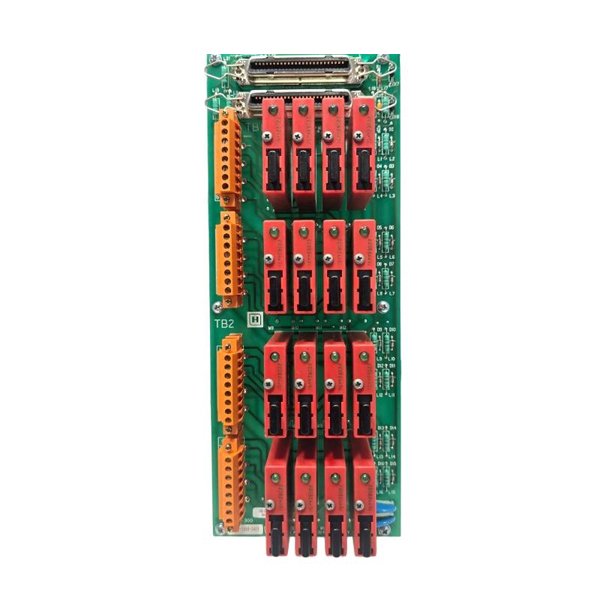

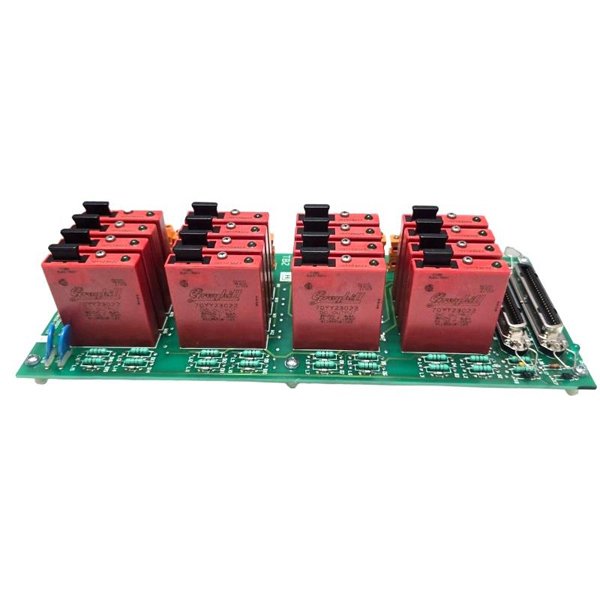

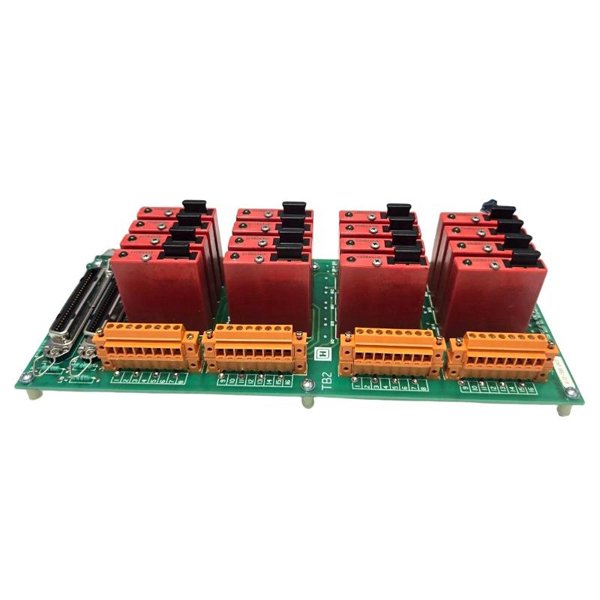

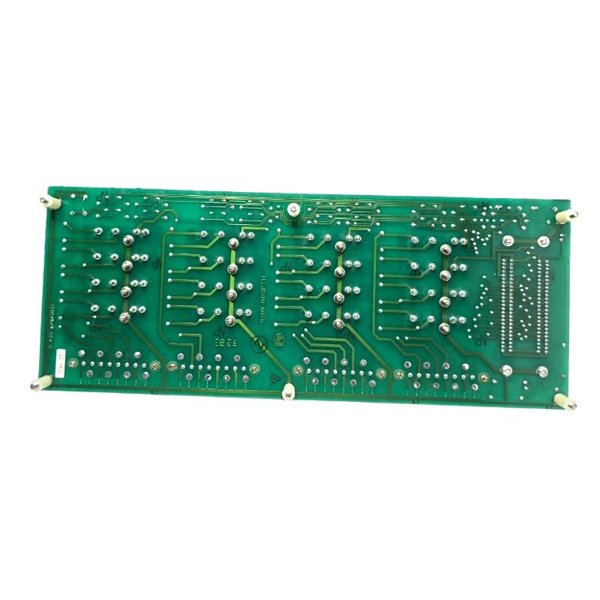

Honeywell MU-TDOD13 51304650-100 Digital Output Field Termination Assembly

Honeywell’s MU-TDOD13 51304650-100 Digital Output Field Termination Assembly is an advanced interface solution designed to connect digital output signals from Honeywell distributed control systems (DCS) to field devices in process automation environments. It ensures accurate and reliable transmission of discrete control signals to actuators, solenoid valves, relays, and other critical output devices.

Optimized for Honeywell’s Experion PKS and TDC 3000 platforms, this terminal assembly provides high-density digital output connectivity with integrated surge protection and electrical isolation. Designed to perform in harsh industrial conditions, the MU-TDOD13 ensures stable, noise-free signal transmission for critical control applications.

Product Specifications

Product Applications

• Distributed Control Systems (DCS): Provides digital output termination between control modules and field devices.

• Process Automation: Drives discrete control signals for actuators, solenoids, and motor starters.

• Safety Instrumented Systems (SIS): Ensures secure and reliable operation of emergency shutdown devices.

• Power Generation: Controls breakers, valves, and auxiliary turbine equipment.

• Oil & Gas: Interfaces with pumps, safety relays, and pipeline automation systems.

• Chemical & Pharmaceutical: Supports batch processing systems requiring precise digital outputs.

• Industrial Manufacturing: Powers production line actuators, conveyors, and packaging machinery.

Product Advantages

• High-Density Output: 32 channels in a single assembly to optimize panel space.

• Integrated Surge Protection: Protects downstream devices from voltage transients and spikes.

• Reliable Isolation: Prevents cross-channel interference and enhances safety.

• LED Diagnostics: Provides real-time channel status for efficient troubleshooting.

• Honeywell System Compatibility: Fully optimized for Experion PKS and TDC 3000 controllers.

• Industrial Durability: Designed for high-vibration, high-temperature environments.

• Ease of Installation: Plug-in terminal blocks simplify wiring and reduce setup time.

• Long-Term Reliability: Rugged construction reduces maintenance requirements.

FAQ

1. How many digital output channels does the MU-TDOD13 provide?

   It provides 32 isolated digital output channels for high-density applications.

2. What type of isolation is used in the MU-TDOD13?

   The assembly uses both electrical and optical isolation between channels and the control bus.

3. What is the maximum current rating per output channel?

   Each channel supports up to 0.5 A for driving field devices.

4. Does the MU-TDOD13 include built-in surge protection?

   Yes, it has integrated transient voltage suppression to protect against spikes.

5. Is the MU-TDOD13 compatible with redundant DCS architectures?

   Yes, it can be used in redundant configurations with compatible Honeywell controllers.

6. What is the nominal output voltage of this terminal assembly?

   The standard output voltage is 24 VDC, depending on the field wiring configuration.

7. Does the MU-TDOD13 provide channel diagnostics?

   Yes, LED indicators show the real-time status of each output channel.

8. What type of connector interface does this module use?

   It uses plug-in terminal blocks to simplify installation and maintenance.

9. Does the MU-TDOD13 comply with industrial EMC standards?

   Yes, it complies with EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions).

10. What grounding method is recommended for this component?

    A dedicated shield ground is recommended to ensure EMI suppression and system stability.
