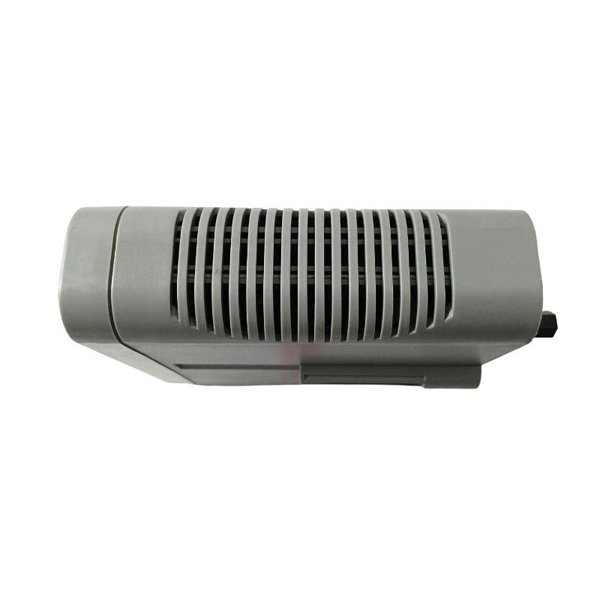

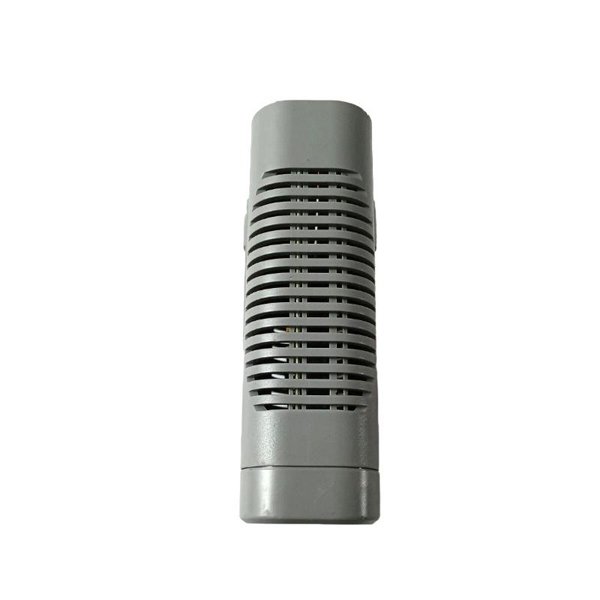

Honeywell FS-SMSB-1534D-N Programmable Logic Controller Module

The Honeywell FS-SMSB-1534D-N is a high-performance Programmable Logic Controller (PLC) module designed for critical industrial automation and safety applications. This module serves as the main processing unit for Honeywell control systems, executing programmable logic, monitoring input/output devices, and ensuring system integrity.

With advanced processing capabilities and deterministic response times, the FS-SMSB-1534D-N allows engineers to implement complex control strategies while maintaining high reliability in mission-critical environments. Its robust communication interfaces enable integration with other Honeywell system modules, field devices, and remote I/O units.

Product Specifications

Product Applications

• Industrial Automation: Executes process control logic in manufacturing and production plants.

• Oil & Gas Industry: Manages safety and control functions in refineries, pipelines, and offshore platforms.

• Power Generation: Controls turbine and generator systems, including auxiliary processes.

• Chemical Processing: Provides high-reliability logic control for hazardous chemical operations.

• Pharmaceutical Manufacturing: Ensures deterministic control for cleanroom and batch processes.

• Factory Automation: Integrates with distributed I/O networks for real-time machine control.

Product Advantages

• High-Speed Processing: Executes complex logic rapidly for real-time control applications.

• Redundant Architecture: Supports hot-standby configurations for system continuity.

• Scalable I/O Integration: Compatible with multiple Honeywell digital and analog I/O modules.

• Robust Diagnostics: Includes built-in self-tests, LED indicators, and fault reporting.

• Flexible Programming: Uses Honeywell’s Control Programming Environment (CPE) for customization.

• Reliable in Harsh Environments: Wide operating temperature and humidity range.

• Energy Efficient: Low power consumption for sustained operation.

FAQ

1. What type of processor does the FS-SMSB-1534D-N use?

   It features a high-speed industrial-grade CPU optimized for deterministic process control.

2. Can this PLC support redundant configurations?

   Yes, it supports hot-standby redundant PLC architectures for continuous operation.

3. What programming environment is compatible with this module?

   It is programmed using Honeywell’s Control Programming Environment (CPE).

4. Which communication interfaces are available?

   Includes high-speed serial, Ethernet, and RUSIO communication links.

5. Is it compatible with Honeywell I/O modules?

   Yes, it can interface with both digital and analog Honeywell I/O modules.

6. What diagnostics are available on the module?

   Built-in self-test routines, LED status indicators, and fault reporting are included.

7. What power supply is required for operation?

   It operates on a nominal 24 V DC power supply.

8. Can the module operate in high-humidity environments?

   Yes, it is rated for 5% to 95% non-condensing humidity.

9. Does the PLC support complex logic execution?

   Yes, it is designed to handle multi-level, high-speed process control logic.

10. Is the module suitable for safety-critical systems?

    Yes, it is designed to meet industrial safety and redundancy standards.
