EC063 921-069-000-701 Cable Assembly
Item Number: EC063 921-069-000-701
Brand:Meggitt
Lead Time: In stock
Description: Cable Assembly
Payment: T/T
Product Description

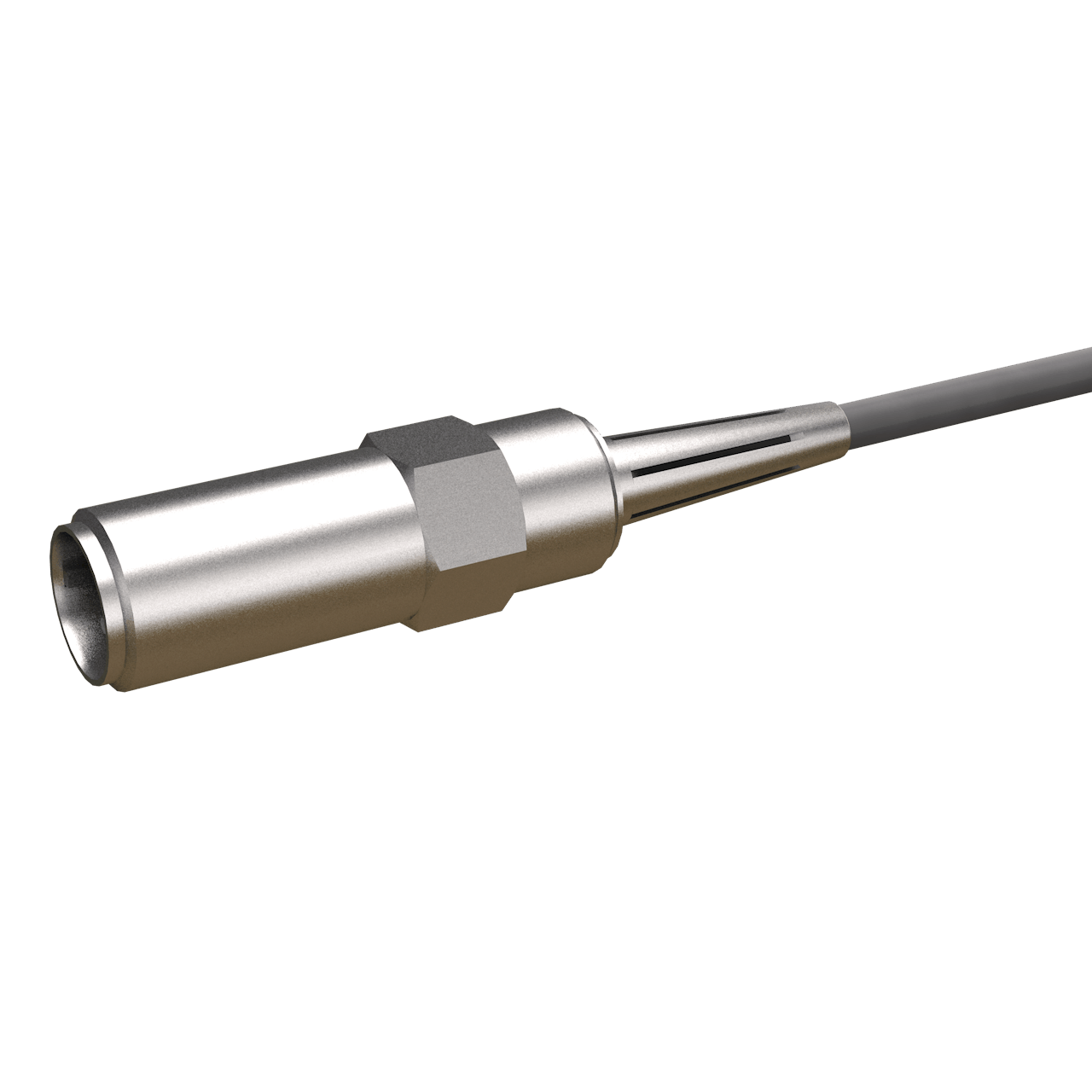

The EC063 921-069-000-701 cable assembly is a cable assembly used with the CA134 vibration sensor (accelerometer using an external signal conditioner). It provides a connection for the CA134 vibration system and ensures signal transmission between the sensor and external equipment.
Function & Features
- Cable type: EC063 921-069-000-701 uses K258 mineral insulated (MI) cable, which is low-noise and high-temperature resistant (Ø3.2 mm), allowing high-fidelity transmission of vibration signals.
- Shell material: EC063 921-069-000-701 outer sheath is INCONEL® alloy 600.

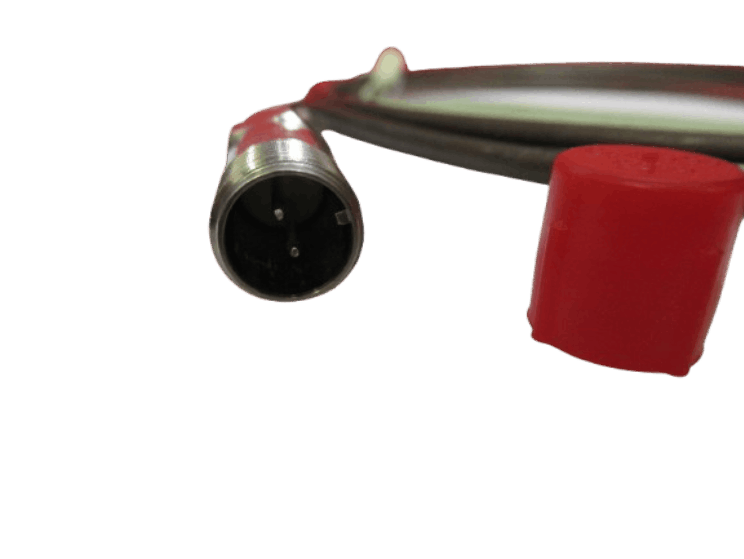

- Connection method: EC063 921-069-000-701 uses threaded connectors at both ends (VM - 7/16″ - 27UNS - 2B high temperature type and VM - 7/16″ - 27UNS - 2A high temperature type), the connection is stable, and it is a 2-wire system, and the shielding layer is connected to the connector.
Specifications
|
Parameter |
Details |
|
Model |
EC063 921-069-000-701 |
|
Compatible Sensor |
CA134 Vibration Sensor (requires external signal conditioner) |
|
Cable Type |
K258 Mineral-Insulated (MI) Low-Noise High-Temperature Cable |
|
Cable Diameter |
Ø3.2 mm |
|
Sheath Material |
INCONEL® Alloy 600 |
|
Connector Type |
High-Temperature Threaded Connector (VM-7/16″-27UNS-2B to VM-7/16″-27UNS-2A) |
|
Wire Configuration |
Twisted Pair + Shield (shield connected to connectors) |
|
Minimum Bend Radius |
5× cable diameter (during installation) |
|
Vibration Resistance |
50 g (peak, 10-2000 Hz) |
FAQ
Q: What is the brand?
A:Spare
Q: What is the type?
A:Cable Assembly
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
