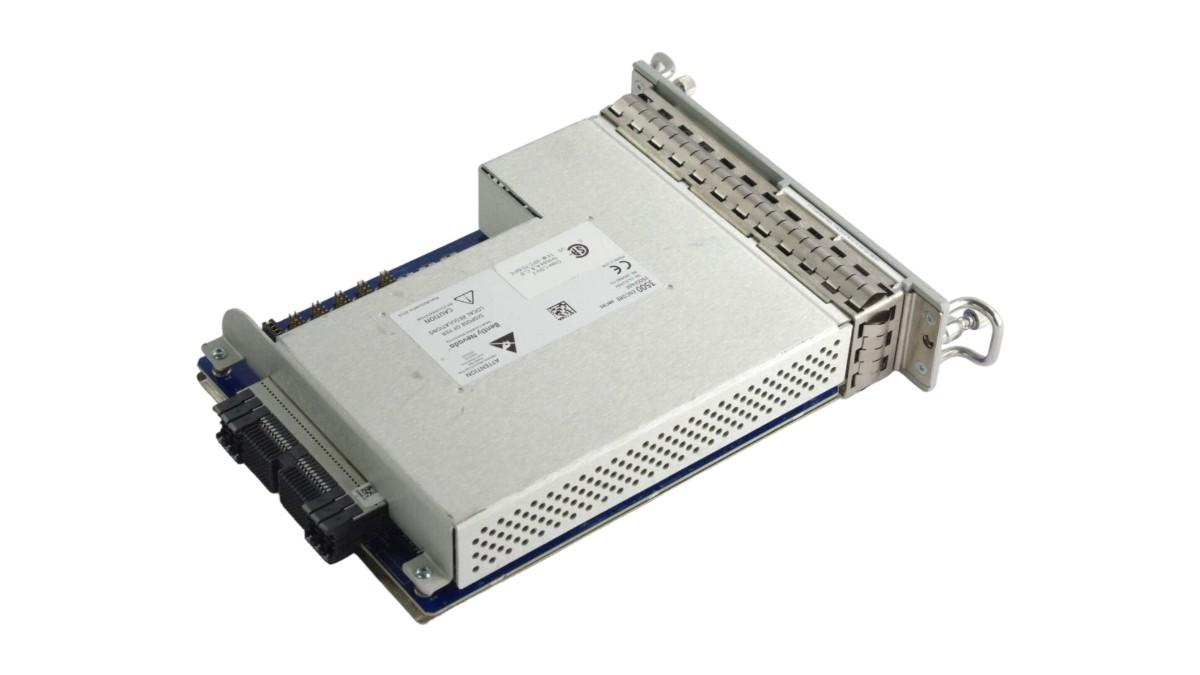

Bently Nevada 3500/45E Position Monitor
Item Number: 3500/45E
Brand:Bently Nevada
Lead Time: in stock
Description:Position Monitor
Payment: T/T
Product Description
Bently Nevada 3500/45E is a 4-channel position monitor. This monitor can receive input signals from proximity sensors, rotary position transducers (RPTs), AC/DC linear variable differential transformers (AC/DC LVDTs, where AC LVDTs are only supported by the Encore 1.0 version of the 3300 rack upgrade), and rotary potentiometers. The 3500/45E processes these input signals to measure various position-type parameters and compare them with user-programmable alarm thresholds.
Specification
| Parameter | Details |
|---|---|
| Model Number | 3500/45E |
| Rotary Potentiometer Valve Position | 41 mV/degree rotation. |
| Front Panel LEDs - OK LED | Indicates when the 3500/45E is operating properly. |
| Front Panel LEDs - DANGER LED | Indicates the 3500/45E has detected a danger condition and is driving the danger relay. |
| AC LVDT | 2.3 V rms 3400 Hz sine wave. |
| Rotary Potentiometer | -14.68 Vdc. |
| Dimensions (Height × Width × Depth) | 228mm*50mm *289mm |
| Weight | 1.27kg |
Function & Features
- Signal Conditioning and Measurement:The 3500/45E processes the input signals and outputs position-type parameters such as axial position and differential expansion, and can also generate "static values" for alarm determination.
- Tiered Alarm Settings:The 3500/45E can configure Alert thresholds for each activated "static value," and can also set Danger thresholds for any two static values.
- Efficiency Analysis:The 3500/45E correlates valve position data with other process parameters (such as steam temperature and pressure) to analyze and evaluate the overall operating efficiency of the turbine.
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
