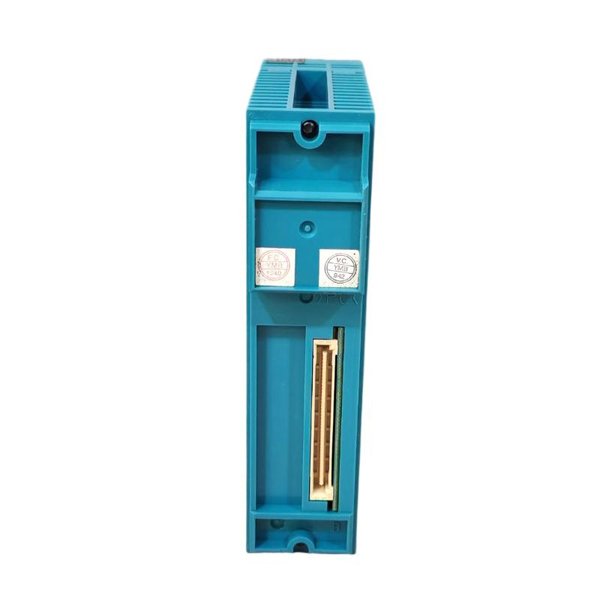

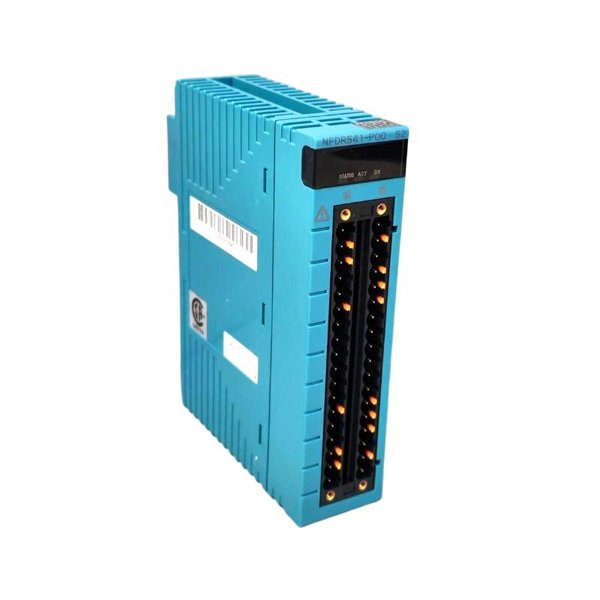

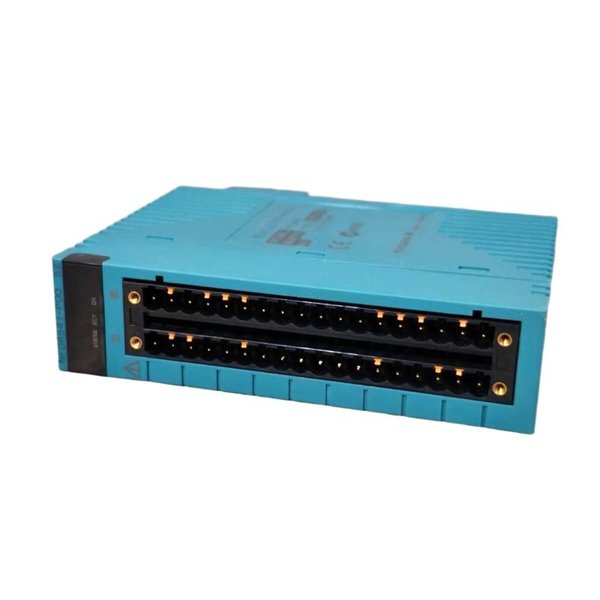

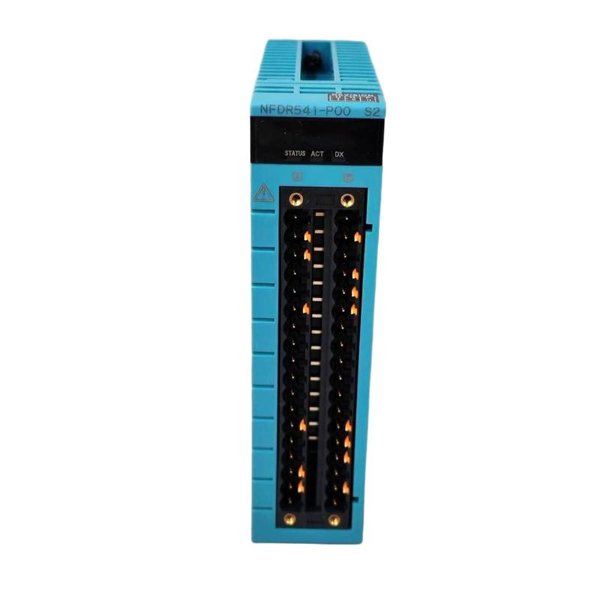

Yokogawa NFDR541-T Relay Output Module

The Yokogawa NFDR541-T Relay Output Module is a robust and reliable module designed for industrial automation systems, particularly within Yokogawa’s control platforms. It provides relay-based output switching that ensures isolation between the control system and field devices. This module is typically used to drive actuators, solenoids, relays, and alarms, making it suitable for critical control applications in industries such as power generation, petrochemical, oil & gas, water treatment, and manufacturing.

Technical Specifications

Product Applications

• Driving external relays, contactors, and solenoid valves.

• Controlling alarms, indicators, and status lamps.

• Switching AC or DC loads with reliable isolation.

• Power plant turbine and boiler control systems.

• Oil & gas safety shutdown circuits.

• Petrochemical and chemical batch control processes.

• Water and wastewater treatment plant automation.

Product Advantages

• High Reliability: Built with high-quality relay contacts for long operational service.

• Strong Isolation: Electrical isolation between control logic and field wiring ensures protection.

• Versatile Control: Capable of switching both DC and AC loads.

• Seamless Integration: Fully compatible with Yokogawa DCS systems.

• Fail-Safe Design: Relay modules ensure predictable behavior in the event of a system fault.

• Compact Structure: Slim module design saves space in control cabinets.

• Ease of Maintenance: Simple module replacement without rewiring.

FAQ

Q1: What type of loads can the NFDR541-T safely switch?

A1: It can switch resistive, inductive, and light capacitive loads, supporting up to 2A at 24 VDC or 250 VAC.

Q2: How is electrical isolation achieved in this module?

A2: Isolation is provided through relay contacts and opto-isolators, preventing control logic interference.

Q3: What is the typical switching response time?

A3: The relay switching response is around 10 ms, suitable for most control and interlock applications.

Q4: Can the NFDR541-T be used in safety instrumented systems (SIS)?

A4: Yes, it can be used as an output interface, provided the overall SIS design complies with SIL requirements.

Q5: How does the module protect against back-EMF from inductive loads?

A5: The module requires external flyback diodes or surge suppressors to handle inductive kickback.

Q6: What is the maximum number of modules that can be mounted in a single rack?

A6: This depends on the rack’s power and slot configuration; typically, up to 16 modules can be supported.

Q7: Is hot-swapping supported by the NFDR541-T?

A7: Hot-swapping is not recommended due to relay circuit design; power down before replacement is advised.

Q8: What diagnostic functions are available?

A8: The module supports channel health monitoring and error indication through system diagnostics.

Q9: Can the relay outputs handle mixed AC and DC loads?

A9: Yes, but channels should be wired separately, and proper load segregation must be observed.

Q10: What maintenance is required for the relay module?

A10: Periodic inspection for contact wear, load conditions, and module connection integrity is recommended.
