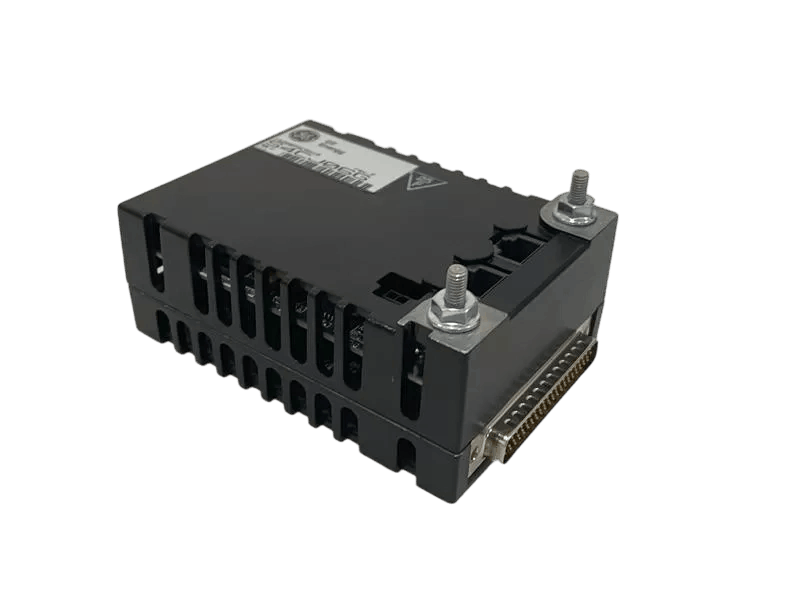

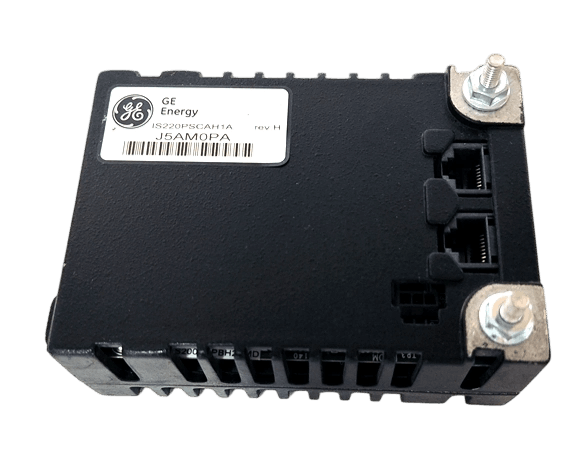

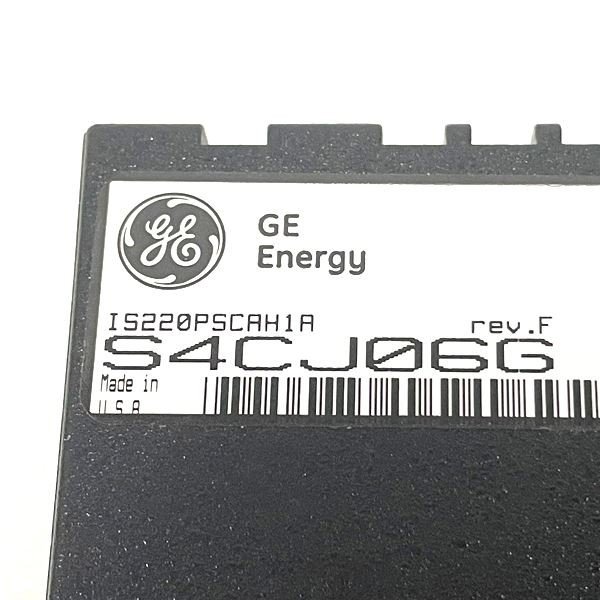

General Electric IS220PSCAH1A Serial Modbus Communication I/O Module
Item Number:IS220PSCAH1A
Brand: GE
Lead Time: In stock
Description: Serial Modbus Communication I/O Module
Payment: T/T
Product Description
GE IS220PSCAH1A Mark Vie series Serial Modbus Communication I/O Module acts as a gateway between the controller and external devices supporting the Modbus RTU protocol. It allows GE turbine control systems to exchange data with third-party devices.
It can be used to communicate with third-party controllers for auxiliary equipment such as boiler feedwater pumps, condensers, and excitation systems. Alternatively, it can connect to gas analyzers, vibration monitoring systems, and valve positioners in compressor trains.
Technical Data
| Model Number | IS220PSCAH1A |
| System | Mark Vie |
| Related models | IS220PSCAH1B |
| Uplink network port |
RJ45 port
|
| Downlink serial port | Six independent serial communication channels |
| Network: | 2 x RJ45 |
|
Dimension |
-Length:178.98mm -Height:105.36mm -Depth:178.33 mm |
|
Weight |
0.43kg |
Function & Features
- Communication Bridging: The GE IS220PSCAH1A connects to the high-speed IONet network via dual Ethernet ports on one end and to various devices via six independent serial channels on the other.
- Dynamic IP Address Acquisition: The GE IS220PSCAH1A automatically requests a network address using Dynamic Host Configuration Protocol (DHCP) combined with the terminal block's unique identification.
- Hot-Switch: The GE IS220PSCAH1A's soft-start and current-limiting features allow direct plugging and unplugging of the power connector while the power is still on (without first disconnecting the mains).
FAQ
Q: What is the brand?
A: GE(General Electric)
Q: What is the type?
A: Serial Modbus Communication I/O Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
