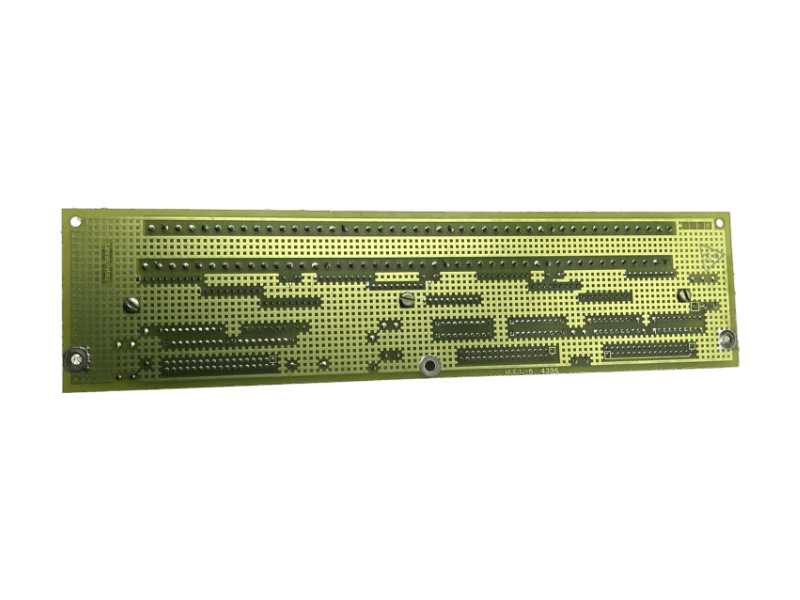

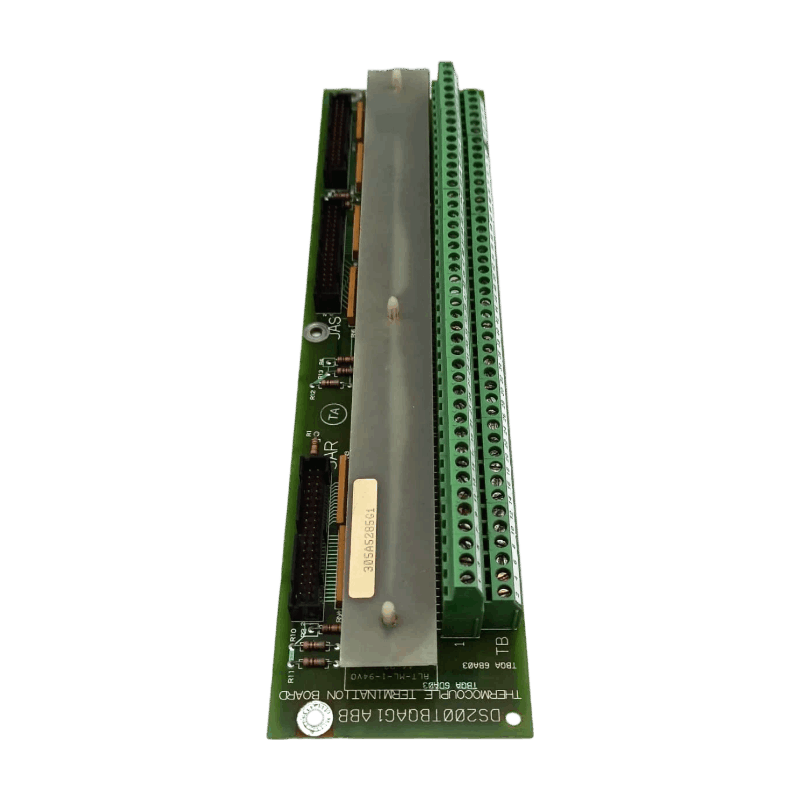

General Electric DS200TBQAG1A DS200TBQAG1ABB Thermocouple Termination Module
Item Number: DS200TBQAG1A DS200TBQAG1ABB
Brand:GE
Lead Time: In stock
Description:Thermocouple Termination Module
Payment: T/T
Product Description
GE DS200TBQAG1A (DS200TBQAG1ABB) is a Mark V series thermocouple termination module. This module does not directly process signals, but rather serves as a signal distribution hub, connecting and managing the numerous thermocouple signals from various locations within a gas turbine.
The module communicates with downstream boards via multiple dedicated connectors, each transmitting a strictly defined signal group and cold junction compensation signal.
Function & Features
- Thermocouple Signal Management: The DS200TBQAG1A (DS200TBQAG1ABB) provides physical terminal blocks for up to 45 (in the R1 rack) or 42 (in the R5 rack) thermocouple sensors.
- Signal Distribution: Instead of centrally processing all signals, the DS200TBQAG1A (DS200TBQAG1ABB) distributes aggregated thermocouple signals in groups to different signal processing boards.
- Cold Junction Compensation: The DS200TBQAG1A (DS200TBQAG1ABB) measures the temperature difference between the terminal and the wiring (cold junction) and features independent solid-state cold junction compensation circuitry for each group of 14 or 15 thermocouple signals.
Specifications
| Parameter | Description |
|---|---|
| Product Model | DS200TBQAG1A DS200TBQAG1ABB |
| Product Series | GE Mark V |
| Input Channel Quantity | - R1/R3 core: 45 channels (divided into 3 groups, 15 channels per group)- R5 core: 42 channels (divided into 3 groups, 14 channels per group) |
| Thermocouple Type | General type |
| Terminal Type | Screw clamp terminals |
| Length | 298.26mm |
| Width | 99.03mm |
| Weight | 508 g |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
