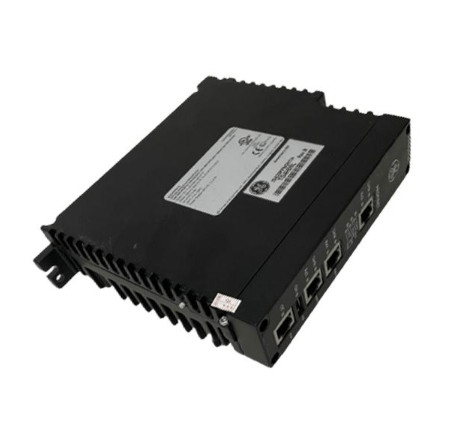

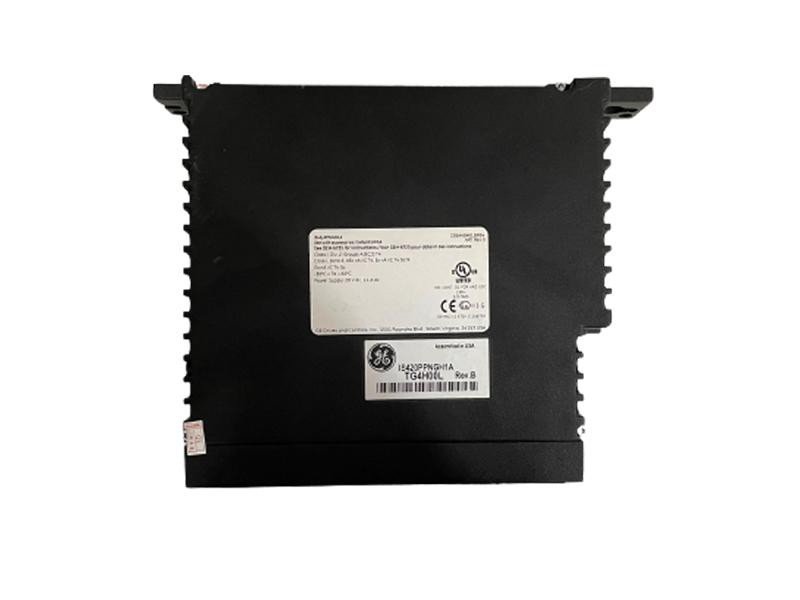

General Electric IS420PPNGH1A Profinet Controller Gateway Module

GE IS420PPNGH1A is a PROFINET gateway module for General Electric's Mark VIe series. It can connect the Mark VIe controller to a high-speed PROFINET LAN to communicate with PROFINET I/O devices. It can map the I/O of PROFINET slave devices to the Mark VIe controller on IONet. It can also add PROFINET I/O devices and smart sensors to a typical Mark VIe control system architecture through the ToolboxST application. It is an I/O controller that complies with the PROFINET RT Version 2.2 standard.

Fuctions & Features

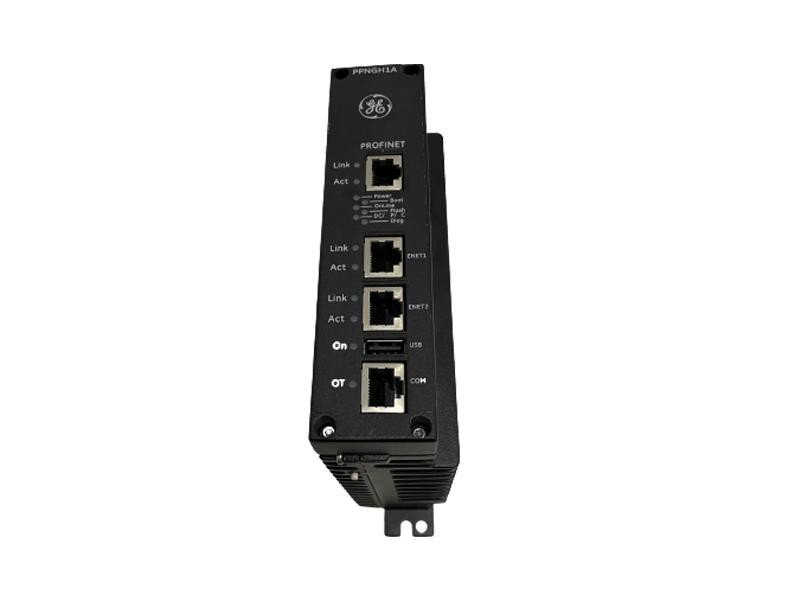

• Communication Ports: 1 RJ-45 shielded twisted pair 10/100 Mbps port for PROFINET communication, and 2 RJ-45 shielded twisted pair 10/100 Mbps ports for IONet communication (ENET1, ENET2).

• Built-in power supply: With built-in power supply, no additional power supply device is required.

• Jumper-free settings: No jumper settings are required, which reduces the configuration complexity and reduces the risk of failure caused by incorrect jumper settings.

• Flash memory is easy to update: Flash memory can be easily updated to facilitate system upgrades.

• Network topology: Supports star (connected to switches), line (directly connected to I/O devices) or mixed network topologies.

• Device configuration and data processing: PROFINET I/O devices can be configured to achieve cyclic exchange of inputs and outputs with PROFINET I/O devices, asynchronously with Mark VIe controller frames, and can display input and output values ​​and device diagnostic messages through the ToolboxST application.
