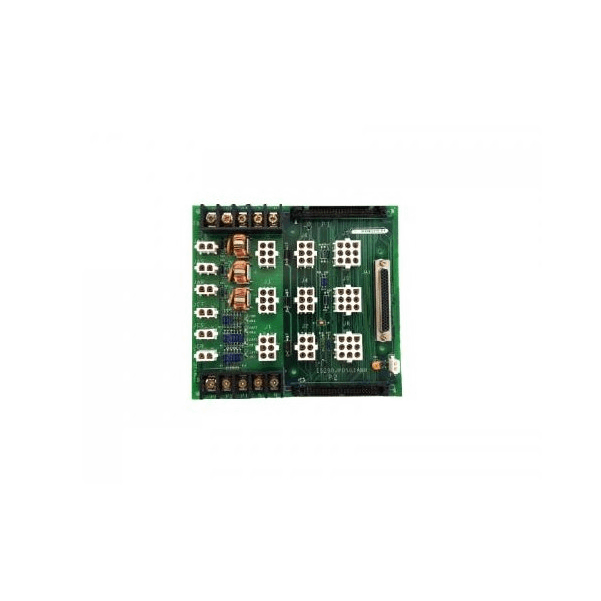

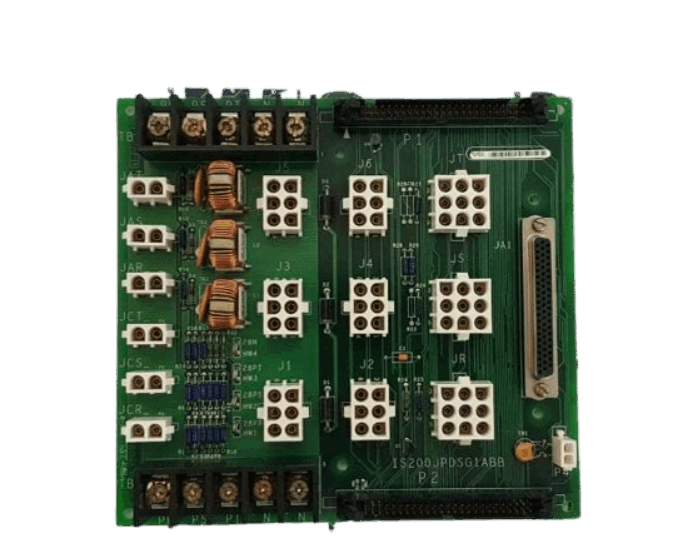

General Electric IS200JPDSG1A Power Distribution Accessories Card
Item Number: IS200JPDSG1A
Brand: GE
Lead Time: In stock
Description: Power Distribution Accessories Card
Payment: T/T
Product Description
GE IS200JPDSG1A is a Power Distribution Accessories card in the Mark VIe control system. It is designed for the power distribution system feedback I/O package IS220PPDAH1A (When used with the IS220PPDAH1A, the firmware version must match.). This module manages the power distribution system through 15 different plug connectors, branch circuit fuses, and output connectors.
Function & Features
Source Distribution Architecture:
- Input Power: IS200JPDSG1A supports 28V DC input from external AC/DC or DC/DC converters.
Multi-bus Configuration:
- Independent Three-bus Mode: R, S, T channels are independently powered (25A each, 75A common), and a single-channel failure does not affect other channels.
- Single-bus Mode: IS200JPDSG1A combines three buses into a single power supply through jumpers (TB1/TB2).
Fault Protection:
- Diode-OR circuit provides 28V backup power for PPDA.
Specifications
|
Item |
Details |
|
Model |
IS200JPDSG1A |
|
Single Bus Capacity |
25A (per R/S/T bus) |
|
Total Ground Capacity |
75A (shared by three buses) |
|
Main Power Input |
JR/JS/JT connectors (for R/S/T buses respectively) |
|
Feedback Signal Ports |
P1 (to PPDA I/O pack) / P2 (from other power boards) |
|
Compatible I/O Module |
IS220PPDAH1A (PPDA feedback pack) |
|
Weight |
Approx. 1.2kg (including bracket) |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Power Distribution Accessories Card
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
