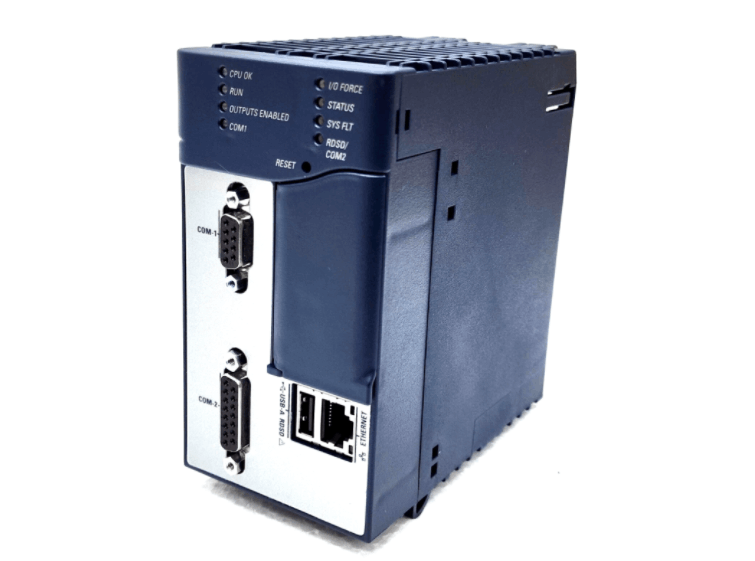

General Electric IC695CPE310 CPU Processor
Product Description
The IC695CPE310 is a CPU module in the GE Fanuc PACSystem RX3i series. It communicates with I/O modules and intelligent option modules via a dual-purpose backplane with PCI and serial capabilities. It features a 1.1 GHz Atom processor, 10 MB of memory, and a built-in Ethernet interface. It supports up to 512 program blocks, each with a maximum size of 128 KB.
Note: After upgrading to CPE310, RS-232 Pin 5 no longer provides 5V power supply.
Function & Features
- Hardware Requirements: The IC695CPE310 uses a 1.1 GHz Intel Atom processor (approximately three times faster than the 300 MHz Celeron processor in the previous generation C695CPU310).
- Programming Features: The IC695CPE310 offers tag-based programming, a reusable code library, and a test edit mode.
- Programming and Software: The IC695CPE310 supports languages such as Ladder Diagram, Structured Text, C, and Function Block Diagram.
- Installation: The IC695CPE310 can be placed in any pair of slots in the RX3i main controller chassis, avoiding the two highest-numbered slots.
Specifications
| Parameter | Details |
|---|---|
| Part Number | IC695CPE310 |
| Form Factor | Backplane |
| User Memory | 13MB |
| I/O | 32k Bits Discrete I/O, 32k Words for Analog I/O |
| Energy Pack | Included |
| Redundancy Support | Media Redundancy (MRP) with PNC001 |
| Ethernet Port | 3 - 2 port switch 10/100/1000 |
| Ethernet Protocols | SRTP Client/Server, Modbus TCP/IP, OPC UA, EGD, PROFINET, DNP3 Outstation, IEC - 61850 Client, IEC - 104 Server, HART passthrough |
| Serial Protocols | ASCII Serial, Modbus/RTU |
| Remote I/O Devices | 255 Simplex with PNC001 |
| USB Interface | 1x USB - A 2.0 |
